Product Description

deegee

IPN/005 Series

LED Status Signal

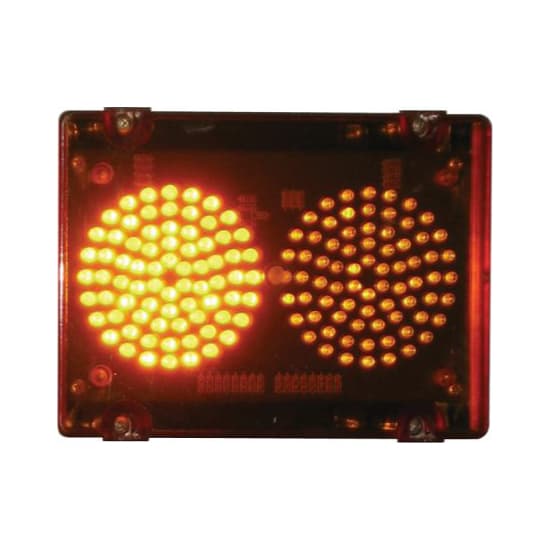

Pulsed LED Wig-Wag Signal

Description

  • 200mm x 150mm x 80mm
  • IPN/LED/005
  • IP65
  • Wig-Wag LED Indicator
  • 24Vdc, 115Vac and 230Vac models
  • Alternate and concurrent flashing modes
  • Typically 2 x single colour (e.g. amber/amber) or may be 1 of 2 different colours (e.g. red/white)

Available Lens Colours

Prose

Incorporating the latest light emitting diodes (LED) technology arranged in a high-density matrix, this product delivers a clear and persistent warning signal that ensures heightened safety.

The IPN/005 series offers both alternate (wig-wag) and concurrent flashing modes, with the added flexibility of choosing between two flash speeds: 40 flashes per minute (fpm) or 120 fpm.

Deegee provides standard models for 24Vdc, 115Vac, and 230Vac, all securely enclosed within IP65 UV-stabilized polycarbonate housings measuring 200x150x80mm. These enclosures guarantee protection against various environmental elements, ensuring long-lasting performance.

Deegee's single-color units, such as amber/amber, are equipped with colored LEDs and matching color lenses. For dual-color units, like red/white, they come fitted with colored LEDs and clear lenses. Standard color options include red/red and amber/amber, while other color choices and combinations are available, including red, amber, green, blue, or white, which can be customized through a special order.
