Product Description

deegee

IPN/006 Series

LED Status Signal

Pulsed LED "STOP" Signal

Description

  • 200mm x 150mm x 80mmm
  • IPN/LED/006
  • IP65
  • Clear and unambiguous signal
  • 24Vac/dc, 115Vac and 230Vac models
  • User selectable flashing or static operation
  • Red LEDs with clear lens

LED Colour

Prose

Utilizing the latest technology in light emitting diodes (LEDs) configured into a high-density matrix, this product is ideally suited for a wide variety of applications, including loading-bay signaling, shutter door status, on-site traffic management, dockside signaling, factory control, and more.

Units can be configured to operate at one of five preset intensity levels (100%, 50%, 25%, 10%, or 5%) using internal jumper links. Alternatively, the unit can be set to run at 100% with a single lower preset intensity level (50%, 25%, 10%, or 5%) selectable by an external control signal.

Deegee offers standard models for 24Vdc, 115Vac, and 230Vac, all housed in a durable IP65 UV-stabilized polycarbonate enclosure measuring 200x150x80mm, providing excellent protection against various environmental elements.

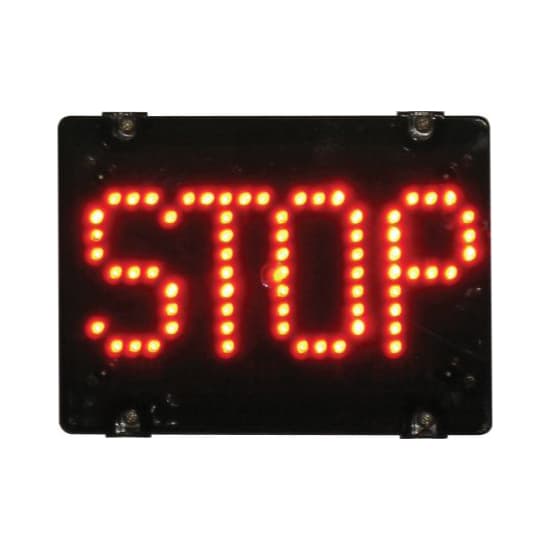

The standard unit features the word “STOP” in red; however, you can choose from a range of colors, including red, green, blue, or white, which are available through a special order.
