Product Description

deegee

IPN/016 Series

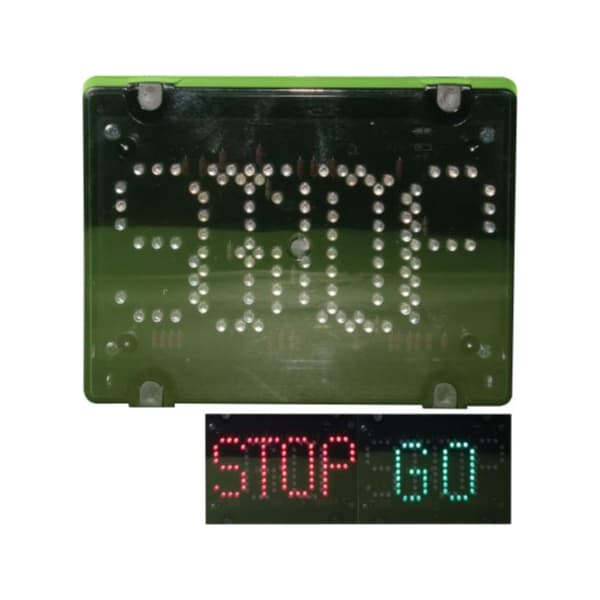

LED Status Signal

Static LED "STOP" / "GO" Signal

Description

  • 200mm x 150mm x 80mm
  • IPN/LED/016
  • IP65
  • Clear and unambiguous signal
  • 24Vac/dc, 115Vac and 230Vac models
  • Ideal for loading bay dock light applications
  • Function selection by applying power to relevant terminals
  • Red & green LEDs with clear lens

LED Colours

Prose

Utilizing the latest technology in light emitting diodes (LEDs) configured into a high-density matrix, this product is ideally suited for a wide variety of applications, including loading-bay signaling, shutter door status, on-site traffic management, dockside signaling, factory control, and more.

Units offer the flexibility to be set to one of five preset intensity levels (100%, 50%, 25%, 10%, or 5%) using internal jumper links. Alternatively, the unit can be configured to run at 100% with a single lower preset intensity level (50%, 25%, 10%, or 5%) selectable by an external control signal.

Deegee provides standard models for 24Vdc, 115Vac, and 230Vac, all securely enclosed within an IP65 UV-stabilized polycarbonate housing measuring 200x150x80mm, ensuring robust protection against various environmental elements.

The standard unit features the words “stop” and “go” in red and green, respectively; however, you can choose from a range of colors, including red, green, blue, or white, which are available through a special quotation or order.
