Product Description


IPN/020 Series

LED Status Signal

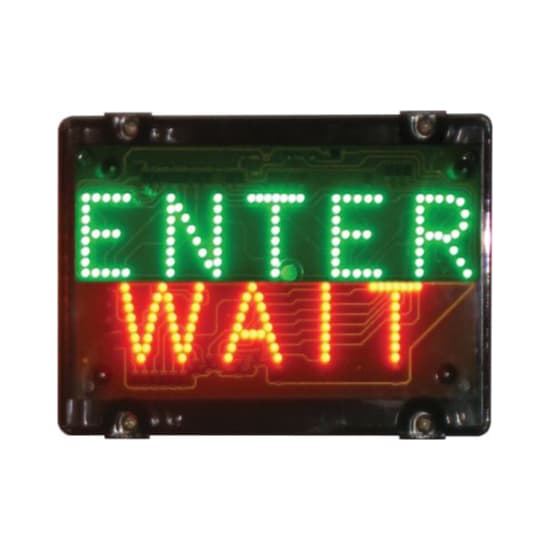

Static LED "WAIT" / "ENTER" Signal


  • 200mm x 150mm x 80mm
  • IPN/LED/020
  • IP65
  • Clear and unambiguous signal
  • 24Vac/dc, 115Vac and 230Vac models
  • Ideal for access to dangerous areas
  • Function selection by applying power to relevant terminals
  • Red & green LEDs with clear lens

LED Colours


Incorporating the latest technology in light emitting diodes (LEDs) configured into a high-density matrix, this product is ideally suited for a wide variety of applications, including Loading-bay signaling, shutter door status, on-site traffic management, dockside signaling, factory control, and more.

Units provide the flexibility to be set to one of five preset intensity levels (100%, 50%, 25%, 10%, or 5%) using internal jumper links. Alternatively, the unit can be configured to operate at 100% with a single lower preset intensity level (50%, 25%, 10%, or 5%) selectable by an external control signal.

Deegee offers standard models for 24Vdc, 115Vac, and 230Vac, all securely enclosed within an IP65 UV-stabilized polycarbonate housing measuring 200x150x80mm, ensuring reliable protection against various environmental elements.

The standard unit features the words “WAIT” and “ENTER” in red and green, respectively. However, you have the option to choose from a range of colors, including red, green, blue, or white, available through a special order.
