Product Description

deegee

PSD/LED Series

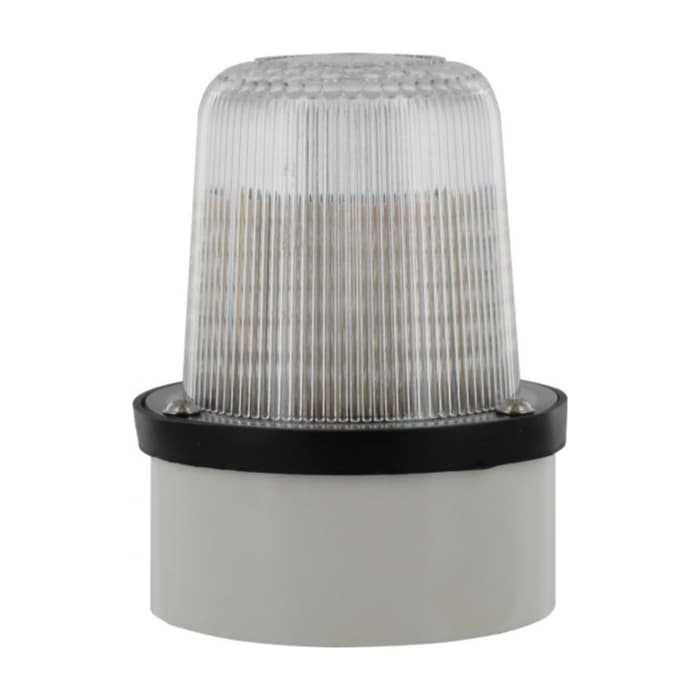

Pulsed LED Beacon

Multi-function Rotating/Pulsed/Static LED Beacon 102mm High x 79 Diameter

Description

  • Multi-function LED Beacon with 8 operating modes
  • IP65
  • Low current consumption
  • 12Vdc, 24Vdc and universal 115V-230V AC/DC models
  • Suitable for BESA box mounting
  • Base entry
Operating Modes

  • Static - non-flashing

  • Standard Pulse - 120fpm (2Hz)

  • Slow Pulse - 60fpm (1Hz)

  • Fast Pulse - 240fpm (4Hz)

  • Triple Flash - Three flash pulses repating twice/second

  • Quintuple (5) Flash - Five flash pulses repeating once/second

  • Strobe - 1 pulse per second (1Hz)

  • Revolving (Simulated Rotating) - 120rpm

Available Lens Colours

Downloads
