Product Description


E1 Mia

Wireless Radio Control

Industrial lifting and handling machinery and equipment handset.

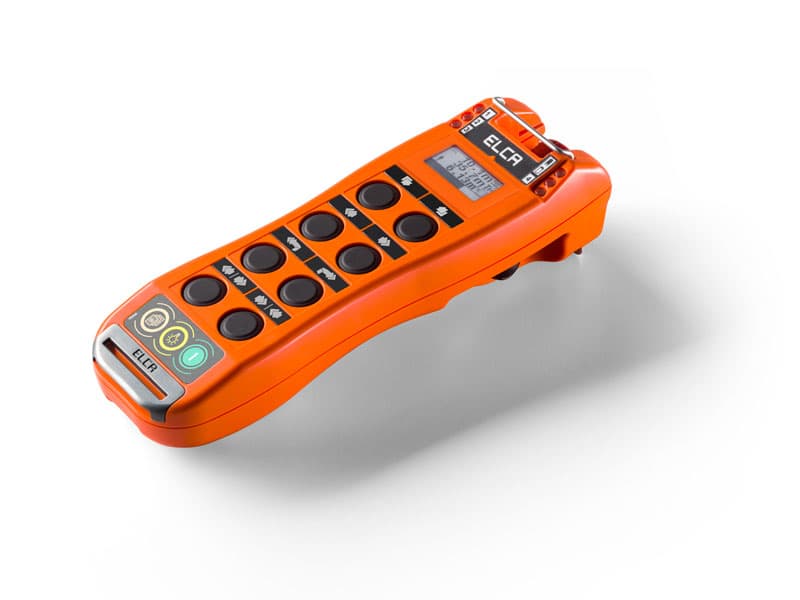

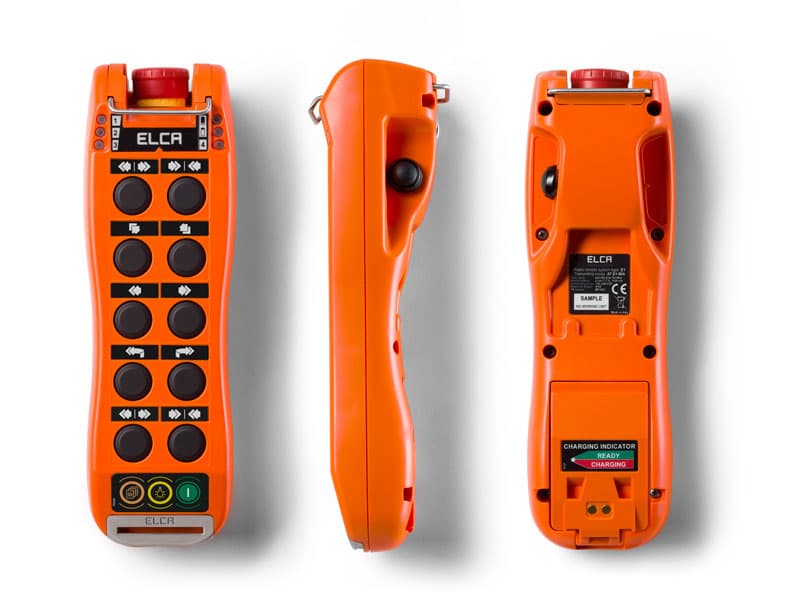

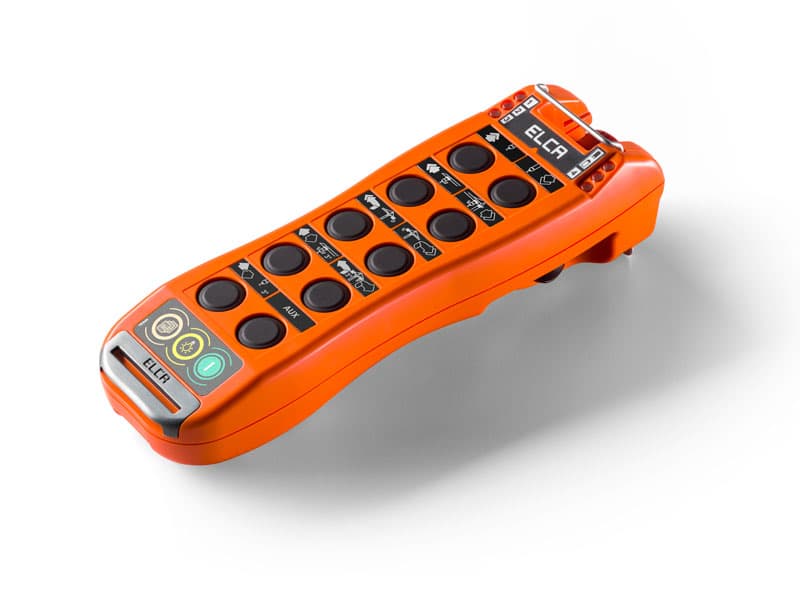

MIA radio handset designed for the use of industrial lifting and handling machinery and equipment.

  • Up to 23 on/off commands (2 single, 10 double step buttons, selector 1-0-1, Start and E-Stop (Pld) buttons, proportional potentiometer.
  • Compact, lightweight, ergonomic with low consumption electronics and Lithium battery, the MIA can provide up to 20 hours autonomy in continuous use (low power warning via bright LEDs and acoustic signals).

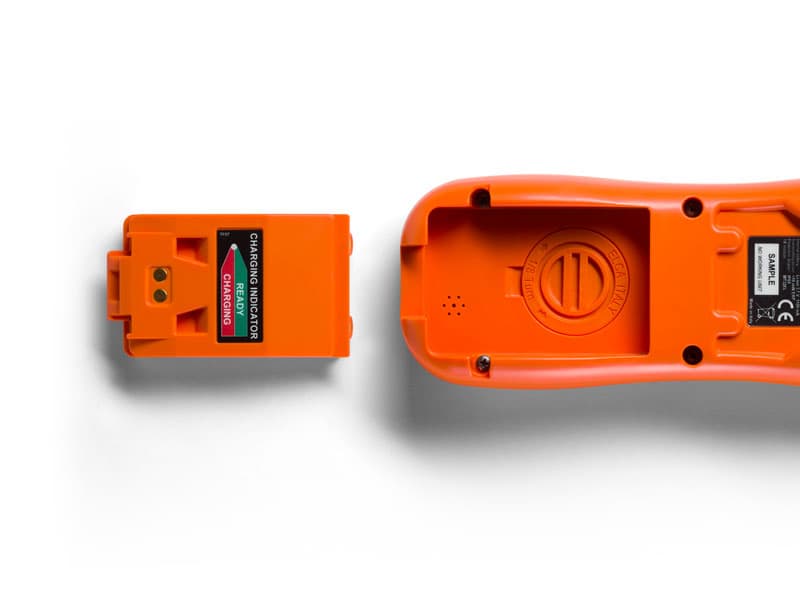

  • An innovative battery with integrated electronics is charged directly by power supply “ELCA-CLIP” and full recharge in 4 hours (15' sufficient for 3 working hours).
  • Optional cable with USB connection to external charger.
  • MIA handset is robust and resistant to harsh operating conditions (ABS casing, release valve, IP65 rating).
  • Protective cover available for extra protection (optional).
  • Bi-directional transmission allows the MIA transmitter to receive up to 4 input signals from external source of a machine wired directly to the receiver with each input represented by dedicated led indicators on the transmitter.
  • A MIA version with high definition display + 8 double step buttons is also available.
  • The transmitter is activated via an electronic activation key sequence with customizable code.
  • Automatic shutdown can be programmed at 2-5-10'.
  • When required, transmitting unit can be quickly replaced by transferring the unique coding key and settings; this is housed inside the battery compartment, protected by a waterproof closure.
  • Upon activation the MIA transmitter automatically selects the first free available frequency to have the best signal coverage, in all working environments.
  • The “Function” button is programmable: impulsive/latched commands, 1/2/1+2, “Master-Slave”, “Take-Release”, “Tandem”. The active selection is displayed on the top led indicators.

Excellence of MIA design has been recognized by the world prestigious IF Design Award.
