NEO100Wireless Lifting Hook
NEO100Wireless Lifting Hook

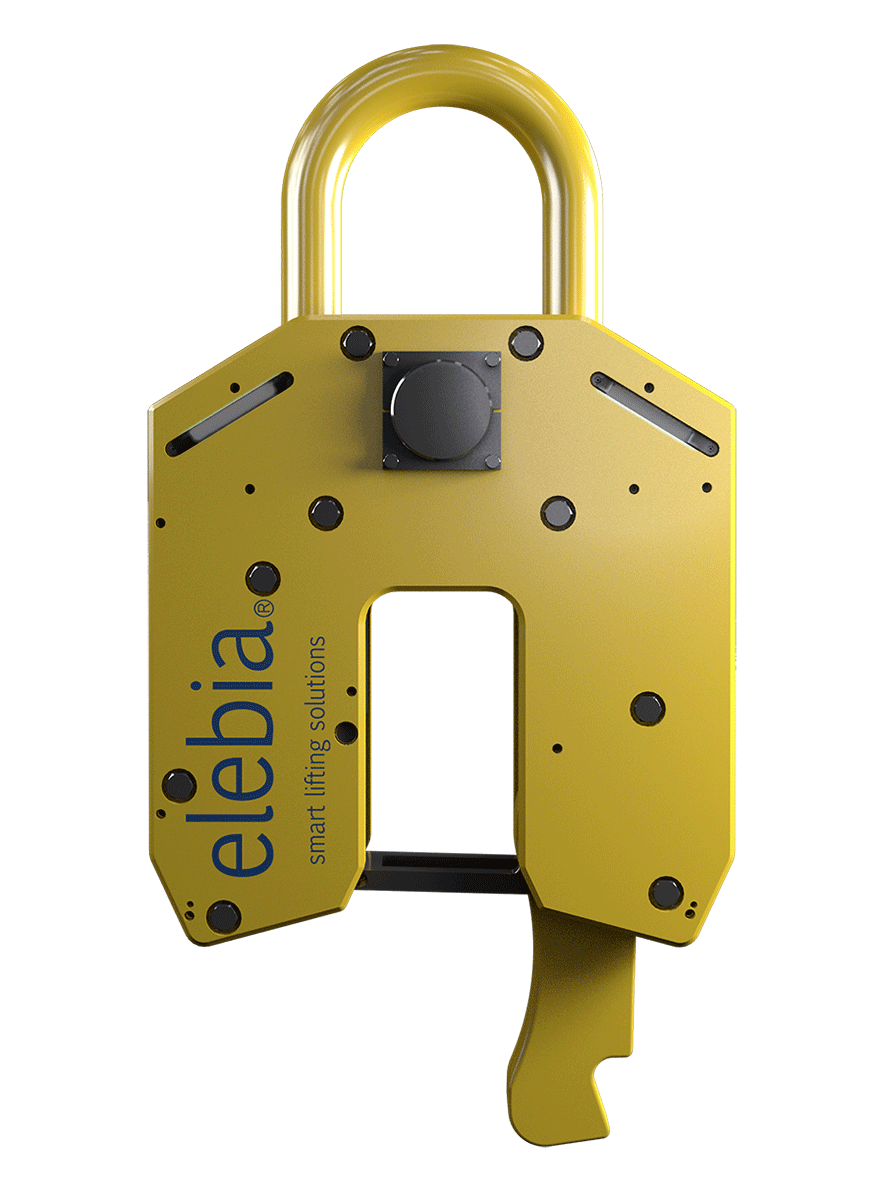

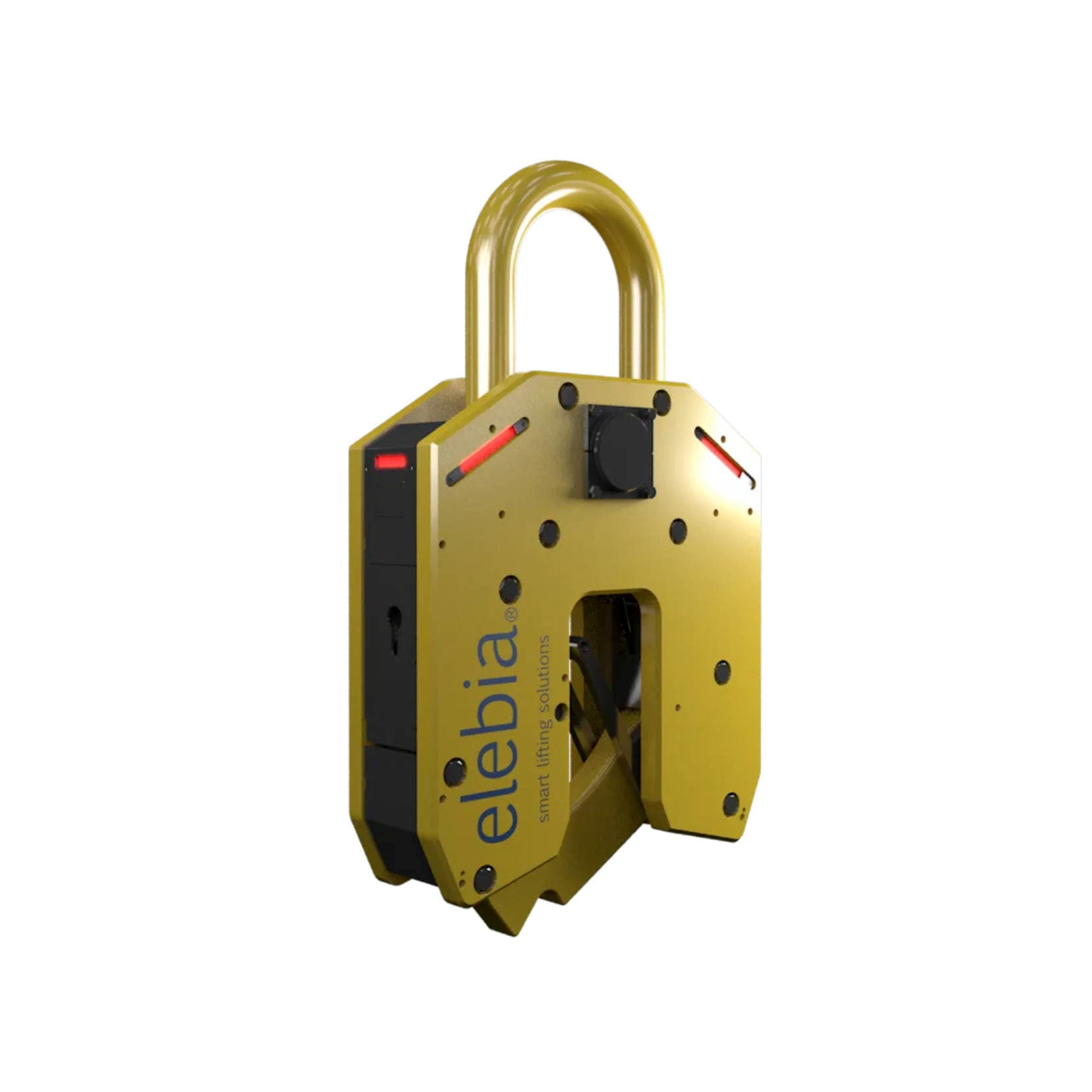

The NEO100 lifting hook is our newest solution for lifting and transporting any load, as well as for oversized lifting points of up to 180mm Ø. Capable of lifting up to 100.000 kgs. (220.462 lbs.), with a 4:1 safety factor and advanced safety and productivity features, this is our biggest hook yet.
- 100,000 kgs./220,462 lbs. lifting capacity
- Ideal for oversized lifting points of up to 180mm Ø
- Safety factor of 4:1
- Fail-safe Design: Impossible to drop a suspended load
- With load cell, LED Status Indicator, Laser Pointer and other safety and productivity features.
How Does It Work?

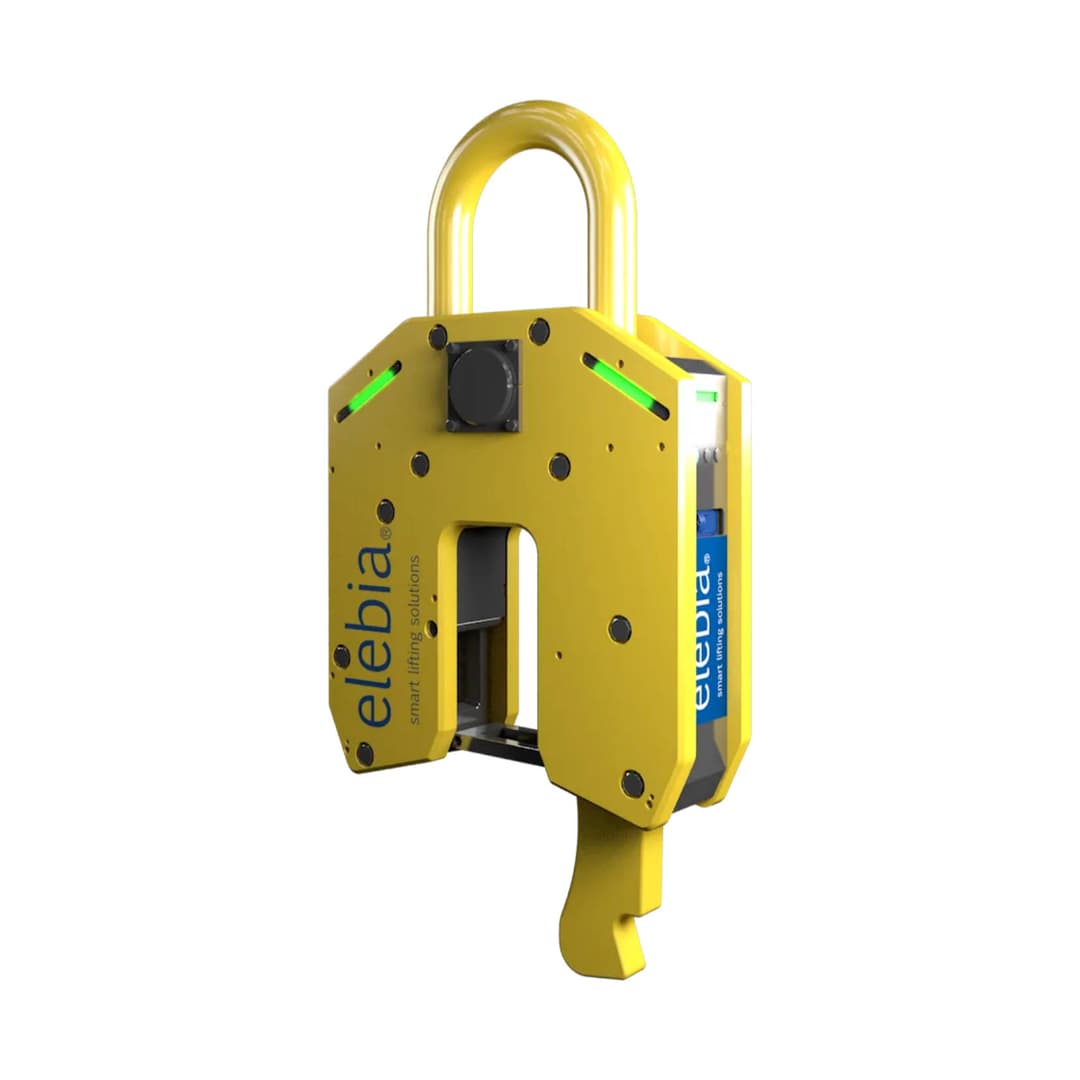

The NEO100 lifting hook approaches the lifting point and once the trigger makes contact with the lifting point, the closing operation begins. The sensor recognizes the hook is in the closed position, it latches automatically, with the LED's status changing from green (open), to red, (intermediate state), and finally to blue (closed). Once the LED status indicator is blue, the load is ready to be lifted and transported. Demo Video

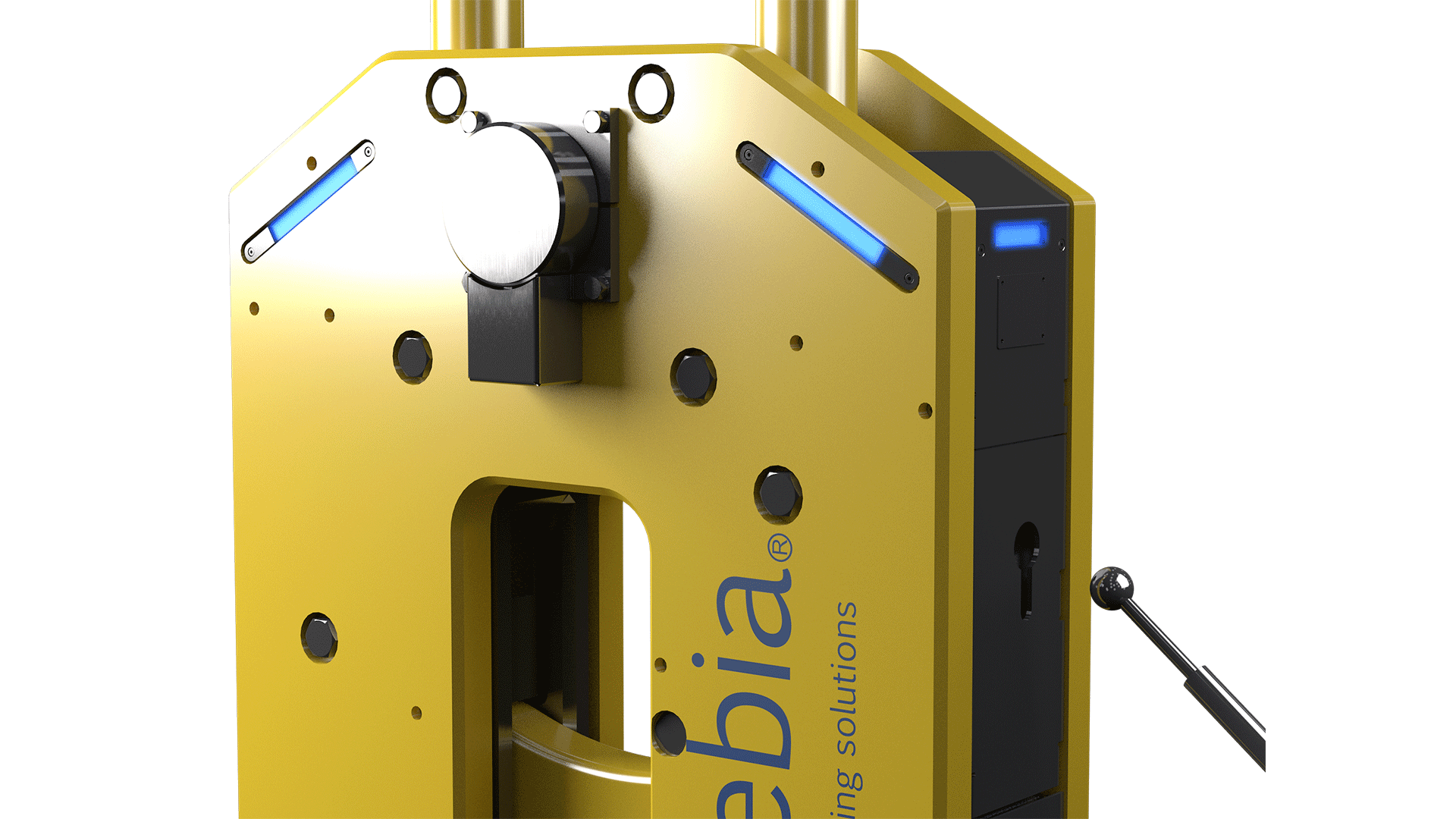

LED Status Indicator
Like the rest of the NEO range, the NEO100 carries a High-Brightness LED status indicator, an additional safety measure which shows the lifting hook's status at all times with a bright 4 colour-code scheme visible from the operator's position.

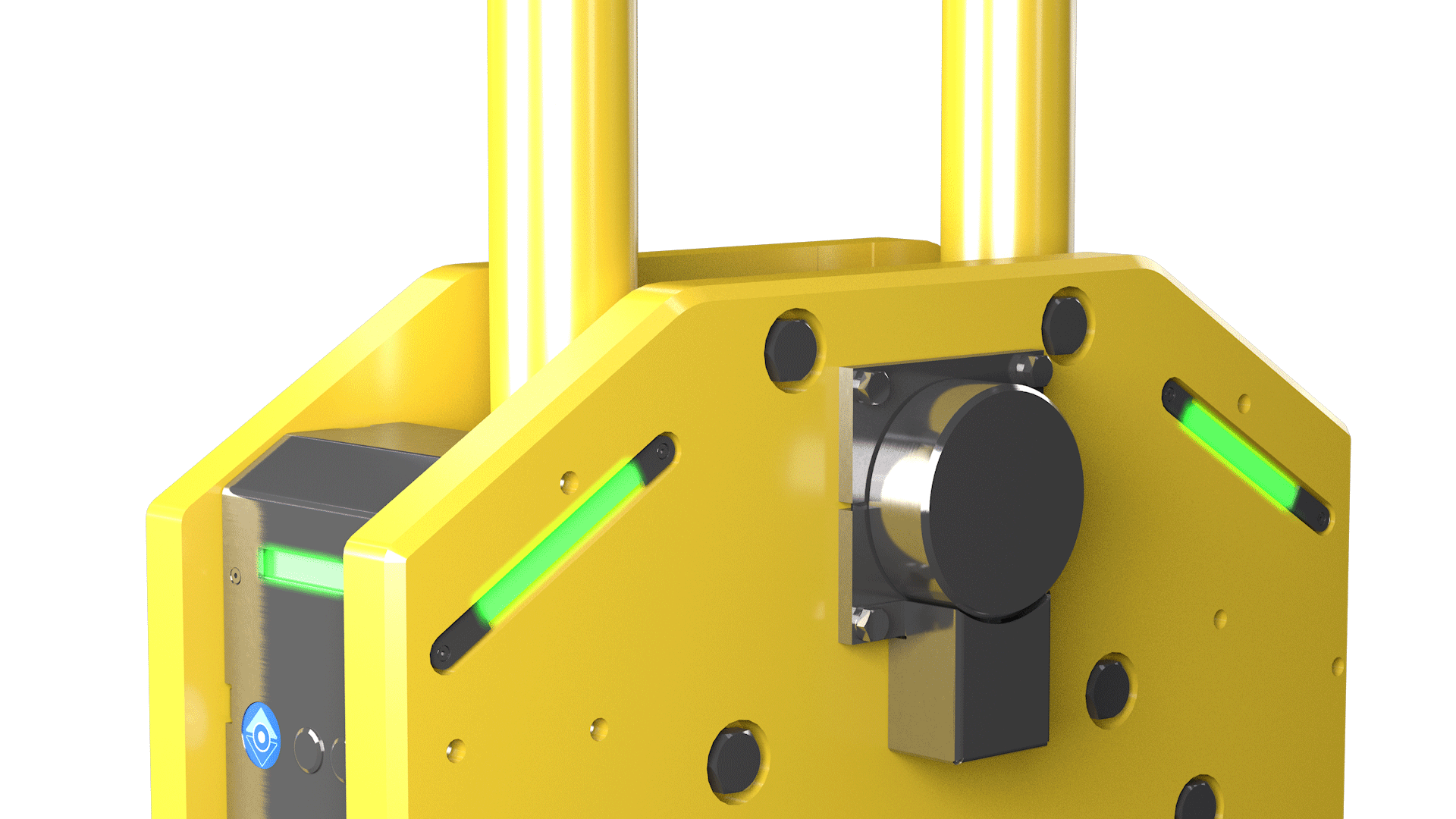

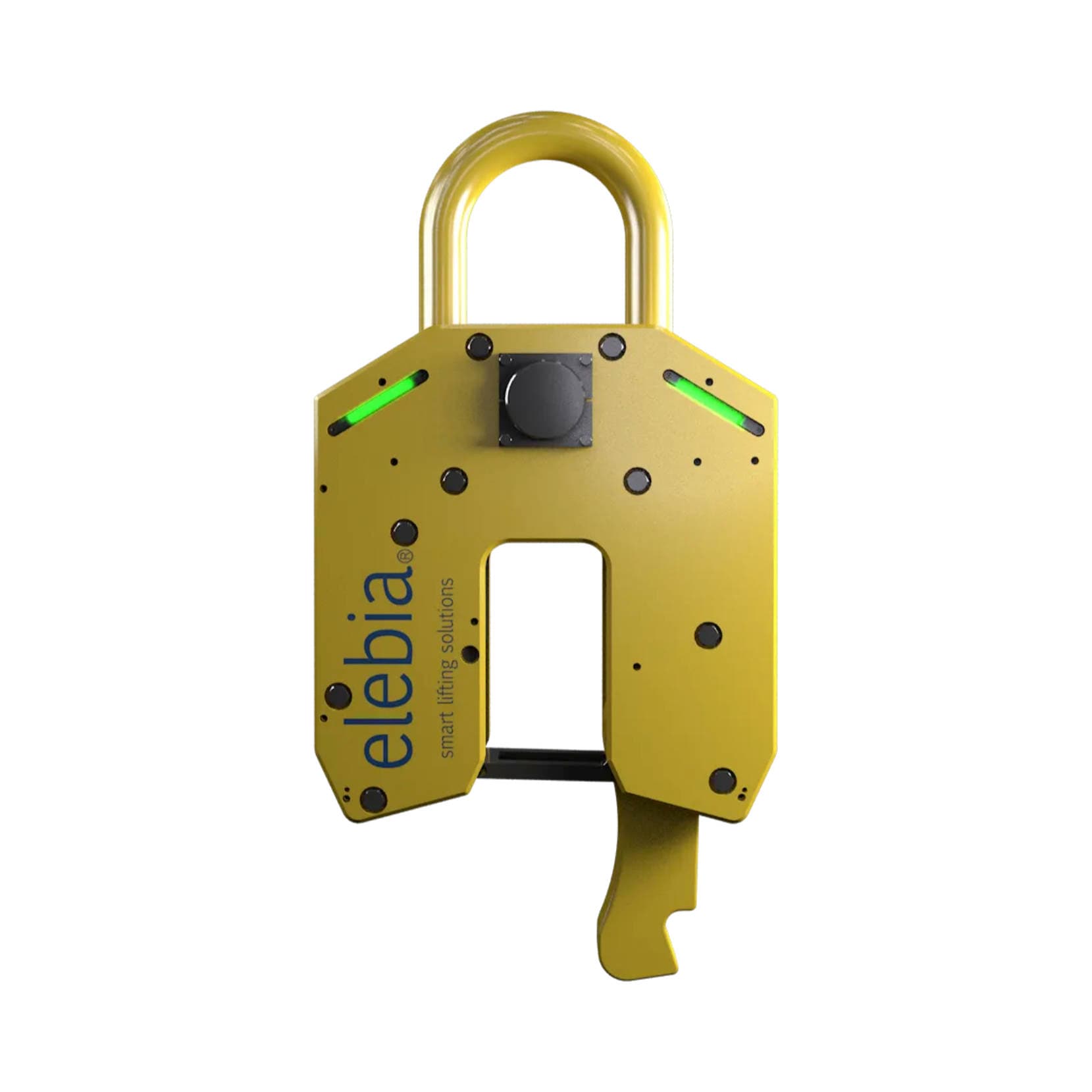

- Green: Lifting Hook is Open / Release Load
- Red: Intermediate: Do Not Lift!
- Blue: Lifting Hook is Closed / Lift & Manoeuvre Load
- White: Low Battery

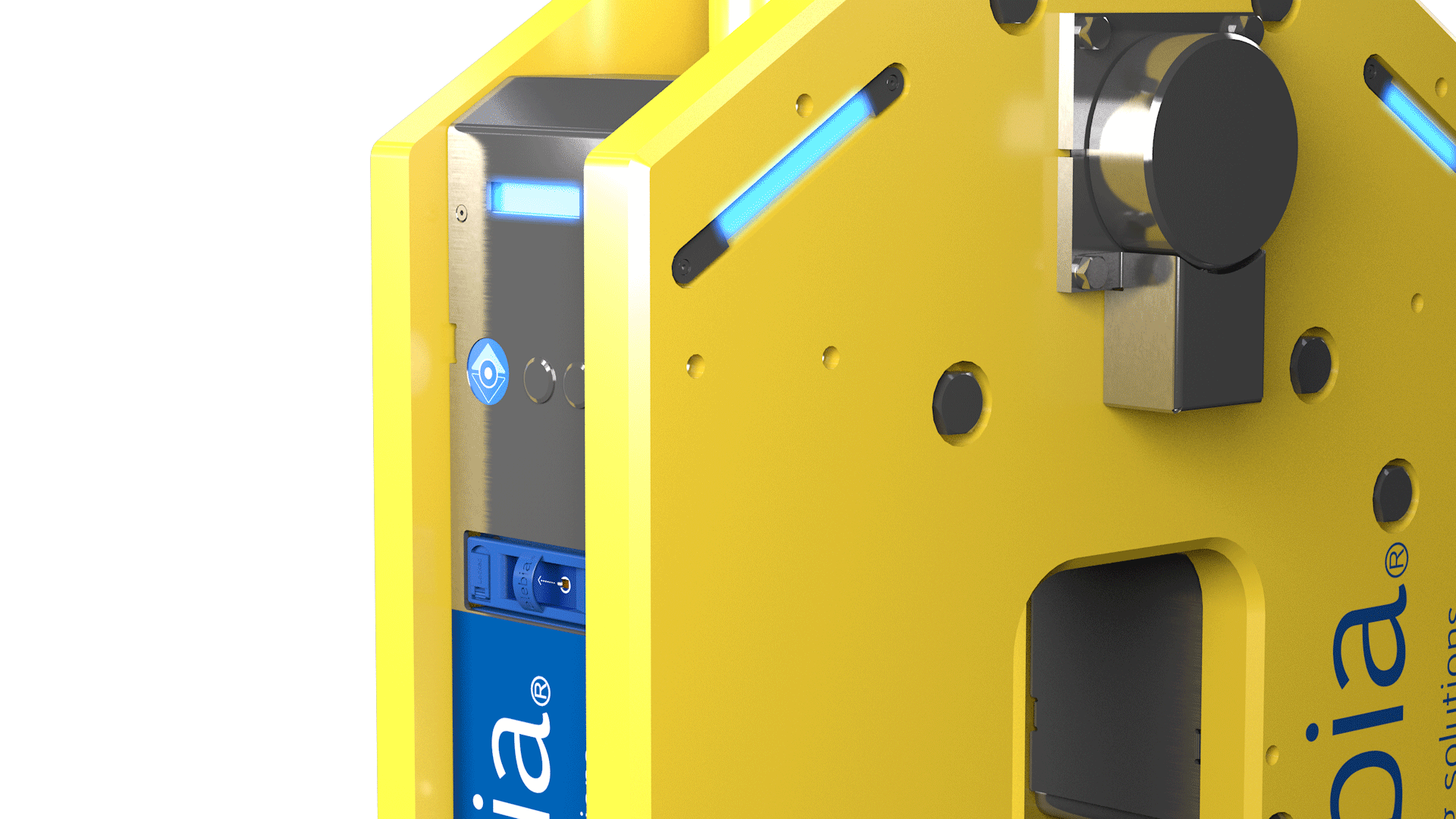

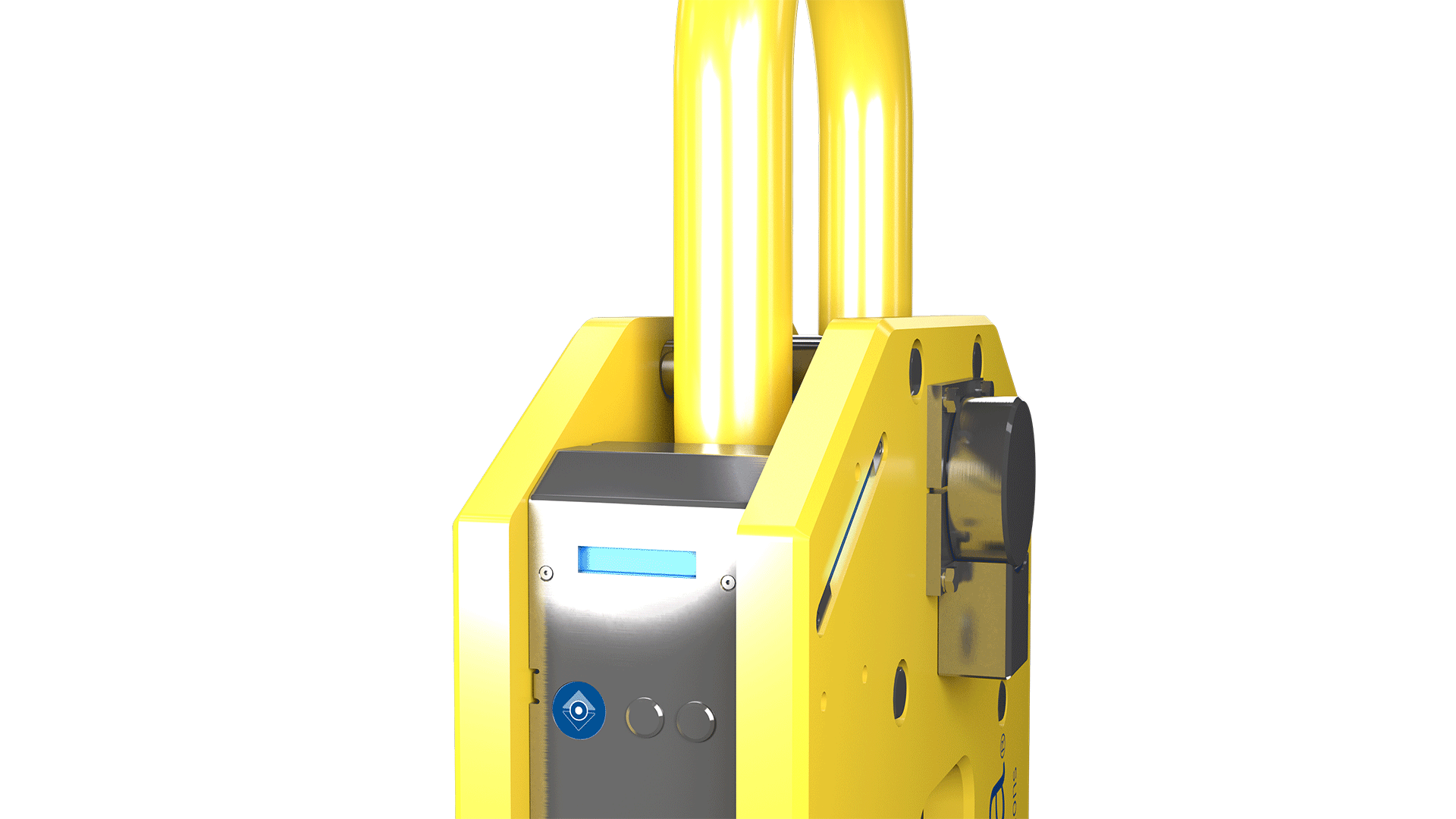

The high-capacity battery status is indicated by a 14 segment Eink display.
When the NEO100 is in Smart Nap Mode, its electronics and LED status indicator will not activate themselves until the hook has made contact with the load's lifting point, improving the batteries' efficiency and energy consumption.
By means of the eMAX remote control, the electronics of the lifting hook can be configured so that when the battery charge is below a preset threshold by the user, the hook can only be opened.With this threshold, even is the battery is almost discharged,you will always be able to open the lifting hook and release the load.
With the “Always On” mode, the colour code scheme of the LED status indicator will always be visible. Simply press the top button beside the battery to activate this mode.
Battery Duration: 5,000 cycles / 250 hours in standby mode
The “Smart Nap” mode reduces battery consumption by activating the LED's colour-code scheme when the NEO100's hook commences its closing motion. The LEDs and battery are not activated.
With the load cell, as of 1% of the working load limit (1,000 kgs./2,204 lbs.), the intermittence of the LED Status Indicator is of a higher frequency, making it visually recognizable that the lifting hook is closed and with a suspended load. This feature is optional.
The laser pointer is optional for the NEO100. It acts as a guide to perfectly place and set the NEO100 in the correct position when approaching the lifting point. Simply activate it by pressing the button that is beside the battery slot. This feature is optional. Demo Video
As with the rest of our lifting products, the NEO100 is fail-safe designed. Once the cargo is correctly placed on the lifting hook, it is not possible to release or drop the load that is being lifted.

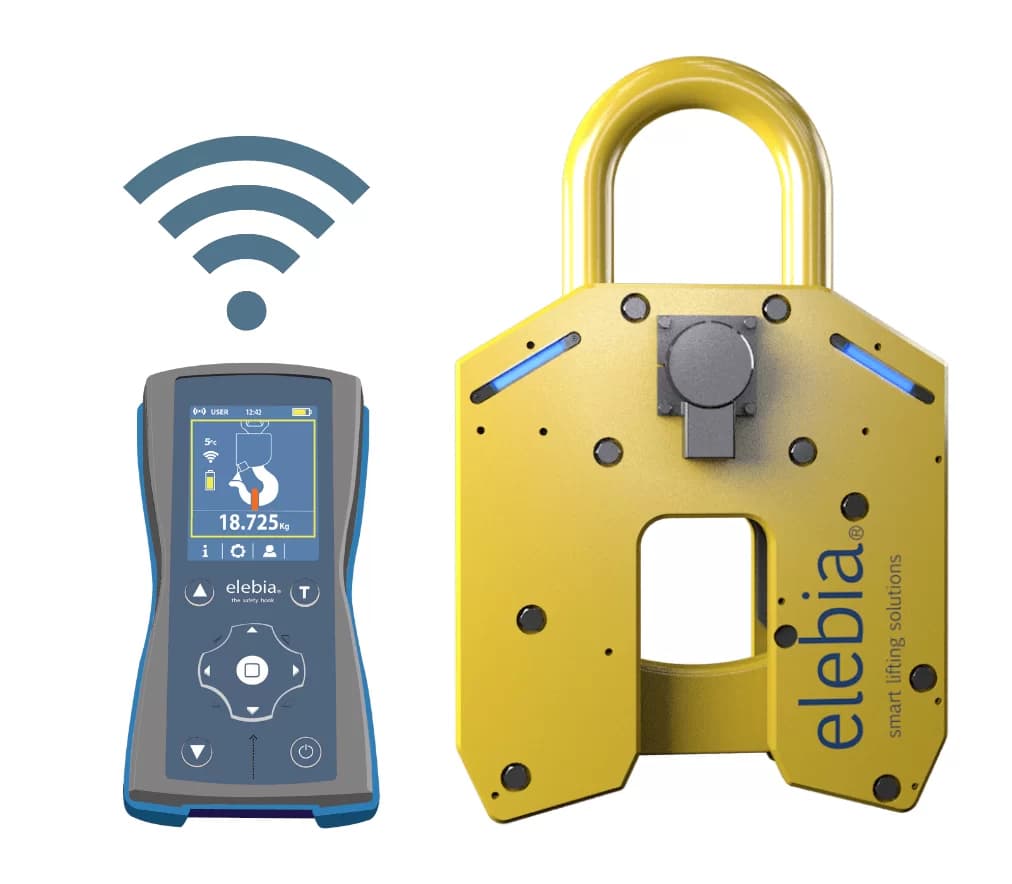

Remotely engage and release any load with any of the Elebia remote controls. The eMINI, eMAX and eINST allow a simple and reliable control in a fail-safe way. Send all the necessary orders and receive all the info from the NEO100 lifting hook straight to your preferred remote control.
If there's ever the need to manually override NEO100's electronics, the process is very simple. If at ground level, simply open the cover and wait until LEDs turn green. If the manual override process has to be carried out at height a simple 3 step procedure is all it takes:
- Insert the end/tip of pole in the cover's slot
- lower the end/tip of pole until it reaches the narrow lower bottom end of the cover's slot
- Pull until the cover opens and wait until LEDs turn green.
- Working Load Limit
100000 kgs. / 220,462 lbs
- Safety Factor
- Regulatory Standards
ETSI EN 303 446-1 V1.1.0
ETSI EN 303 446-2 V1.1.0
ETSI EN 300 220-1 V3.1.1
ETSI EN 300 220-2 V3.1.1
EN 10204 3.1.B
Directive on Machine Safety (D2006/42/EC)
EMC Directive (2014/30/EU)
Low Voltage Directive (2014/35/EU)
Radio Equipment Directive (2014/53/EU)
Assurance of Production Quality in accordance with ISO9001
ARIB Construction Design Certification Number 203-JN0689
FCC Identifier 2ACLHEVO for Equipment Class: Digital Transmission System
Each mechanism is delivered with the CE stamp and a declaration of CE conformity
elebia is a member of F.E.M. (European Federation of Materials Handling)
