Product Description

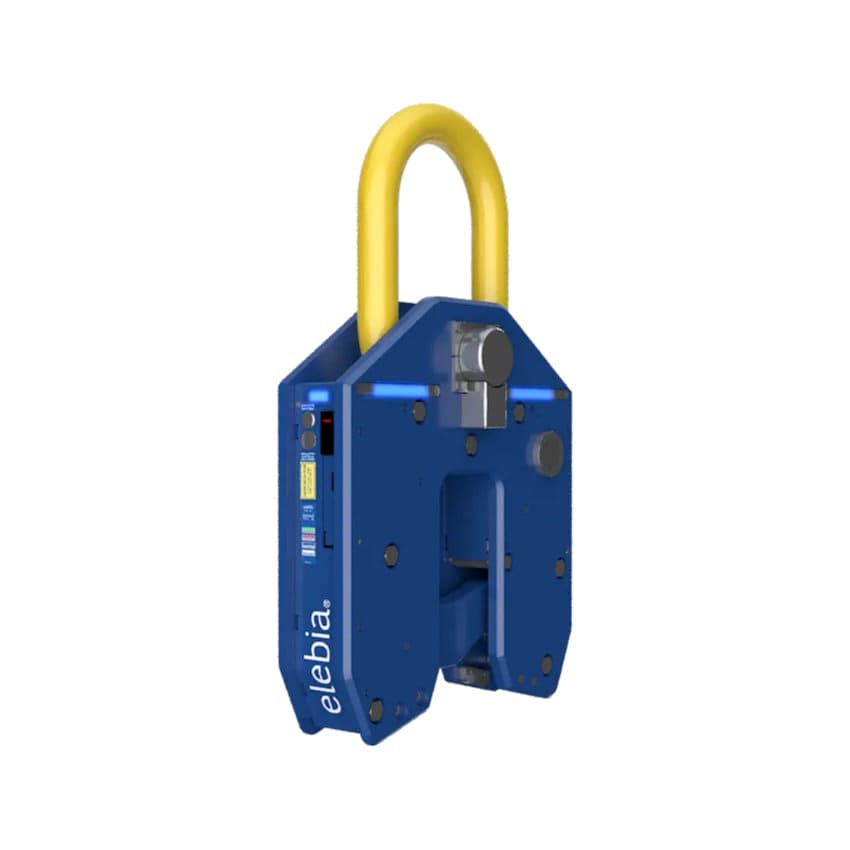

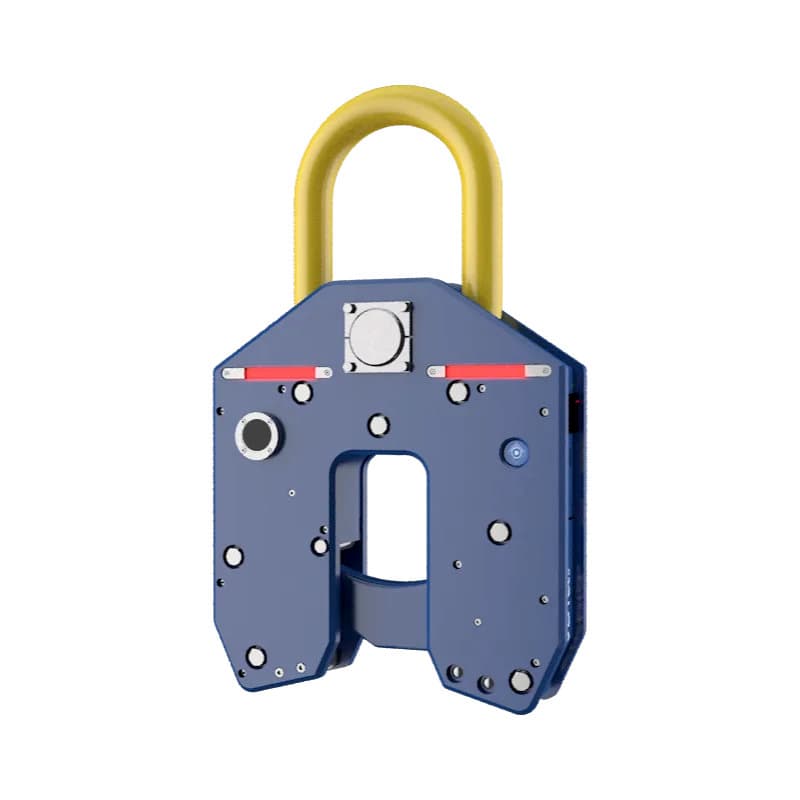

Wireless Lifting Hook

Lifting hook for bell furnaces


The NEO50 & NEO60 lifting hooks have been designed as a solution for lifting and transporting any load, as well as for oversized lifting points of up to 130mm Ø. With their 50.000 kgs. (110.231 lbs.)/60.000 kgs. (132.277 lbs.) lifting capacity and advanced safety and productivity features, the NEO50/NEO60 lifting hooks are the smartest lifting solution yet.

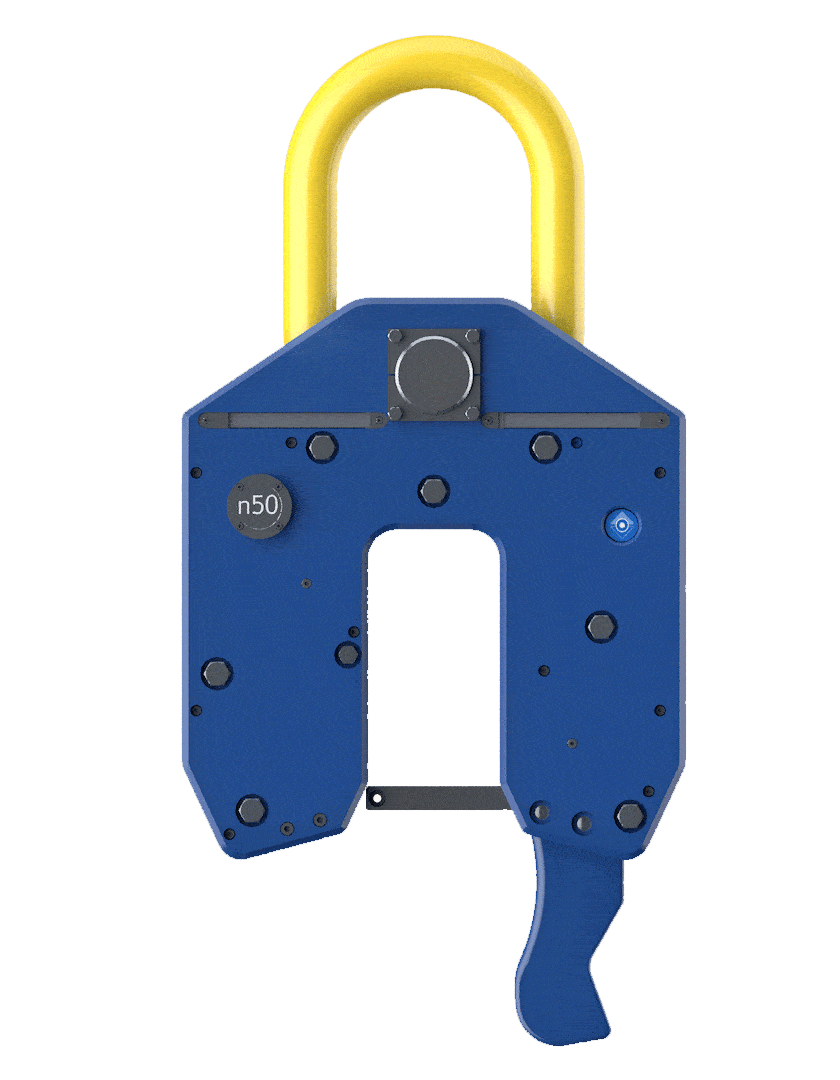

How Does It Work?

The NEO lifting hook approaches the lifting point and once the trigger makes contact with the lifting point the closing operation begins. Once NEO's sensor recognizes the hook is in the closed position, it latches automatically, with the LED's status changing from green (open), to red, (intermediate state), and finally to blue (closed). It is at that moment that the cargo is ready to be lifted and transported. Demo Video

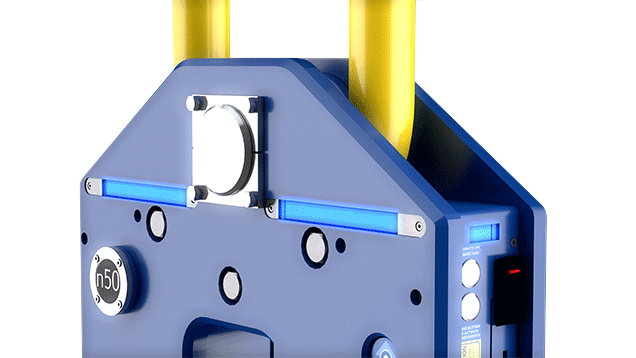

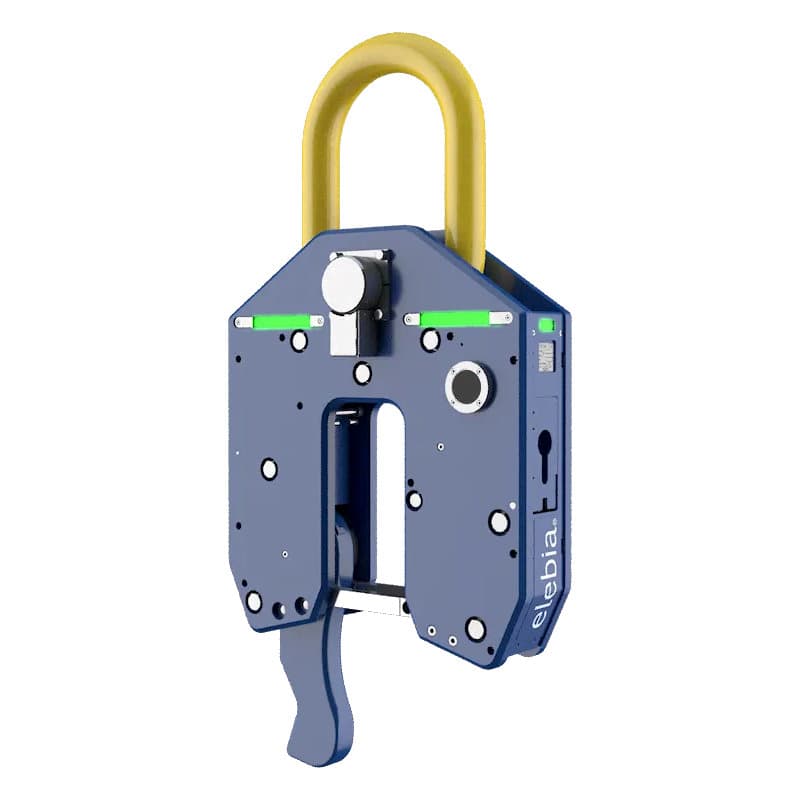

LED Status Indicator

Besides their fail-safe design, as with the rest of our lifting products, the NEO50 & NEO60 also carry a High-Brightness LED status indicator, an additional safety measure which shows the lifting hook's status at all times with a bright 4 colour colour-code scheme visible from the operator's position.

  • Green: Lifting Hook is Open / Release Load
  • Red: Intermediate: Do Not Lift!
  • Blue: Lifting Hook is Closed / Lift & Manoeuvre Load
  • White: Low Battery
Elebia NEO50 LED Status Indicator

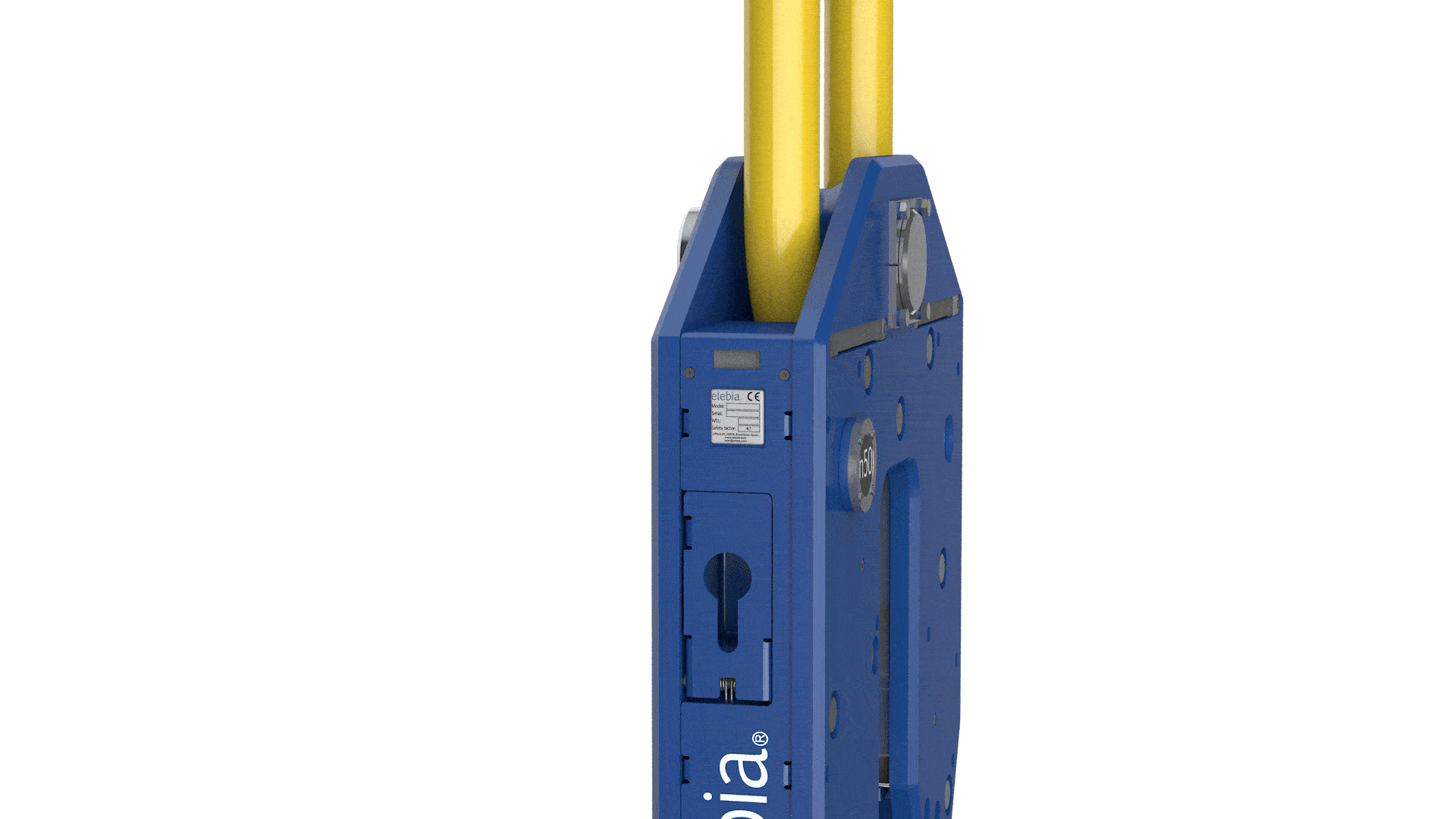

Smart Battery

You will never have to worry about a discharged battery with the rechargeable Li-Ion technology of NEO's high-capacity battery.

When the hook is in Smart Nap Mode, its electronics and LED status indicator will not activate themselves until the hook has made contact with the load's lifting point, improving the batteries' efficiency and energy consumption. The slot cover is also protected with a safety lock which protects the battery from falling in case of impact.

By means of the eMAX remote control, the electronics of the lifting hook can be configured so that when the battery charge is below a preset threshold by the user, the hook can only be opened. With this threshold, even is the battery is almost discharged, you will always be able to open the lifting hook and release the load.

Elebia NEO50 Battery

Always On

With the “Always On” mode, the colour code scheme of the LED status indicator will always be visible. Blue - for closed - and green - for open - are continuous for 10 seconds and then take an intermittent pattern in order to save battery. Activate this mode by pushing the top button beside the battery.

Battery Duration: 5,000 cycles / 250 hours in standby mode.

Elebia NEO50 Always On

Smart Nap

The “Smart Nap” mode reduces battery consumption by activating the LED's colour-code scheme when the NEO'shook commences its closing motion. Up until that moment,the lifting hook is in sleeper mode and its electronics and battery are not active.

Battery Duration: 5,000 cycles / up to 2 months in standby mode.

Elebia NEO50 Smart Nap

Load Cell

Both the NEO50 & NEO60 are equipped with a load cell. This load cell is precise, reliable, rugged, compact and fully integrated into the lifting hook, representing no increase in weight or dimensions of the unit. With the load cell, as of 1% of the working load limit of the hook, the intermittence of the LED Status Indicator is of a higher frequency. With this feature, it is visually recognizable that the lifting hook is closed and with a suspended load. This feature is optional.

Elebia NEO50 Load Cell

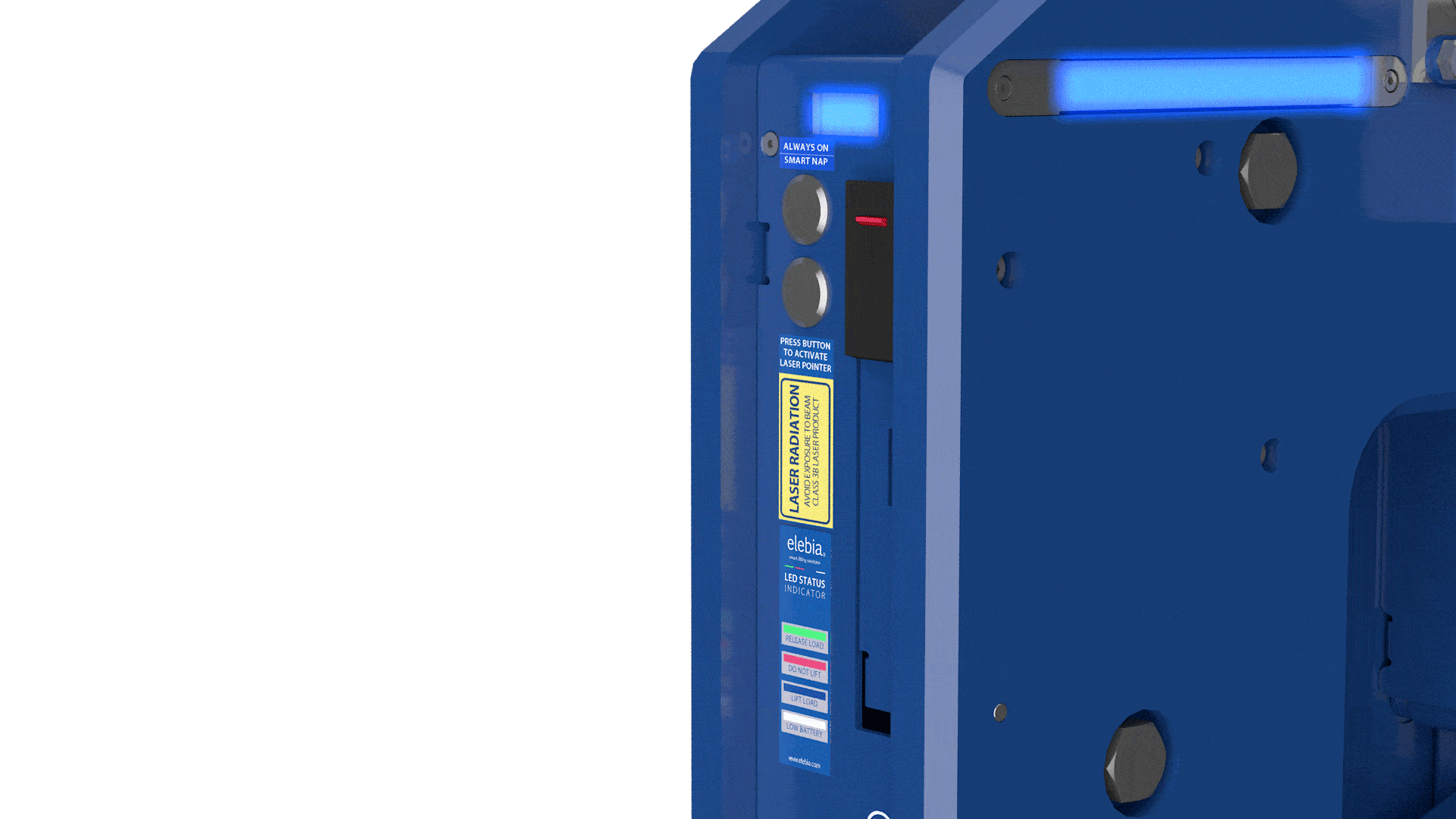

Laser Pointer

The NEO50 & NEO60 carry a laser pointer as an optional feature. In lifting operations, and from a certain distance, the sense of depth can be misjudged. The laser pointer acts as a guide in order to perfectly place and set the lifting hook in the correct position when approaching the lifting point. It can be manually activated by pressing the button that is beside the battery slot. This feature is optional. Demo Video.

Fail-safe Design

Thanks to its fail-safe design, once the load is correctly placed on the lifting hook, it is not possible to release or drop the cargo that is being lifted.

Elebia NEO50 Fail-safe Design

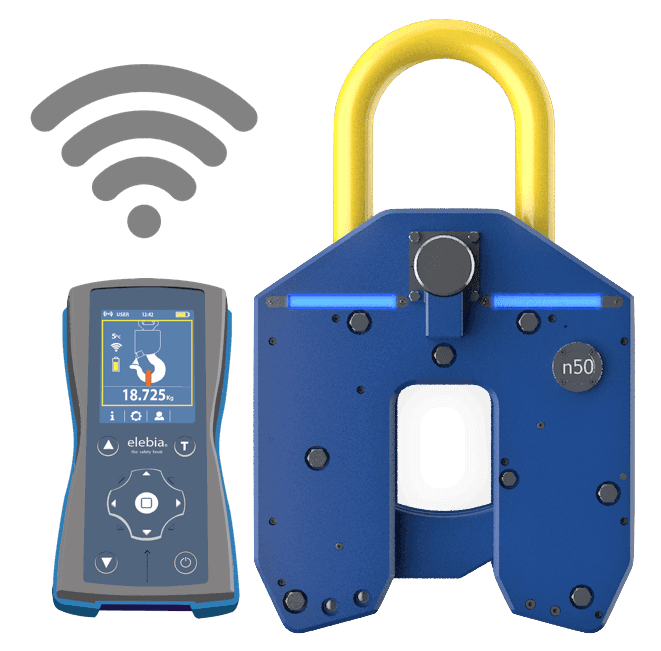

Remote Controlled

Remotely engage any load with any of the Elebia remote controls. All of them allow a simple and reliable control in a fail-safe way. Send all the necessary orders and receive all the info from the NEO50 & NEO60 lifting hooks straight to your remote control.

Elebia eMax

Metal Tip

A metal tip can be inserted to facilitate NEO's orientation and approach to the lifting point. Fabricated from high-strength steel, it is reinforced to protect the hook against impacts.This feature is optional

Elebia NEO50 Metal Tip

ARC50 Lifting Point

The ARC 50 by Codipro is a lifting point specially designed for handling heavy loads, and particularly suited for lifting moulds. It has been conceived to be used with the NEO50/NEO60 lifting hook, although it can also be used in combination with other lifting hooks, shackles with a diameter of less than 100mm and also with the NEO20 lifting hook.

Elebia ARC50 Lifting Point

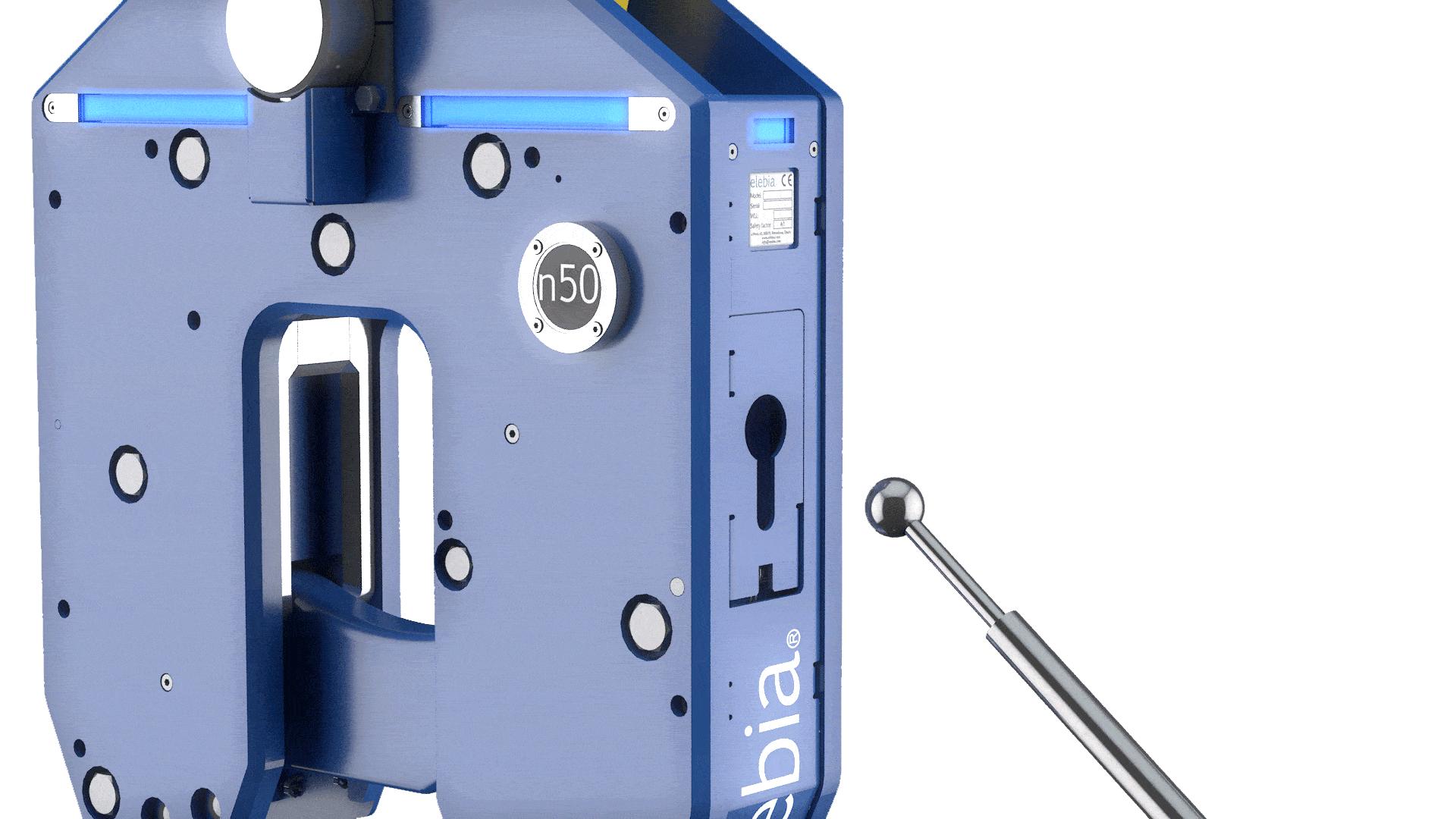

Manual Override

If there's ever the need to manually override NEO's electronics, the process is very simple. At ground level, simply open the cover and wait until LEDs turn green. If the manual override process has to be carried out at height a simple 3 step procedure is all it takes:

  1. Insert the end/tip of pole in the cover's slot.
  2. Lower the end/tip of pole until it reaches the narrow lower bottom end of the cover's slot.
  3. Pull until the cover opens and wait until LEDs turn green.

Ground Level Demo Video | At Height Demo Video

Elebia NEO50 Manual Override

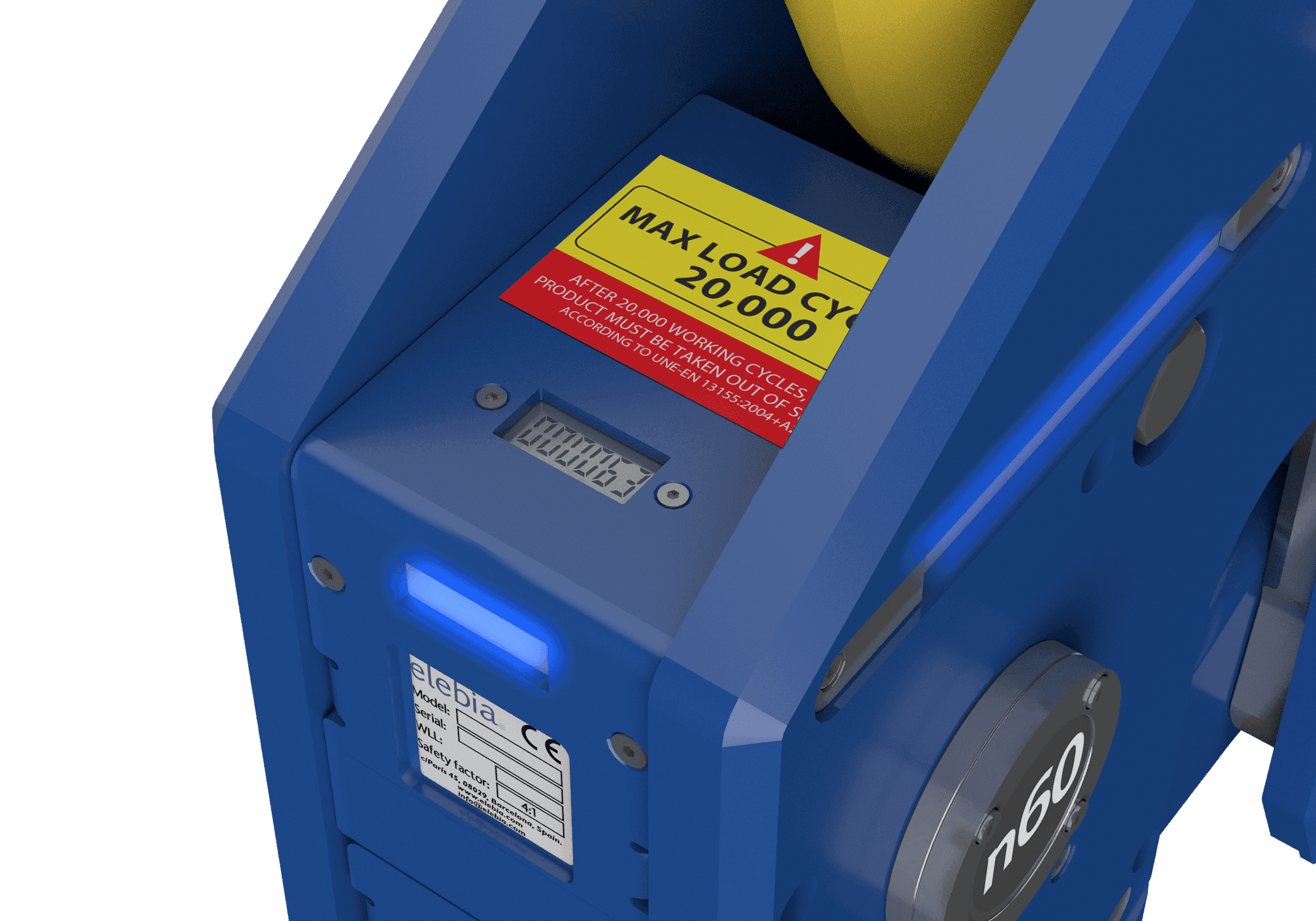

Electromechanical Counter

The NEO60 lifting hook carries an electromechanical counter for cycle recording.

Elebia NEO50 Electromechanical Counter


Working Load Limit


50000kgs. / 110023lbs.


60000kgs. / 132277lbs.

Safety Factor





Life Span


Limited to 20,000 lifts (UNE-EN 13155:2004+A2)

Regulatory Standards


ETSI EN 300 220-1 V3.1.1

ETSI EN 300 220-2 V3.1.1

ETSI EN 303 446-1 V1.1.0

ETSI EN 303 446-2 V1.1.0

UNE-EN 1050

UNE-EN 13135:2013

UNE-EN 60730-1:2013

EN 10204 3.1.B

NEO50 & NEO60

UNE-EN 60204-1:2007

UNE-EN ISO12100:2012

UNE-EN 61000-6-4:2007

UNE-EN 61000-6-2:2006


UNE-EN 13155:2004+A2

Directive on Machine Safety (D2006/42/EC)

EMC Directive (2014/30/EU)

Low Voltage Directive (2014/35/EU)

Radio Equipment Directive (2014/53/EU)

Assurance of Production Quality in accordance with ISO9001

ARIB Construction Design Certification Number 203-JN0689

FCC Identifier 2ACLHEVO for Equipment Class: Digital Transmission System

Each mechanism is delivered with the CE stamp and a declaration of CE conformity

elebia is a member of F.E.M. (European Federation of Materials Handling).
