Product Description

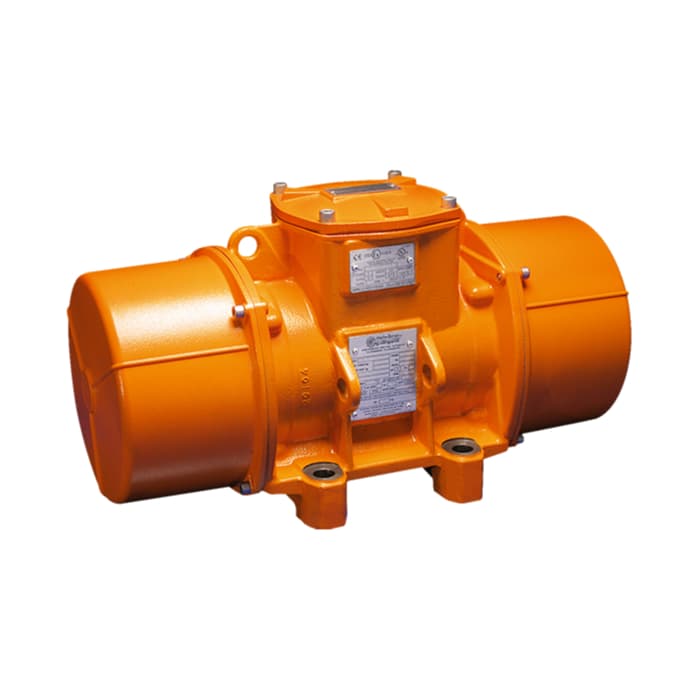

CDX Series

Foot Mounted Electric Vibrator

Explosion-proof electric vibrators


The CDX explosion-proof vibrators have been designed for use in industrial processes in a potentially explosive atmosphere. The enclosure of the CDX vibrators is equipped with increased thickness and joints to prevent the transmission of an internal explosion to the surrounding area. The CDX series is characterized and enhanced by many different certifications, depending on the vibrator model.


Power Supply

Three-phase voltage from 24V to 690V (limit at 600V for UL and CSA certification), 50Hz or 60Hz, or single-phase 100-130V 60Hz and 200-240V 50Hz (frame sizes 10,20,30); suitable for use with a PWM frequency drive from 20Hz to the base frequency with constant torque load profile


2, 4, 6 and 8 poles


Continual service (S1) at maximum declared centrifugal force and electric power

Centrifugal Force

Range extended to 22400 Kgf. (220 KN)

Insulation Class

Class F (155°C)

Electric Motor

Three-phase and single-phase asynchronous type

Insulated windings using vacuum encapsulating up to size 35; using the “drop by drop” trickle system with Class H resin for the larger sizes

The rotor is die cast aluminum
