Product Description

Italvibras

ITV-VR Series

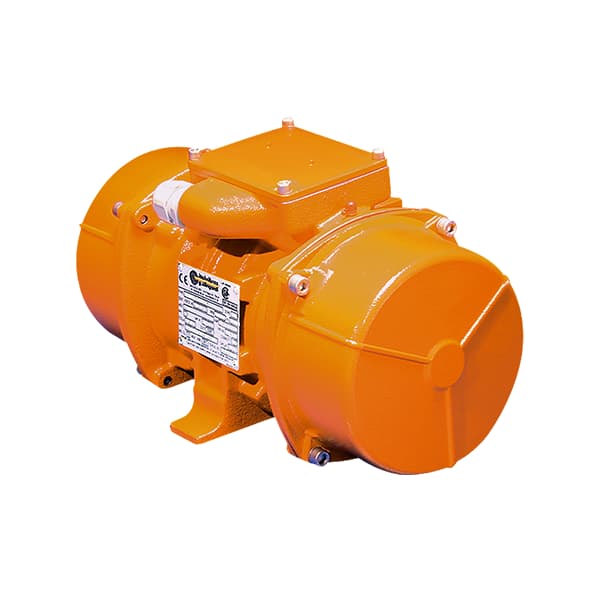

High-Frequency Electric Vibrator

High variable frequency electric vibrators with fixed connection

Description

High variable frequency electric vibrators, suitable to be applied to systems and machines in the precasting industry and whenever a high frequency vibration is requested. The ITV-VR series electric vibrators are able to provide a centrifugal force of up to 5300 Kgf (52 kN) at a frequency varying from 0 to 6.000 rpm. They are available with either the fixed or cradle connection (RS types).

Specifications

Power Supply

Three-phase voltage from 24V to 690V at the various frequencies, depending on the type and series Italvibras can supply variable frequency drive VIBRAVAR and different types of variable frequency equipments (CFV, MULTIVAR)

Functioning

Continuous service (S1) at the maximum declared centrifugal force and electric power values

Centrifugal Force

Range extended up to 5300 kgf (52kN) with force output adjustable from 0 to 100%

Insulation Class

Class F (155°C)

Certification

Category

EC e cCSAus
