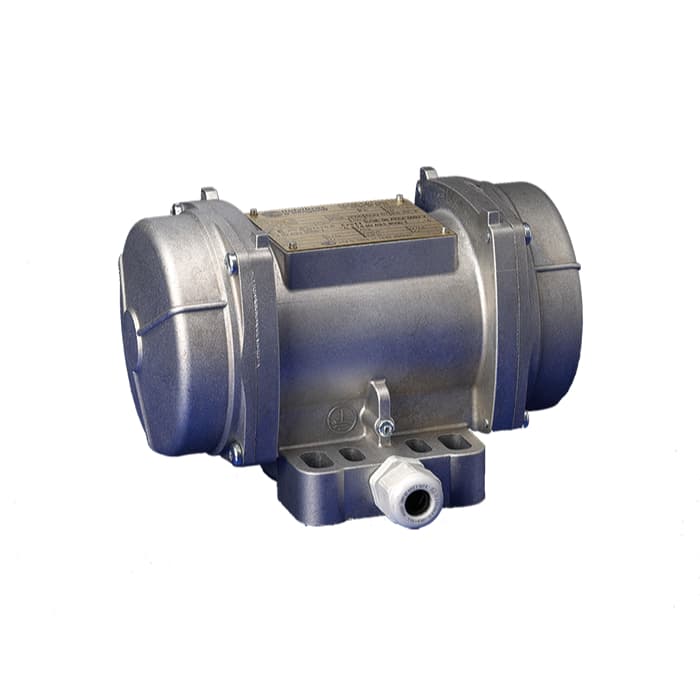

M3-E Series
Foot Mounted Electric VibratorIncreased safety Multi-hole fixing electric vibrator
M3-E Series
Foot Mounted Electric VibratorIncreased safety Multi-hole fixing electric vibrator
Description
Designed for industrial continuous duty, the M3 series features a compact shape, reduced overall dimensions, terminal box underneath which means also a high electric protection in dusty environments. Multi-holes mounting feet enable M3 series to match several existing mounting plates. M3 series motors comply with the most recent international standards for use in explosive dust atmospheres. Particularly M3 series can be used in zones 21 and 22.
Specifications
- Power Supply
Three-phase voltage 127/220V, 50Hz,200/346V, 60Hz; or 210/363V, 50 Hz
- Polarity
2 standard poles
- Functioning
Continual service (S1) at maximum declared centrifugal force and electric power
- Centrifugal Force
Up to 88 kgf (863 N)
- Insulation Class
Class F (155°C)
- Electric motor
Three-phase or single-phase asynchronous type.
Insulated windings using vacuum encapsulating.
Certification
- Category
II 2 G,D
- Level of Protection
Ex e II, tD A21 IP66
- Temperature Class
Gas: T4 (275°F) Dusts: 248°F
- CE Certificate
LCIE 06 ATEX
- Areas of Use
1, 2, 21, 22
