Product Description

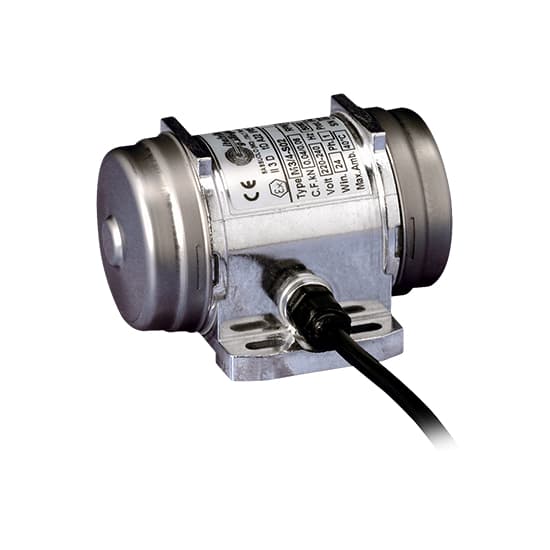

Micro Series

Foot Mounted Electric Vibrator

Electric vibrators with reduced overall size


The MICRO series has been designed for continual industrial service in processes where a reduced centrifugal force and reduced overall vibrator size are required. MICRO vibrators are used in numerous applications in feeding, transport, screening, sizing, separation processes, compaction in the automatic machines used in the chemical industry, food industry, pharmaceuticals, packaging and automation in general.


Power Supply

Three-phase voltage from 24V to 480V (except M3/4-S02), 50Hz or 60Hz or single phase 100-130V, 60Hz and 200-240V, 50Hz


2 poles


Continual service (S1) at maximum declared centrifugal force and electric power

Centrifugal Force

Range extended to 65 Kgf. (63.8 KN)

Insulation Class

Class F (155°C)

Electric motor

Three-phase and single-phase asynchronous type

The M3/4 model can only be supplied in the single-phase version and does not require a capacitor

Models M3/20 and M3/45 can be supplied both in three-phase and single-phase versions

The capacitor is already included in a case along the power supply cable



II 3 D

Level of Protection

Ex tc IIIC T100°C Dc IP65

Temperature Class

T5 (100°C)

Areas of Use
