Product Description

Italvibras

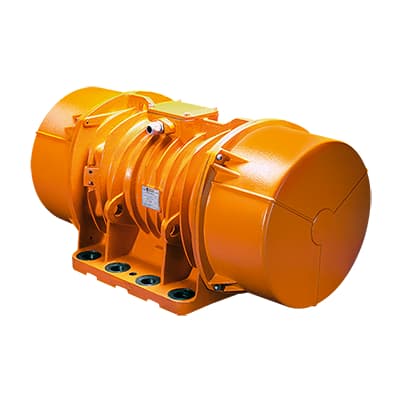

MVSI Series

Foot Mounted Electric Vibrator

Electric vibrators

Description

The MVSI series represents the line of reference products for manufacturer's of vibrating machines and plants operating in many industrial sectors and is made up of the largest range on the market, with centrifugal force values up to 30500 Kgf (300kN).

The MVSI series has been conceived to guarantee higher performance in all conditions and environments and complies with the most recent IEC and EN international standards for use in atmospheres with potentially explosive powders. In particular, the MVSI series can be used in areas 21 and 22.

Specifications

Power Supply

Three-phase voltage from 24V to 690V, 50Hz or 60Hz or single-phase 100-130V, 60Hz and 200-240V, 50Hz; suitable for use with a PWM frequency drive from 20Hz to the base frequency with constant torque load profile

Polarity

2, 4, 6 and 8 standard poles, 10 and 12 poles on request

Functioning

Continual service (S1) at maximum declared centrifugal force and electric power

Centrifugal Force

Range extended up to 30500 Kgf. (300 kN)

Insulation Class

Class F (155°C), class H (180°C) on request

Electric motor

Three-phase asynchronous type

Insulated windings using vacuum encapsulating up to size 35; using the “drop by drop” trickle system with class H resin for larger sizes

Rotor is die cast aluminum

Certification

Category

II 2 D

Level of Protection

tD A21 IP66 (ongoing upgrade to Ex tb IIIC Db)

Temperature Class

Class F (155°C), class H (180°C) on request

CE Certificate

LCIE 05 ATEX 6163 X

Areas of Use

21, 22
