Product Description
Description

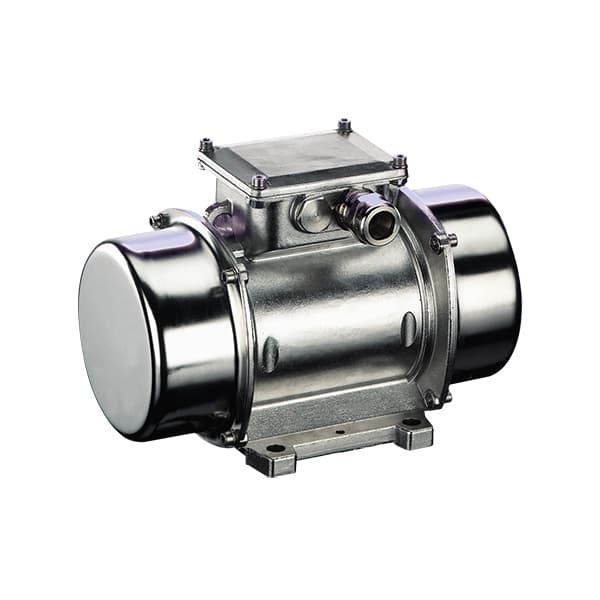

The MVSS stainless steel series vibrators are characterized by their total protection from liquids, dusts, aggressive agents and contaminants, thanks to the stainless steel casing and external components.
Specifications
- Power Supply
Three-phase voltage from 24V to 690V, 50Hz or 60Hz or single-phase 100-130V, 60Hz and 200-240V, 50Hz; suitable for use with a PWM frequency drive from 20Hz to the base frequency with constant torque load profile
- Polarity
2, 4, 6 and 8 standard poles, 10 and 12 poles on request
- Functioning
Continual service (S1) at maximum declared centrifugal force and electric power
- Centrifugal Force
Range extended up to 30500 Kgf. (300 kN)
- Insulation Class
Class F (155°C), class H (180°C) on request
- Electric motor
Three-phase asynchronous type
Insulated windings using vacuum encapsulating up to size 35; using the “drop by drop” trickle system with class H resin for larger sizes
Rotor is die cast aluminum.
Certification
- Category
II 2 D
- Level of Protection
tD A21 IP66 (ongoing upgrade to Ex tb IIIC Db)
- Temperature Class
Class F (155°C), class H (180°C) on request
- CE Certificate
LCIE 05 ATEX 6163 X
- Areas of Use
21, 22
