Product Description

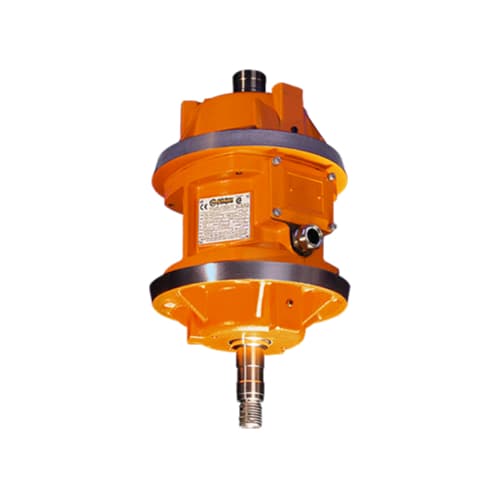

VB Series

Flanged Electric Vibrator

Electric vibrators with double tapered mounting flange


The VB series is made up of vertical vibrators with double conical flange. These vibrators are typically used in circular screens and in medium-size and large sieves. They are supplied without eccentric weights, which must be realized and mounted by the Manufacturer of the vibrating machine. The VB series complies with the most recent IEC and EN international standards for use in atmospheres with potentially explosive powders. In particular, the VB series can be used in areas 21 and 22.


Power Supply

Three-phase voltage from 220V to 690V, 50Hz or 60Hz. Suitable for use with a PWM frequency drive from 20Hz to the base frequency with constant torque load profile


4 and 6 poles


Continual service (S1) at maximum declared centrifugal force and electric power

Centrifugal Force

Proportioned for a centrifugal force equal to 5000 Kgf. (49 KN)

Insulation Class

Class F (155°C), class H (180°C) on request

Electric motor

Three-phase asynchronous type Insulated windings using “drop by drop” trickle system with class H resin



II 2 D

Level of Protection

tD A21 IP66 (ongoing upgrade to Ex tb IIIC Db)

Temperature Class

Class F (155°C), class H (180°C) on request

CE Certificate

LCIE 05 ATEX 6163 X

Areas of Use

21, 22
