Product Description
VB-E Series

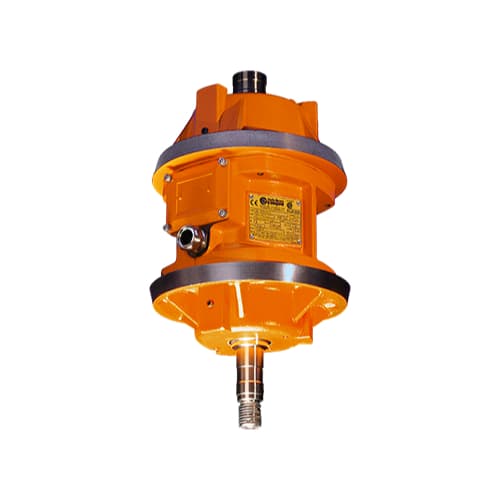

Flanged Electric VibratorIncreased safety Electric vibrators with double tapered mounting flange
VB-E Series
Flanged Electric VibratorIncreased safety Electric vibrators with double tapered mounting flange
Description
The double-conical flange VB-E vibrators have been designed for use in industrial processes in environments with a potentially explosive atmosphere, caused by gas and dusts, in compliance with ATEX Directive (94/9/EC). They are supplied without eccentric weights, which must be realised and mounted by the Manufacturer of the vibrating machine. In particular, these vibrators can be used in areas 1 and 2 (gas) and in areas 21 and 22 (dusts).
Specifications
- Power Supply
Three-phase voltage from 220V to 690V, 50Hz or 60Hz; suitable for use with a PWM frequency drive from 20Hz to the base frequency with constant torque load profile
- Polarity
4 poles
- Functioning
Continual service (S1) at maximum declared centrifugal force and electric power
- Centrifugal Force
Proportioned for a centrifugal force equal to 2500 Kgf. (24.5 KN)
- Insulation Class
Class F (155°C)
- Electric motor
Three-phase asynchronous type Insulated windings using “drop by drop” trickle system with class H resin
Certification
- Category
II 2 GD
- Level of Protection
Ex e IIC Gb, Ex tb IIIC Db
- Temperature Class
Class F (155°C)
- CE Certificate
LCIE 06 ATEX 6092 X
- Areas of Use
1, 2, 21, 22
