Product Description

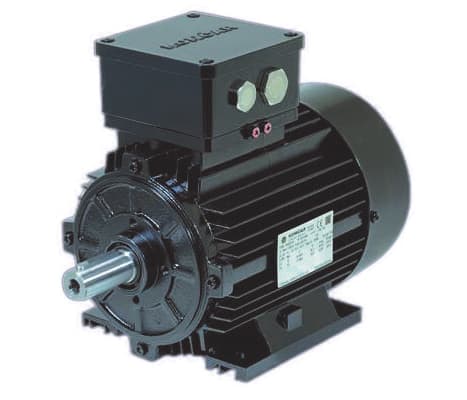

Koncar MES Series

ATEX Motor


Low-voltage explosion protected motor of KONČAR-MES series is ideal for use in chemical and petrochemical industries, in oil and gas pipelines, on offshore and coastal oil platforms, on ships, in the pharmaceutical, graphic, and thermal industries and manufacturing.

Ex-certified motors from the KONČAR-MES series are highly functional and effective when used in combination with pumps, compressors, or industrial boilers.


High efficiency, high performance, and explosion protection of Ex-certified motors in signature KONČAR-MES production:

  • Motors built according to the ATEX Directive 2014/34/EU, which classifies equipment based on the level of protection guaranteed in dangerous areas.
  • Compliance with international efficiency standard IEC 60034-30.
  • Wide range of options, such as reduced inlet currents, motor monitoring, reinforced bearings, tropical climate version for extreme humidity, special coating systems, or offshore C5M-H classification.
  • Documentation that can be flexibly adapted to simple or highly complex projects.
  • High material quality, robust design, high index of IP protection, bearings greased for life, weather and corrosion-resistant final overcoat, and high dielectric strength insulation system fed by static frequency converter.
  • Explosion protected motors are custom built and designed for use in potentially dangerous work areas due to the presence of various types of gas or dust.
  • Maximum safety guaranteed by the explosion protected structure, which is suitable for reliable use.
  • High torque and greater overload capacity.
  • Special ball bearings reduce motor vibration and noise during operation.
  • High temperature margin.
  • Easy installation and repair, longer service life.
  • Flameproof motor series with explosion protection “db” for mining, Zone 1 and Zone 2 (certified according to the ATEX Directive 2014/34/EU and IECEx scheme), with power range up to 200 kW.
  • Flameproof motor series with explosion protection “db” for Zone 1 and Zone 2, for gaseous group IIB and low temperatures up to -50°C.
  • Increased safety motor series with explosion protection “eb” for Zone 1 and Zone 2.
  • Increased safety motor series with explosion protection “ec” for Zone 2 (increased safety, non-sparking).
  • Protection by enclosure motor series with explosion protection “tb” for Zone 21 and “tc” for Zone 22.
  • Flameproof and protection by enclosure motor series for mining, Zone 1, Zone 2, Zone 21 and Zone 22 for the Eurasian Customs Union - EAC.
