Product Description

Description

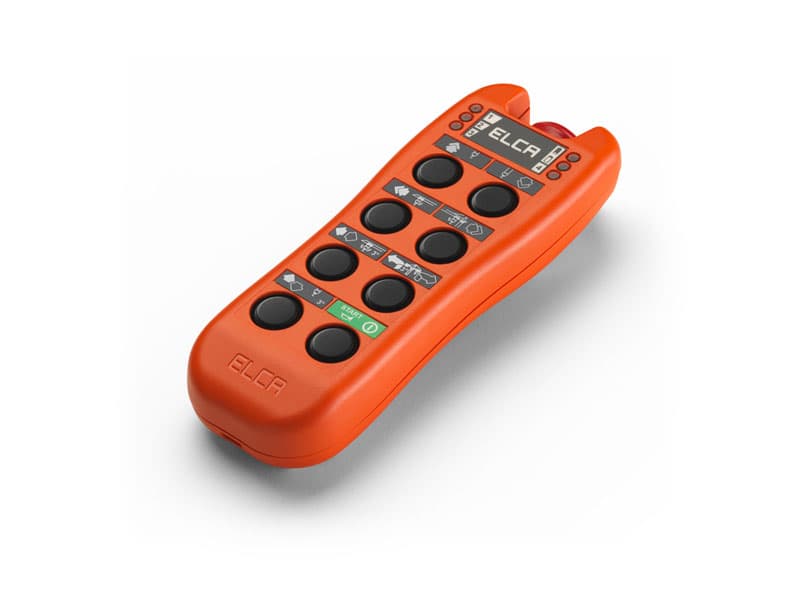

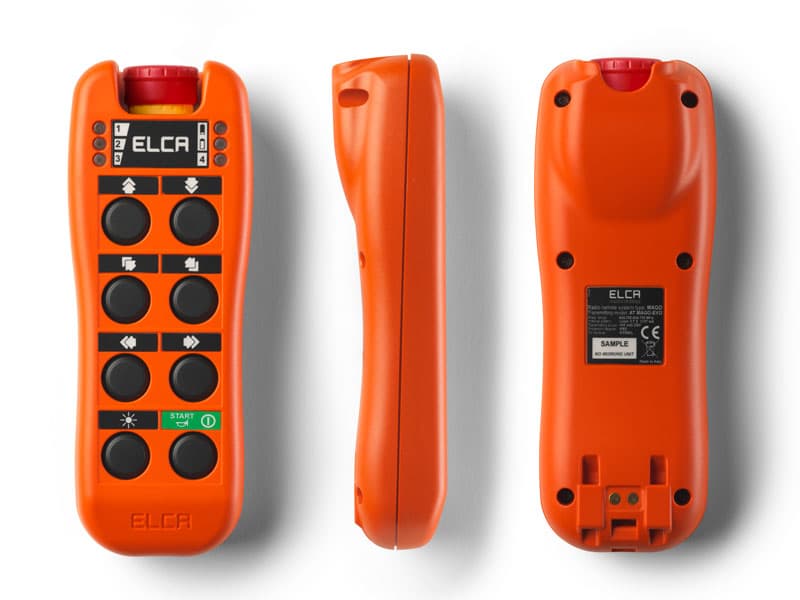

EVO is the handheld remote, compact, lightweight, ergonomic, studied to command machines and industrial systems in the lifting and handling sectors; it is suited for a variety of application demands.

  • It consists of 6 double step push buttons, 1 auxiliary button for programmable functions, Start and Emergency STOP buttons.
  • The electronics are low-power lithium battery (up to 40 hours of continuous use); it is fully recharged in 4 hours and in 15 minutes you get 3 hours of battery life.
  • The hand control stops in the presence of radio disturbance, and at the next Start, it automatically chooses a new available frequency.
  • The "Function" button can be a momentary/latching (with or without memory) command or a selection command (1, 2, 1 + 2), providing led indication of the active selection.
  • EVO receives signals from the commanded machine via a bi-directional system and gives indication on 4 available LEDs.
  • The casing is made of ABS with IP65 protection.
  • The activation of the transmitter is protected by an electronic key-code, the auto shut-off is programmable (after 2, 5, 10 minutes of inactivity).
  • The replacement of the transmitter does not affect the previously stored settings (done via a combination directly from the keys of the keypad).

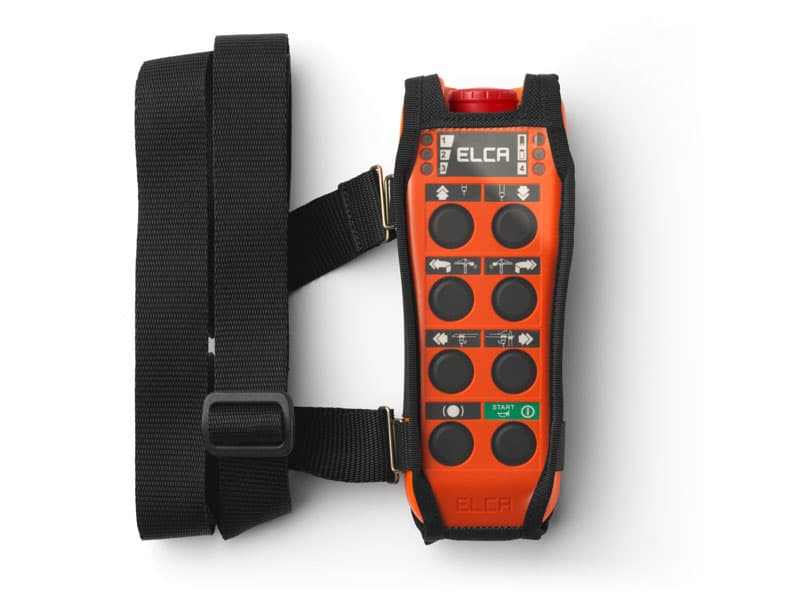

The standard package includes an EVO transmitter, MAGO FLEXI receiver, power supply ELCA-CLIP, protective cover, shoulder belt, wrist belt, and user manual.
