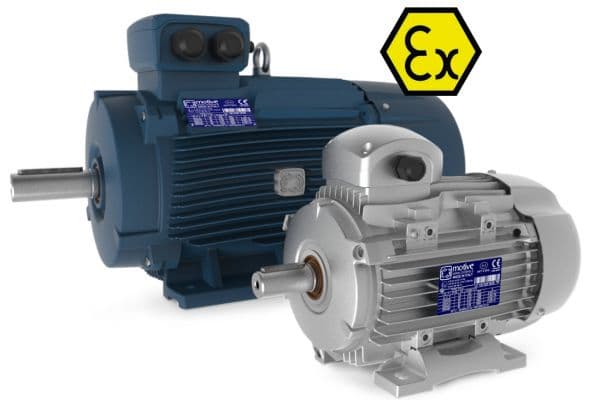

Delphi Ex Motors

ATEX Motor

Description

ATEX certified motors for zones 1-2-21 and 22, Cat. 2 and 3, Dust and Gas.

Prose

ATEX is the conventional name of the Directive 2014/34 EU for the equipment intended for use in potentially explosive atmospheres.

Motive DELPHI Ex motors differ from standard DELPHI motors because they are designed to be used, like motive "Ex" gearboxes, in the ATEX zones 1, 2, 21 and 22.

CatDustGasZoneAtmospheresDELPHI Ex
1Yes0A place in which an explosive atmosphere consisting of a mixture with air of flammable substances in the form of gas, vapor or mist is present continuously or for long periods or frequently.
2Yes1A place in which an explosive atmosphere consisting of a mixture with air or flammable substances in the form of gas, vapor or mist is likely to occur in normal operation occasionally.Yes
3Yes2A place in which an explosive atmosphere consisting of a mixture with air of flammable substances in the form of gas, vapor or mist is not likely to occur in normal operation but, if it does occur, will persist for a short period onlyYes
1Yes20A place in which an explosive atmosphere in the form of a cloud of combustible dust in air is present continuously, or for long periods or frequently
2Yes21A place in which an explosive atmosphere in the form of a cloud of combustible dust in air is likely to occur in normal operation occasionally.Yes
3Yes22A place in which an explosive atmosphere in the form of a cloud of combustible dust in air is not likely to occur in normal operation but, if it does occur, will persist for a short period only.Yes

Motive DELPHI EX motors are in fact certified for such zones according to the norms EN 60079-0 - EN 60079-7 - EN 60079-31 by a notified body

  • II 2G Ex eb IIC T4 Gb

  • II 2D Ex tb IIIC T135°C IP65 Db

  • Tamb=-20 +40 °C

Option only for IE3 motors:

  • II 2G Ex eb IIC T3 Gb

  • II 2D Ex tb IIIC T135°C IP65 Db

  • Tamb=-20 +50 °C
