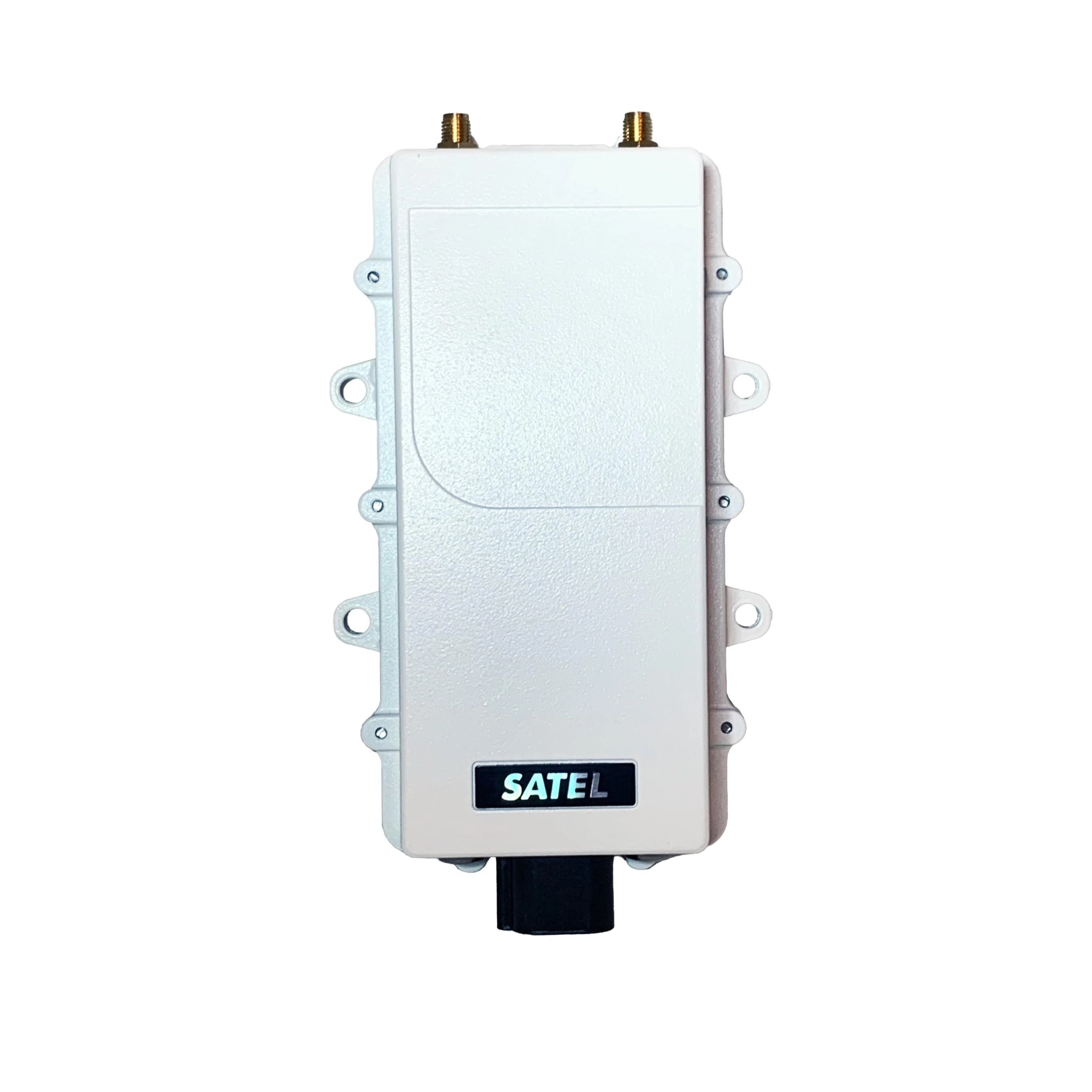

SATEL MCCU-20 LTE
Industrial UHF/VHF ModemRTK transceiver for receiving the GNSS RTK data to a moving vehicle with NTRIP over LTE.
SATEL MCCU-20 LTE
Industrial UHF/VHF ModemRTK transceiver for receiving the GNSS RTK data to a moving vehicle with NTRIP over LTE.
Description

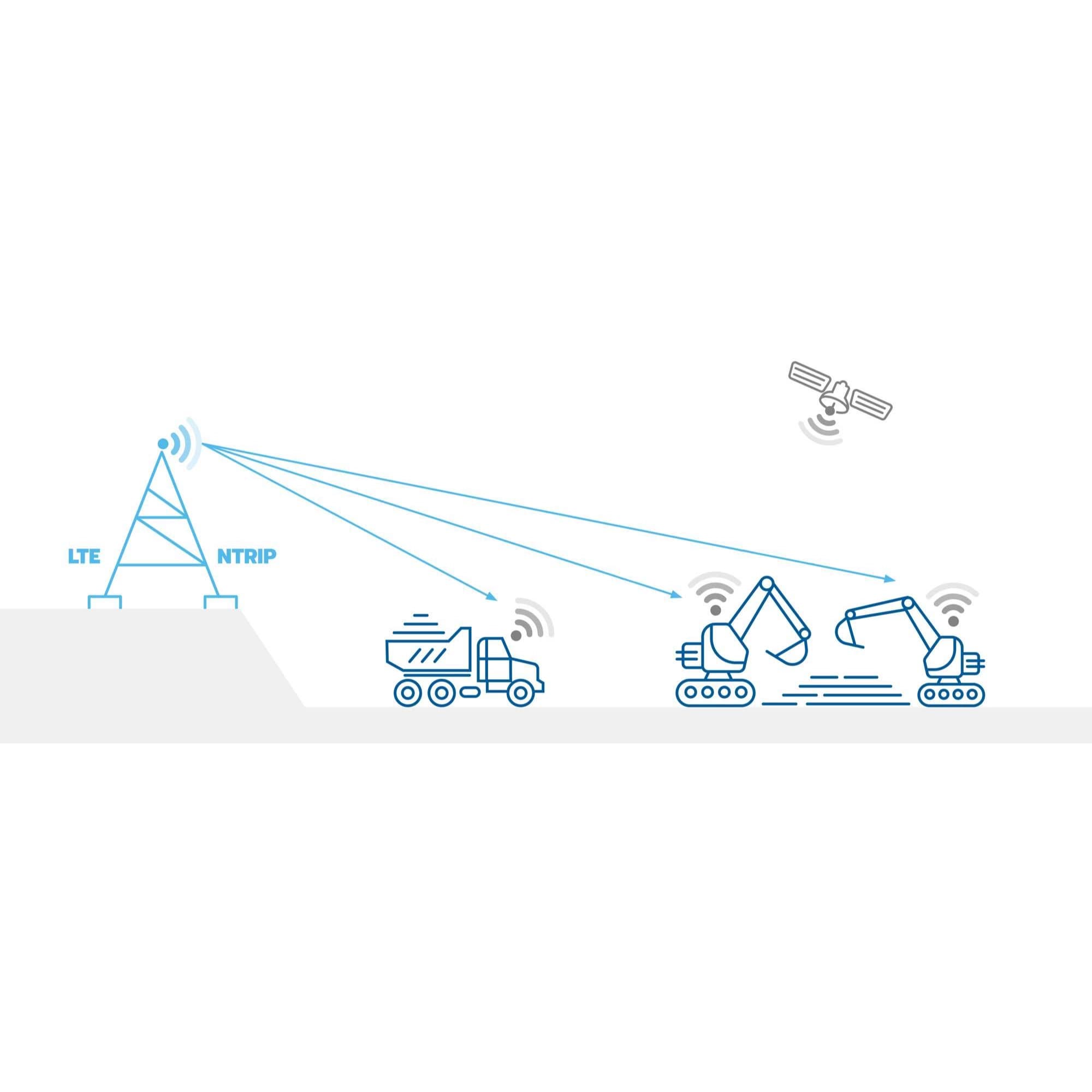

The SATEL MCCU-20 LTE is an RTK transceiver for receiving the GNSS RTK data to a moving vehicle with NTRIP over LTE. It combines ultra-high reliability with robust mechanical design and cyber security.
The SATEL MCCU-20 LTE has IP67 and IP69K classification. It is based on field proven mechanics, and all the electrical connections are equipped with surge protection. It is a perfect solution for harsh environments.
Meeting the requirements
- Ultra-high reliability, often with back-up connectivity
- Cyber security
- Constant and low latency
- Confirmed minimum throughput
- Tolerance for very harsh environments
- Type approvals for main markets are to be carried out.
Specifications
- One communication module
LTE (NTRIP application, NMEA position upstream)
- Serial interface
RS-232 (TD, RD lines)
- Serial data speed
4800 - 460800 bps
- Operating voltage
+9 … +30 VDC (-15% / +20% )
- Operating temperature
-30°C to +70°C (operational)

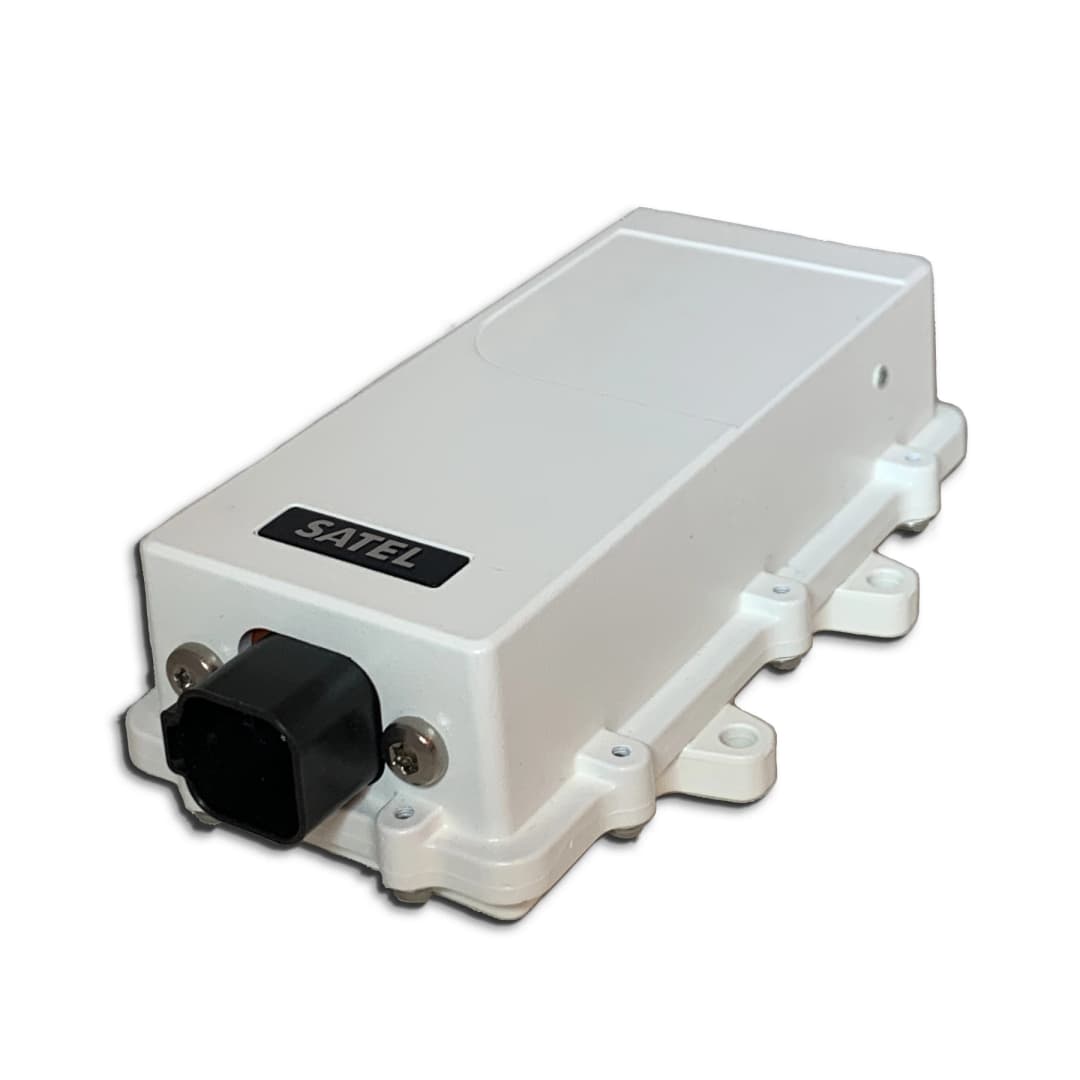

- Interface connector
Deutsch DT04-6P-CL09
- Antenna connector
50 Ohm, 2 x SMA (LTE)
- Power consumption
Typ. 2.4 W (NTRIP receive)
- Housing
Shielded / bare PCB inside a metal housing
- Size / Weight
146 mm x 95 mm x 47 mm / 520 g
- IP classification
IP67 / IP69K
- Cellular bands
GSM: B2/B3/B5/B8
WCDMA: B1/B2/B4/B5/B6/B8/B19
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B26/B28
LTE-TDD: B38/B39/B40/B41
Standards
- Free fall
ISO 16750-3:2012
IEC 60068-2-31:2008
- Mechanical shock (half sine)
ISO 16750-3:2012
IEC 60068-2-27:2008
- Vibration (random)
ISO 16750-3:2012
IEC 60068-2-64:2008
- Ingress Protection
IPX9K IEC 20653:2013
IP67 IEC 60529:2013
- Safety
IEC 62368-1:2018 Edition 3.0
- EMC
EN 301 489-1 v.2.2.3, -3 v.2.1.1
EN 301 489-52 v1.2.1, -19 v2.1.1
EN 55035:2017 + A11:2020
- Radiated emissions
EN 55032:2015 + A11:2020
- Electrostatic discharge
IEC 61000-4-2
Level 4: 4 kV contact, 8 kV air discharge
- Radiated filed immunity
IEC 61000-4-3 (2010-04)
IEC 61000-4-3:2020
Level 20 V/m
- Polarity
Reverse polarity protection
- Temperature and humidity (cyclic)
ISO 16750-4:2006
IEC 60068-2-38:2009
In the EU the product falls under the scope of the radio equipment directive 2014/53/EU (RED). In the USA and Canada, the relevant FCC / ISED parts are fulfilled.
Integrated global roaming eSIM and traditional SIM card slot for local operator's subscription.
