SATEL MCCU-20 LTE / UHF
Industrial UHF/VHF ModemDual-technology RTK transceiver for receiving the GNSS RTK correction data.
SATEL MCCU-20 LTE / UHF
Industrial UHF/VHF ModemDual-technology RTK transceiver for receiving the GNSS RTK correction data.
Description

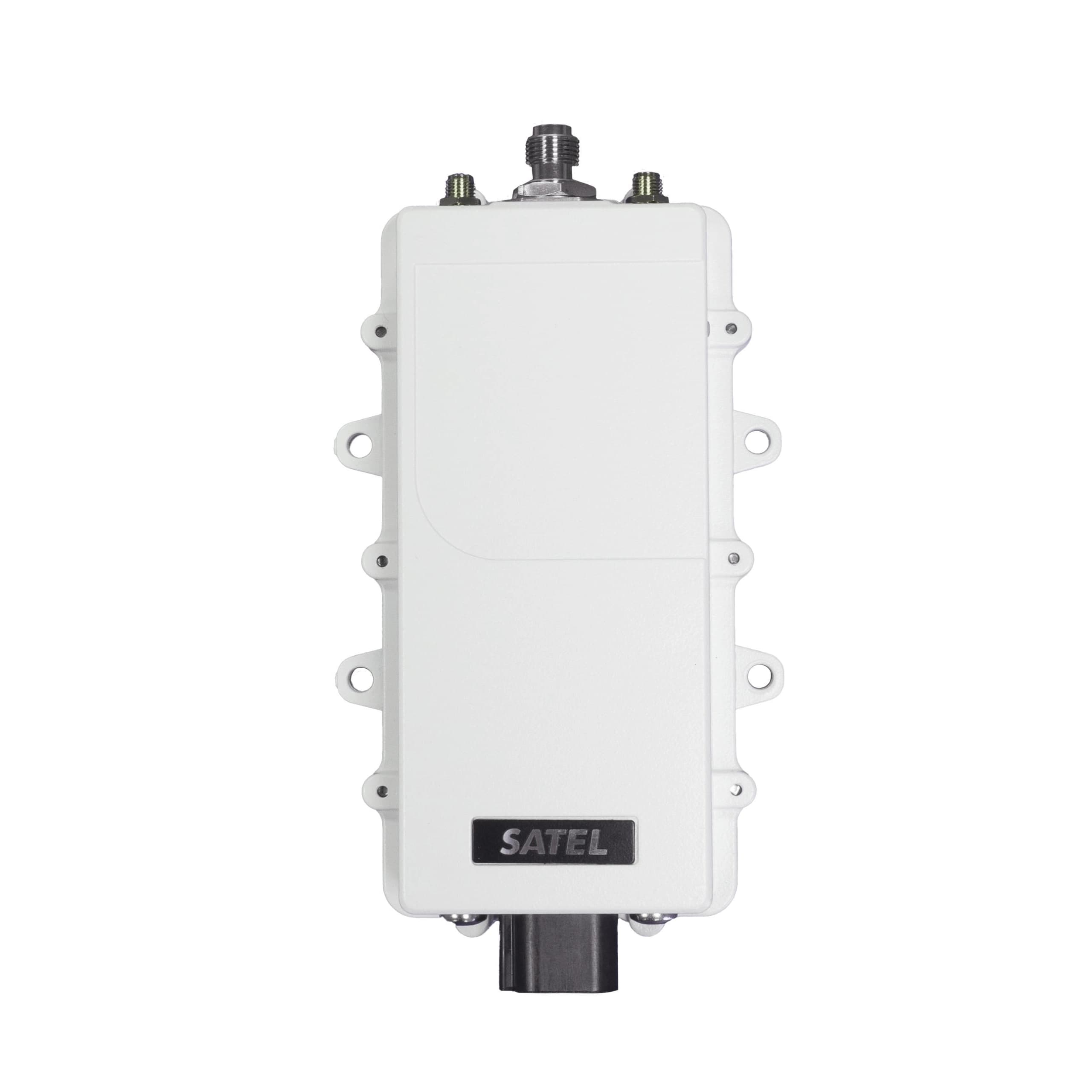

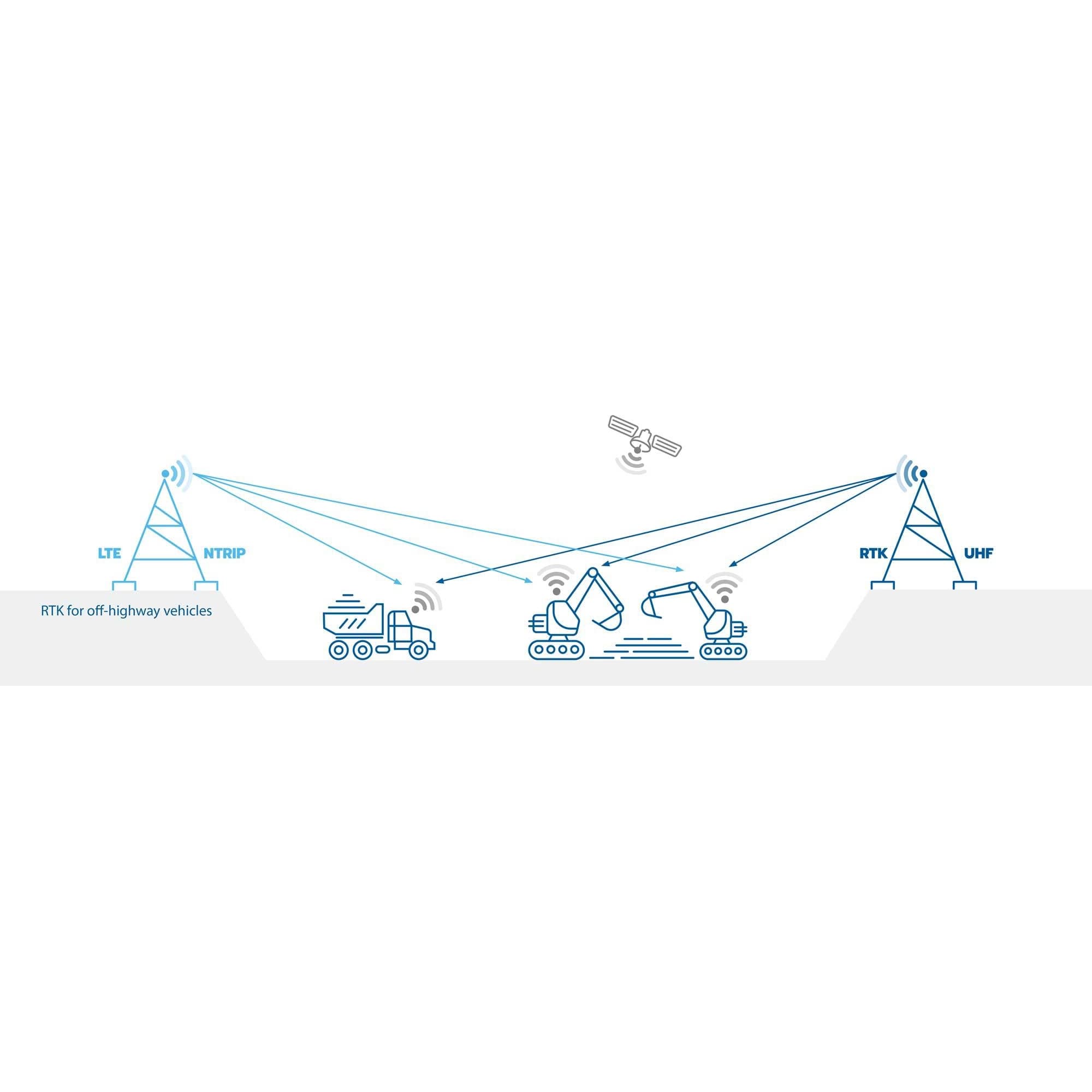

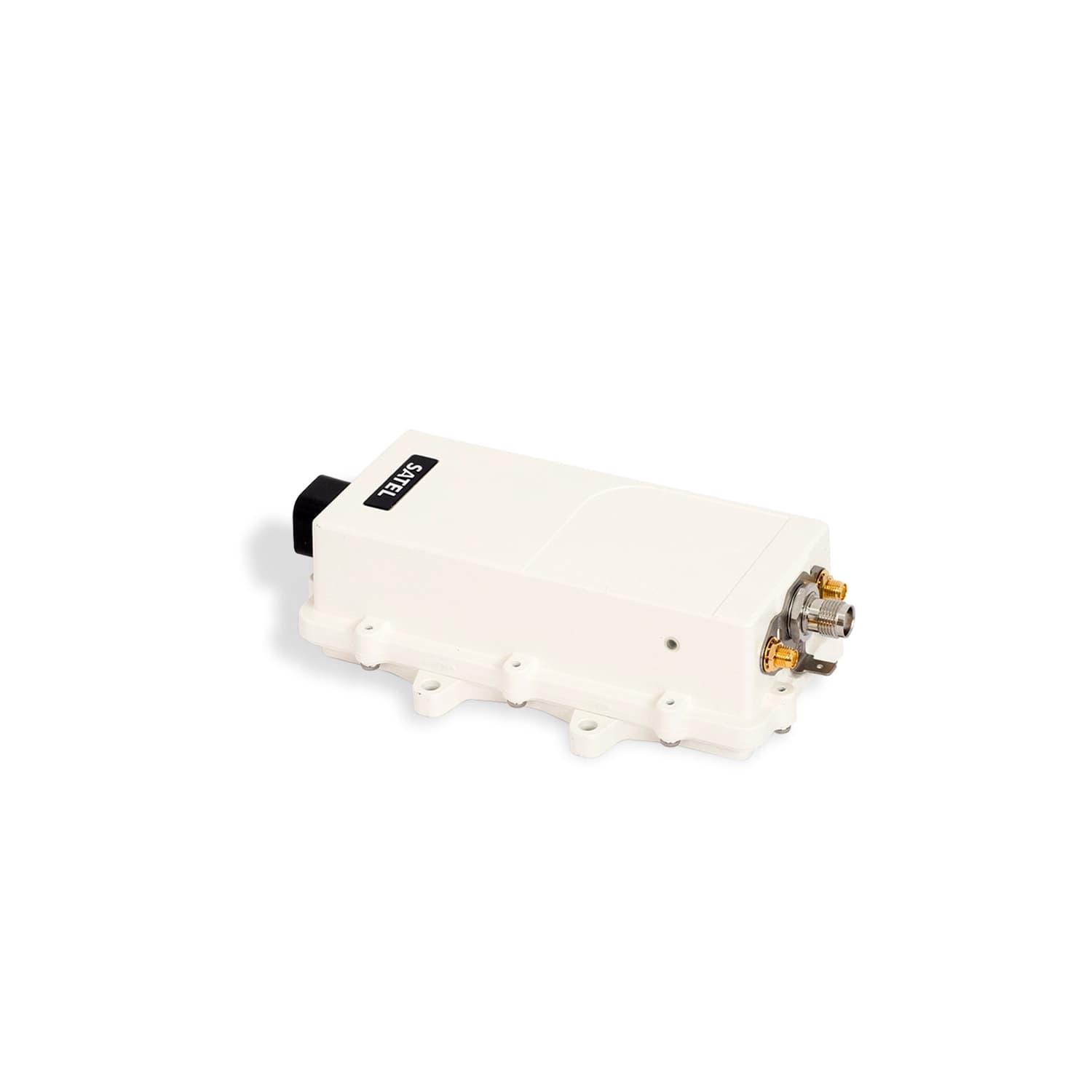

The SATEL MCCU-20 LTE / UHF is a unique dual-technology RTK transceiver for receiving the GNSS RTK correction data to a moving vehicle with UHF radio based RTK or NTRIP over LTE. The RTK correction data is forwarded over RS-232 serial communication to machine control system.
Prose
Connectivity in harsh environments
The MCCU (Mission-Critical Connectivity Unit) platform is designed to resolve connectivity challenges in harsh environments. It delivers mission-critical signaling from relatively small machine control messages with constant latency to wideband and low latency camera stream. The SATEL MCCU-20 LTE / UHF has IP67 and IP69K classification and it withstands vibration and shock. It is based on field proven mechanics, and all the electrical connections are equipped with surge and ESD (Electrostatic Discharge) protection.
Easy integration
The machine and vehicle manufacturers and machine control system providers can integrate SATEL MCCU-20 LTE / UHF to their offering without knowing what kind of technology is available in the operating area. The vehicle can be operated under varying connectivity environments.
Mission-critical connectivity
- RTK correction signaling for centimeter level positioning accuracy
- Collision avoidance signaling (CAS)
- Machine to machine commands (V2V also V2X)
- Secure firmware updates
- Central control signal
- Safety signaling
- Mission-critical telematics Type approvals for main markets are to be carried out.
Specifications
- Two communication modules
LTE: (NTRIP application, NMEA position upstream)
UHF: 410 …475 / 902 … 928 MHz radio (RTK Receiver)
- Serial interface
RS-232 (TD, RD lines)
- Serial data speed
4800 - 460800 bps
- Operating voltage
+9 … +30 VDC (-15% / +20% )
- Operating temperature
-30°C to +70°C (operational)
- Interface connector
Deutsch DT04-6P-CL09
- Antenna connector
50 Ohm, 2 x SMA (LTE) / 1 x TNC (UHF)
- Power consumption
Typ. 2.4 W (NTRIP receive) / Typ. <1 W (RTK receive)
- Housing
Shielded / bare PCB inside a metal housing
- Size / Weight
174 mm x 95 mm x 47 mm / 520 g
- IP classification
IP67 / IP69K
- Cellular bands
GSM: B2/B3/B5/B8
WCDMA: B1/B2/B4/B5/B6/B8/B19
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B26/B28
LTE-TDD: B38/B39/B40/B41
Standards
- Free fall
ISO 16750-3:2012
IEC 60068-2-31:2008
- Mechanical shock (half sine)
ISO 16750-3:2012
IEC 60068-2-27:2008
- Vibration (random)
ISO 16750-3:2012
IEC 60068-2-64:2008
- Ingress Protection
IPX9K IEC 20653:2013
IP67 IEC 60529:2013
- Safety
IEC 62368-1:2018 Edition 3.0
- EMC
EN 301 489-1 v.2.2.3, -3 v.2.1.1
EN 301 489-52 v1.2.1, -19 v2.1.1
EN 55035:2017 + A11:2020
- Radiated emissions
EN 55032:2015 + A11:2020
- Electrostatic discharge
IEC 61000-4-2
Level 4: 4 kV contact, 8 kV air discharge
- Radiated filed immunity
IEC 61000-4-3 (2010-04)
IEC 61000-4-3:2020
Level 20 V/m
- Polarity
Reverse polarity protection
- Temperature and humidity (cyclic)
ISO 16750-4:2006
IEC 60068-2-38:2009
In the EU the product falls under the scope of the radio equipment directive 2014/53/EU (RED). In the USA and Canada, the relevant FCC / ISED parts are fulfilled.
Integrated global roaming eSIM and traditional SIM card slot for local operator's subscription.
