Product Description
SATEL Proof-R4+
Industrial UHF/VHF ModemIP69K sealed housing and a receiver only radio module with wide 70 MHz tuning range for frequencies 403 … 473 MHz.
SATEL Proof-R4+
Industrial UHF/VHF ModemIP69K sealed housing and a receiver only radio module with wide 70 MHz tuning range for frequencies 403 … 473 MHz.
Description

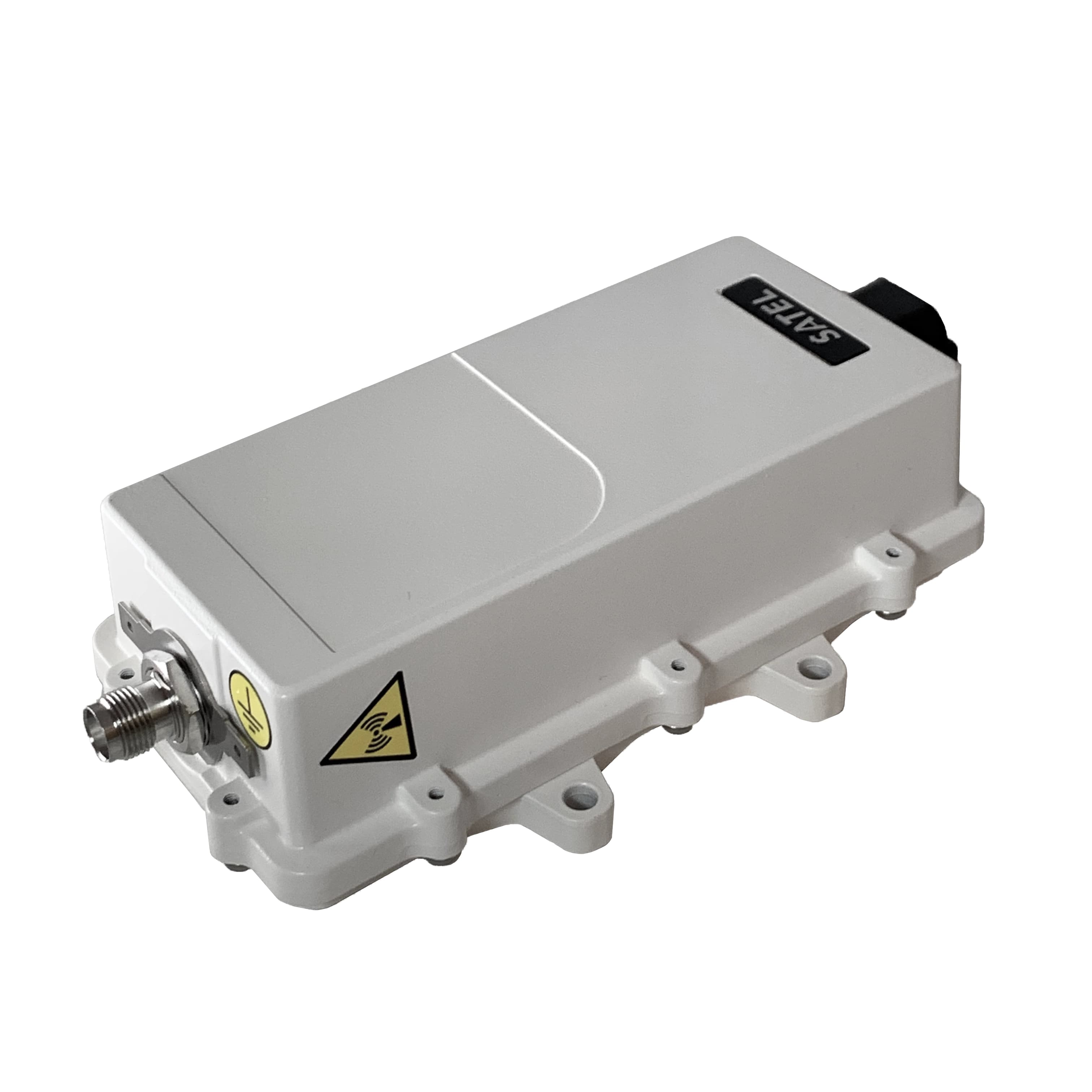

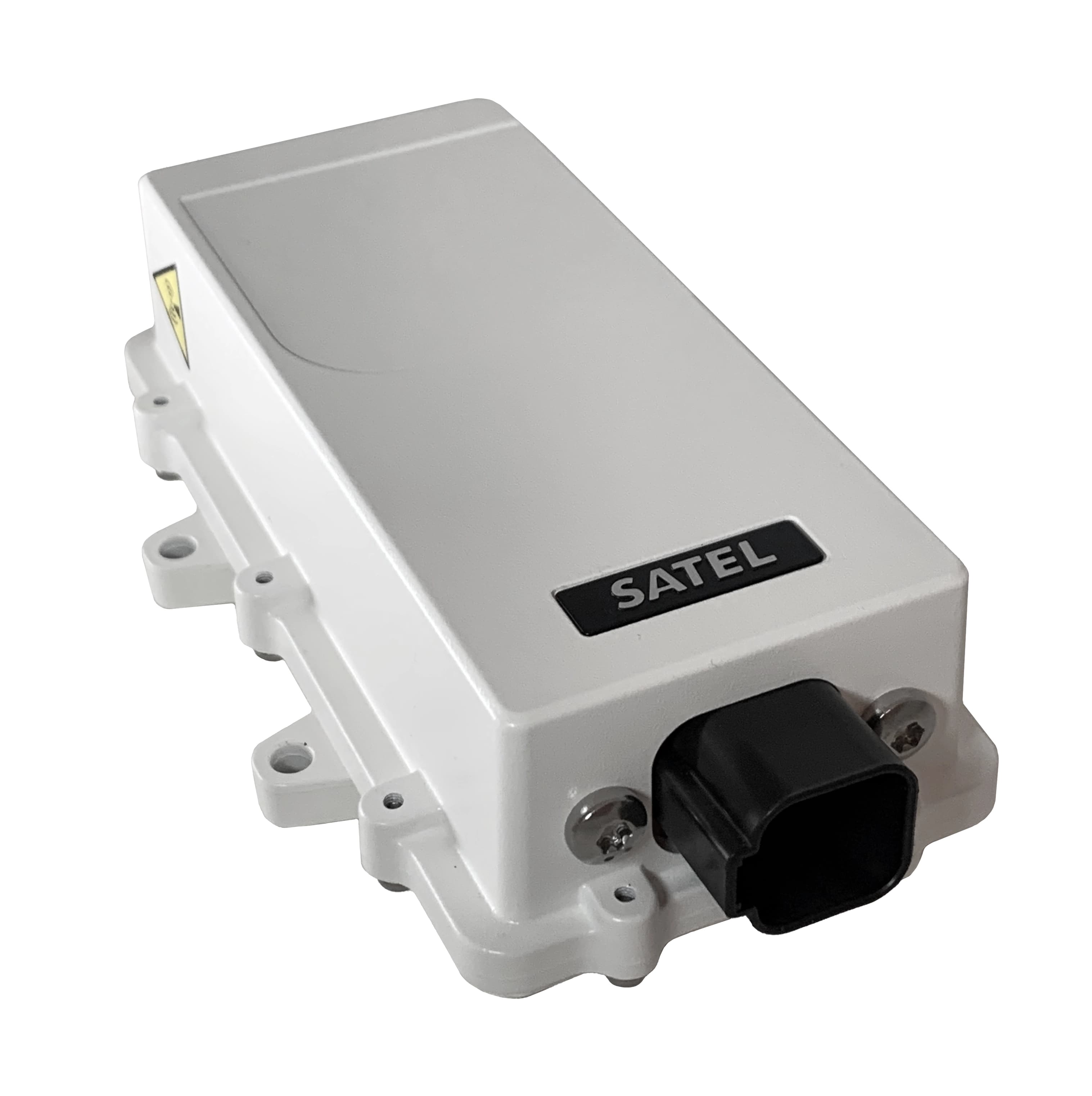

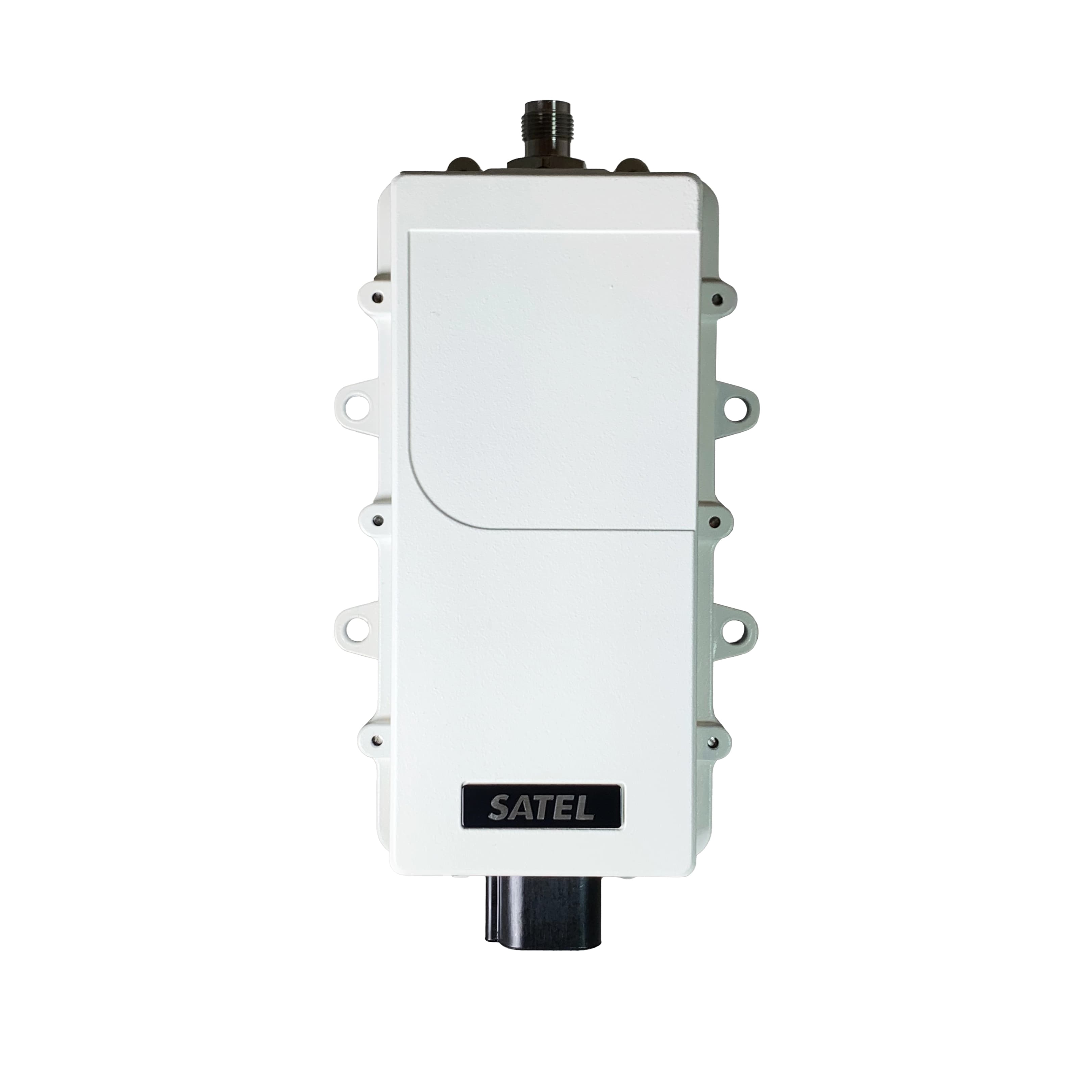

SATEL Proof-R4+ is a heavy-duty receiver only radio modem that meets the requirements of machine control and smart farming and marine applications. It is built to last dirt, vibration, sand, dust, liquids and lightning. It is a flexible and cost-effective solution that has profound electrical protection; both the power and data lines as well as the antenna interface are surge protected. It also has additional filtering on GNSS frequencies.
SATEL Proof-R4+ consists of an IP69K sealed housing and a receiver only radio module with wide 70 MHz tuning range for frequencies 403 … 473 MHz.
The SATEL Proof-R4+ receiver radio modem is compatible with SATEL-EASy+ / -TR4+ / SATELLINE-EASy / -TR1 based radio modems as well as several other radio protocols.
SATEL Proof-R4+ (YM6597) with AES encryption support
SATEL Proof-R4+ (YM6596) without AES encryption support
Specifications
- Frequency range
403 .. 473 MHz
- Channel spacing
6.25*, 12.5, 20* and 25 kHz, software selectable
* uses 12.5 kHz channel width
- Sensitivity
-118 … -105 dBm
- Interface
RS-232 (TD, RD lines)
- Data speed
Serial max.: 115200 bps
Radio max.: 28800 bps
- Operating voltage range
+7 … +27.5 Vdc (-15% / +20%)
- Connectors

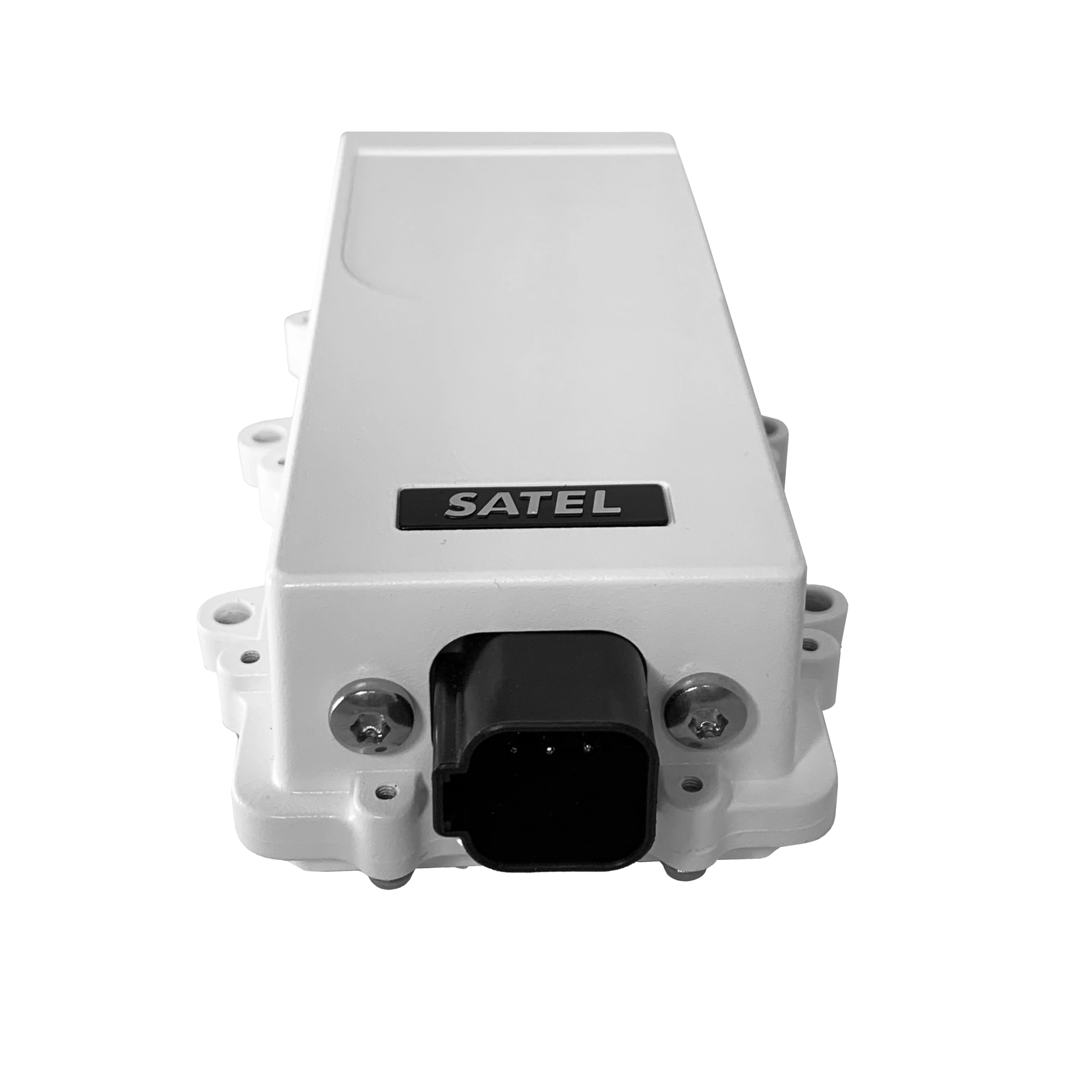

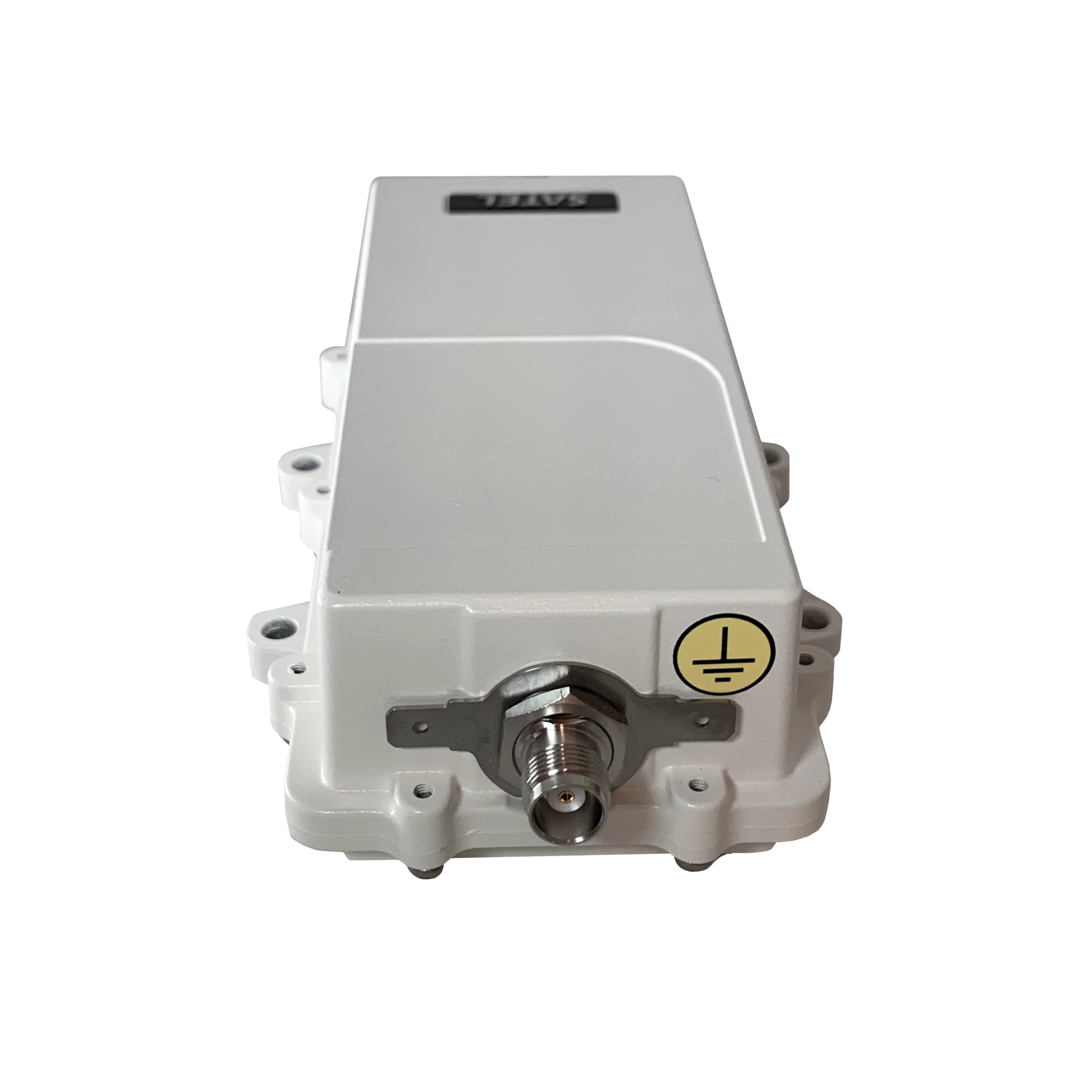

Deutsch DT04-6P-CL09 / TNC female
- Size / Weight
174 x 95 x 46 mm / <500 g
- IP classification
IP69K
- Encryption support
AES128 as default / AES256 as an order option
