Product Description
Description

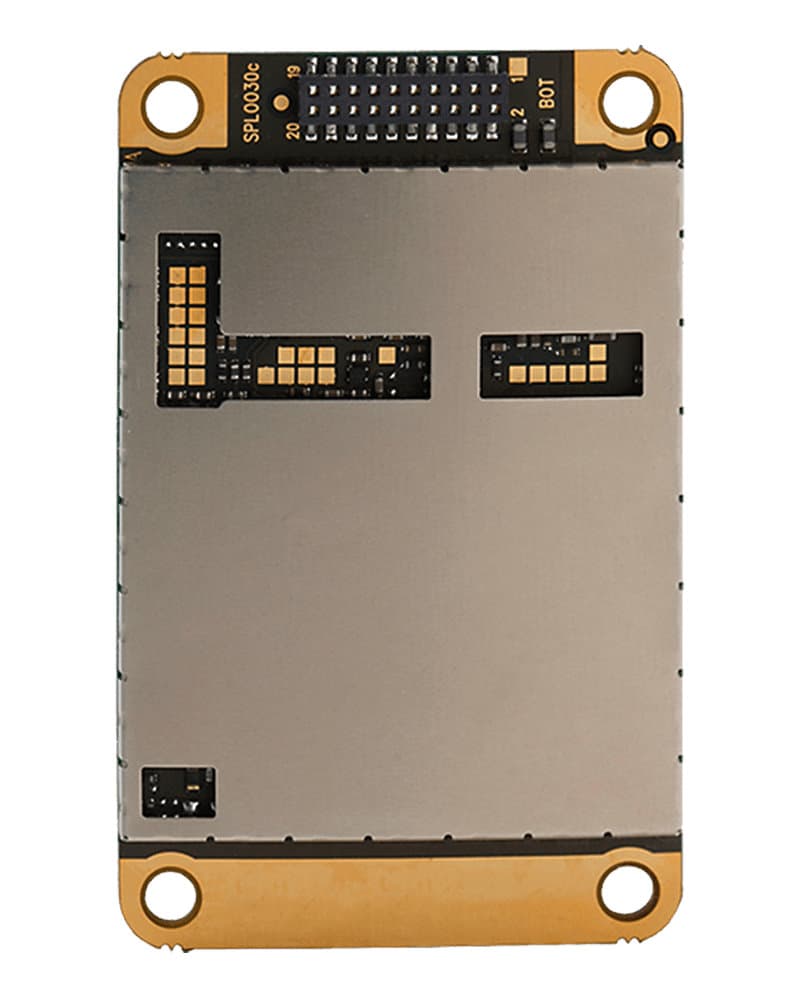

SATEL-R4+ is a new UHF data receiver module suitable for different uses. The radio module is easy to integrate into a host device, for instance GNSS correction data transfer in a land surveying rover.
- 70 MHz tuning range (403…473 MHz)
- Selectable channel width 12.5 and 25 kHz
- Extended operating voltage range
- Moderate power consumption
- Models with AES encryption support available
YM7495 SATEL-R4+, Connector at BOTTOM, no encryption support
YM7496 SATEL-R4+, Connector at TOP, no encryption support
YM7490 SATEL-R4+ Connector at BOTTOM, with encryption support
YM7491 SATEL-R4+ Connector at TOP, with encryption support
Prose
Easy configuration and wide compatibility
The radio module configuration can be done with the SATEL SL-commands or SATEL Configuration Manager -software.
SATEL-R4+ can be added to existing systems; it is compatible with widely used SATELLINE-EASy radio modem family members and it supports also other manufacturers' radio protocols.
Specifications
- Frequency range
403 … 473 MHz
- Tuning range
70 MHz
- Channel spacing
6.25*, 12.5, 20* and 25 kHz, software selectable
* uses 12.5 kHz channel width
- Sensitivity
See the brochure
- Interface
CMOS / UART
- Data speed
Radio 28800 bps / Serial 115200 bps
- Operating voltage
+3.8 … +5.5 Vdc
- Power consumption
0.86 W (RX), 0.3 W (Sleep)
- Size/Weight
57 x 36 x 6.9 mm / 20 g
- Connectors
1.27 mm pitch socket / U.FL
