Product Description
Description

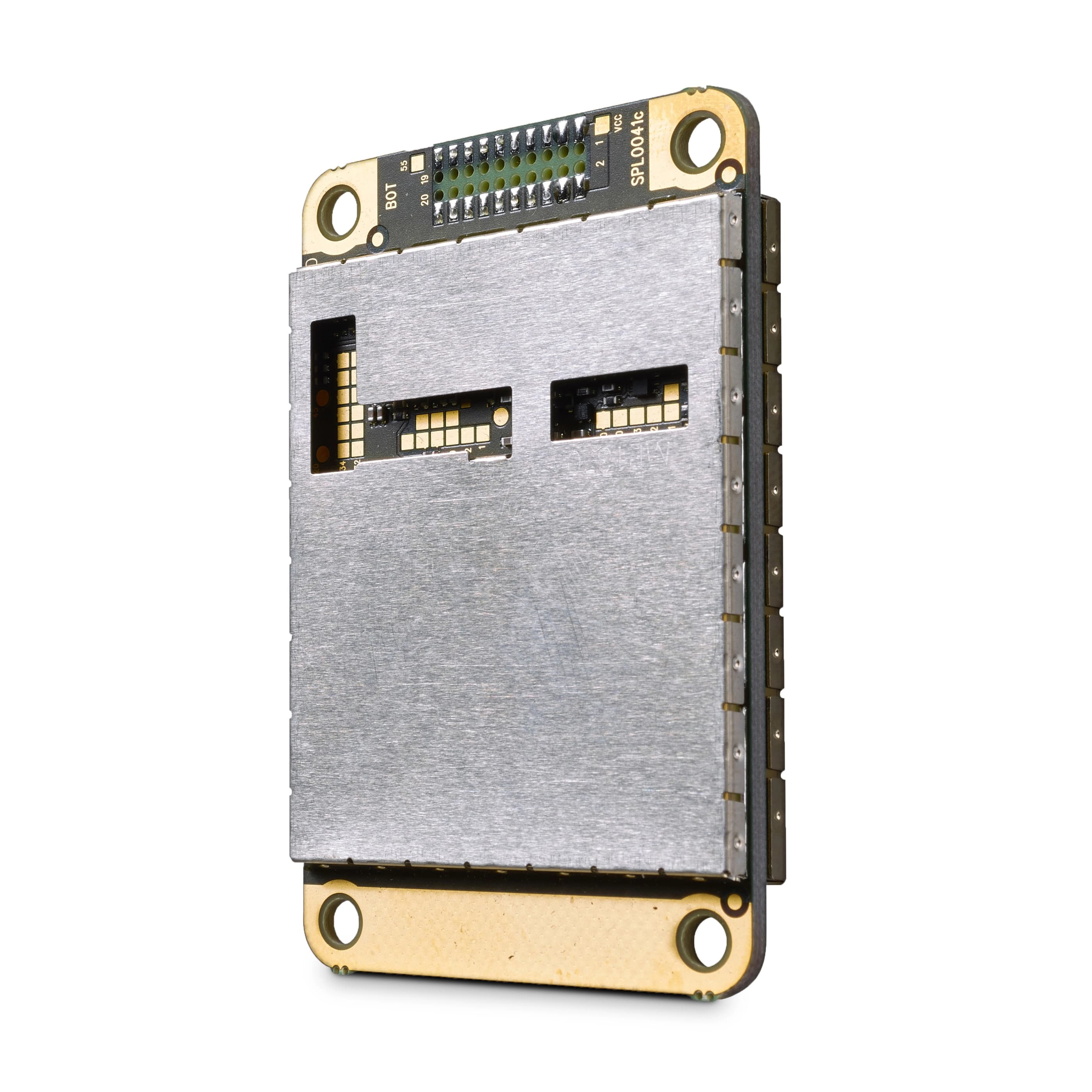

SATEL-TR300 is a UHF data transceiver module in a lightweight single board structure. It is designed to be integrated into a host device or into the customer's own housing. Excellent choice for GNSS industry in Asia and utility business in the Middle East due to frequency band 320…380 MHz.
-
60 MHz tuning range (320…380 MHz) and selectable channel width (6.25, 12.5 and 25 kHz)
-
Extended operating voltage range
-
Moderate power consumption
-
AES128 support as default, AES256 as an order option
-
Polling Protocol as an order option
SATEL-TR300 Region all, with AES128 encryption support DTE BOTTOM (YM7300)
SATEL-TR300 Region all, without AES128 encryption support DTE BOTTOM (YM7305)
SATEL-TR300 Region all, without AES128 encryption support DTE TOP (YM7315)
Prose
Easy installation and configuration

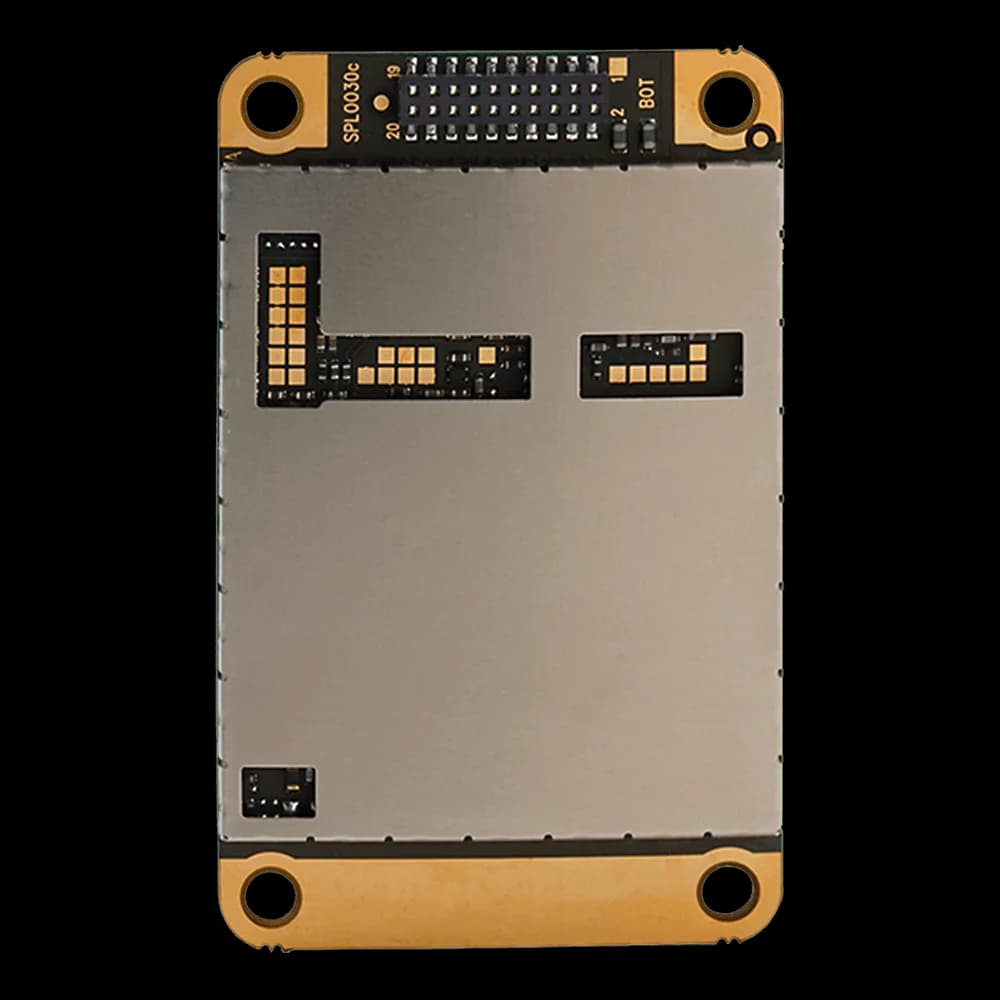

SATEL-TR300 is supplied without a housing in PCB format with RF-shielding, facilitating installation into the customer's own housing or into a host device, for example to transfer GNSS correction data in a land surveying rover or RTK base station. The radio module configuration can be done with the SATEL SL-commands or SATEL Configuration Manager software.
Compatible and customizable
SATEL-TR300 is compatible with widely used SATEL radios, such as SATEL-EASy+ and SATELLINE-EASy in the corresponding frequency range. SATEL GO radio modules match all the needs of OEM customers. Please contact us or our nearest distributor for various possibilities to create a customized solution for you.
Specifications
- Frequency range
320 …. 380 MHz
- Tuning range
60 MHz
- Channel width
6.25 / 12.5 / 20 / 25 kHz (software selectable)
- Encryption support
AES128 default, AES256 as an order option
- Modulation
4FSK, 8FSK, 16FSK (GMSK*)
- Power consumption, typical
typical 0.9 W (RX), 6.4 W (TX), 0.5 W (Sleep)
- Carrier power
0.01…1 W
- Size / weight
57 x 36 x 6.9 mm / 20 g
* Ask availability
