Product Description
Description

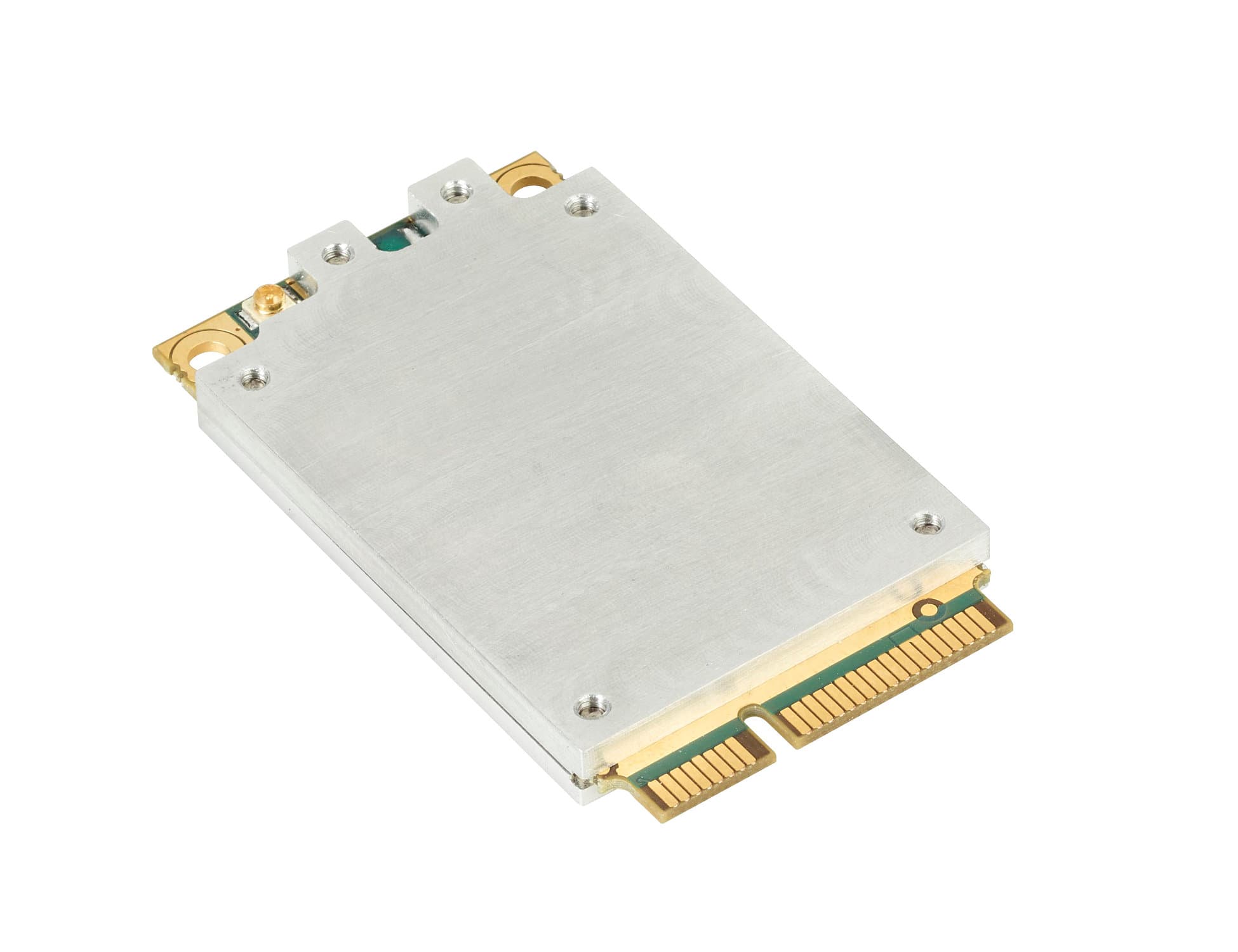

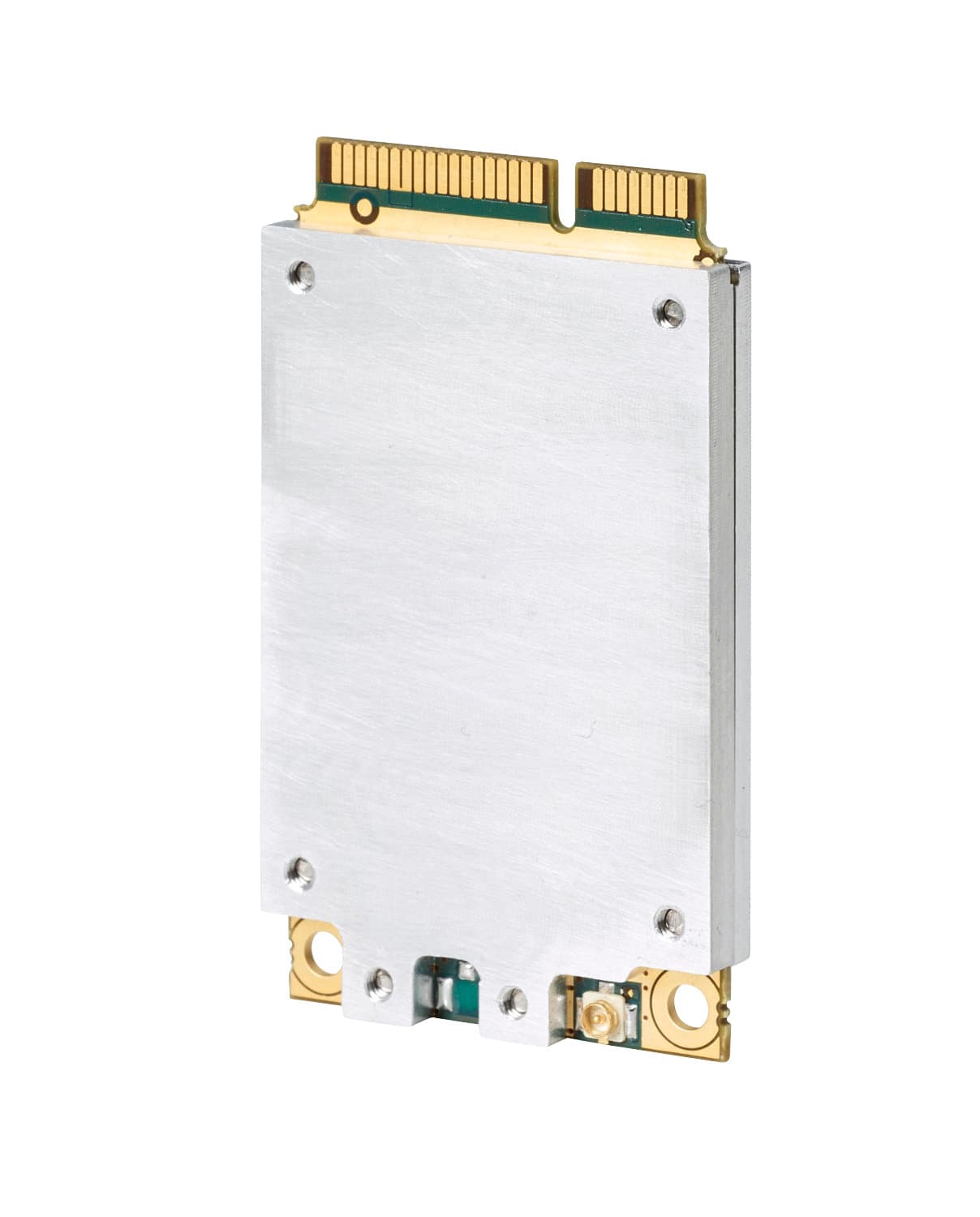

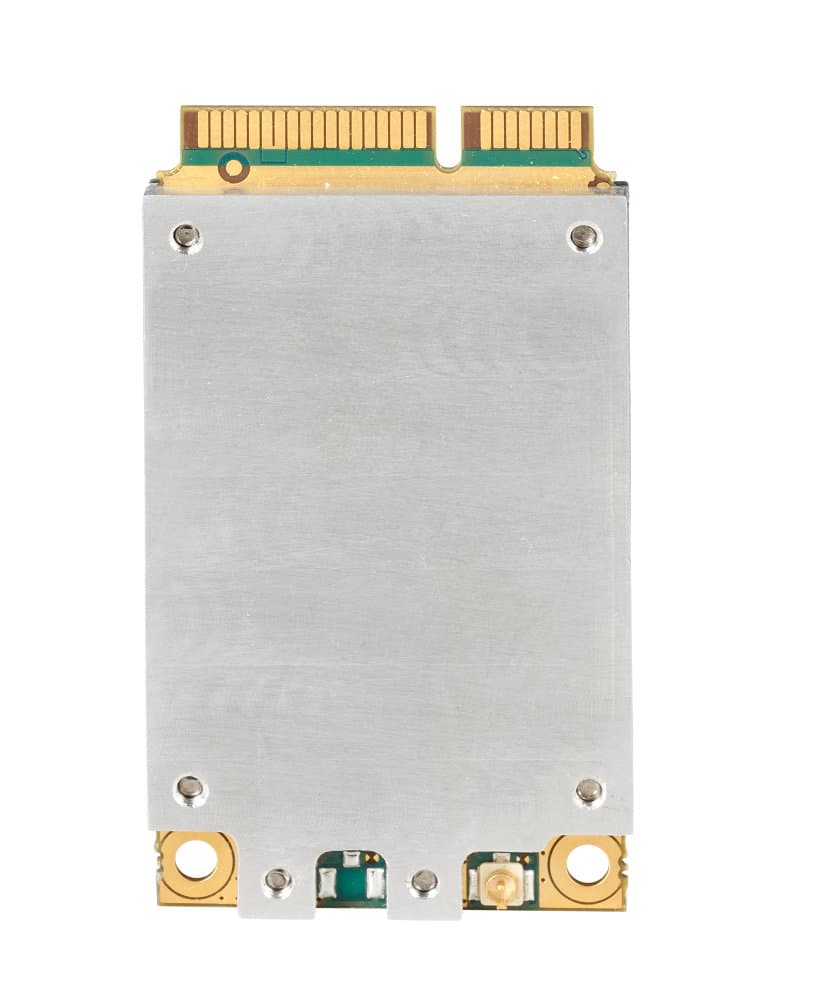

SATEL-TR49 SnapOn is a dual band and multimode transceiver that fits into a standard Mini PCIe bus. This makes it compatible with millions of equipment already in the market, and the integration is easy. If there is a Mini PCIe bus, it can replace other technologies such as cellular and LoRa. The radio module uses the 410-475 MHz and 902-928 MHz bands.
- Ultra-compact design
- Easy integration and deployment
- Possibility of power over USB (max 500 mW, more with extra input)
- Robust mounting and interfaces
SATEL-TR49 SnapOn with AES128 encryption support, all region (YM8600)
SATEL-TR49 SnapOn without AES128 encryption support, all region (YM8605)
SATEL-TR49 SnapOn with AES128 encryption support, US/CA region (YM8610)
SATEL-TR49 SnapOn without AES128 encryption support, US/CA region (YM8615)
Specifications
- Frequency range
410 … 475 / 902 … 928 MHz
- Vibration tolerance
25 g, up to 2 kHz sinusoidal (over 90 % packet success rate)
- Operating voltage
3.3 ± 9% VDC
- Power consumption
440 mW (RX) / 3.4 W (TX at 1 W RF power)
- Input I/F
USB 2.0
- Operating temperature
-40 … +70 °C
- Size
51 x 30 x 4.75 mm
- Weight
10 g
- Antenna Connector
U.FL
- Form Factor
PCIe MiniCard full size
- 902 ... 928 MHz
- Data rate
115.2 kbit/s
- Output power
10 mW … 1 W
- Modulation
2-GFSK
- Occupied bandwidth
230 kHz
- Protocol modes
Point to Multipoint, Point to Point
- Spreading method
Frequency hopping
- Hopping bands
7, user selectable
- Hopping patterns
15 per band, 105 total, user selectable
- Hopping channels
50-112, user selectable
- Frequency zones
16 zones, 7 channels per zone
- Receiver sensitivity
-109 dBm for 10-4 BER
- Data speed of serial interface
9600-115200 bps
- 410 ... 475 MHz
- Data rate
9600 bits/s (12.5 kHz channel), 19200 bits/s (25 kHz channel)
- Output power
10 mW … 1 W
- Modulation
4-GFSK
- Channel widths
12.5 and 25 kHz
- Receiver sensitivity
-120 dBm for 1% BER (12.5 kHz)
- Data speed of serial interface
9600-115200 bps
