Satel

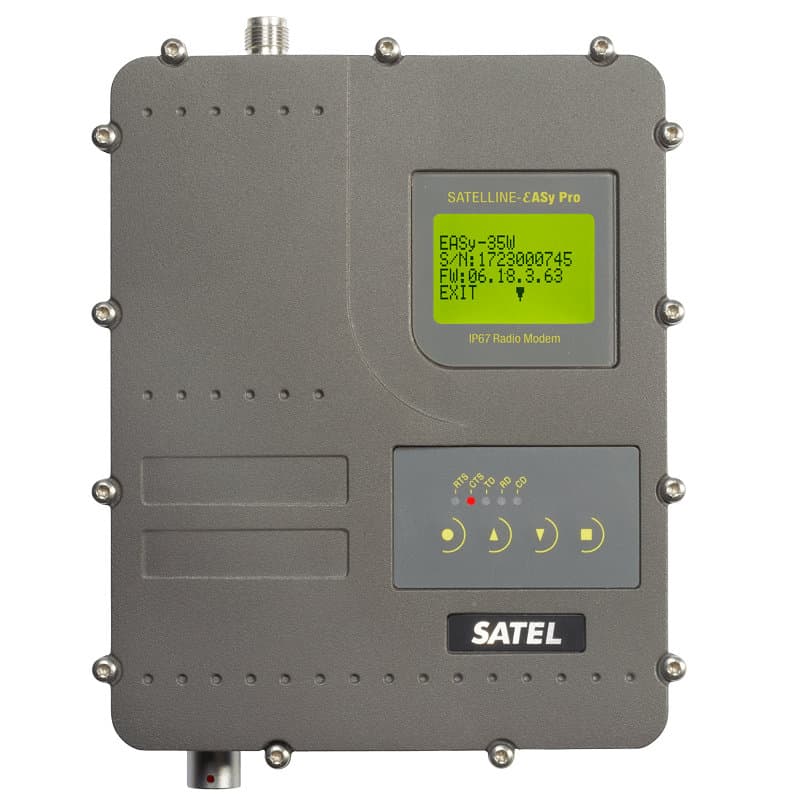

SATELLINE-EASy Pro

Industrial UHF/VHF Modem

IP67 (NEMA 6) classified UHF radio modem with high 35W output power and wide tuning range.

Description

SATELLINE-EASy Pro is an IP67 classified UHF radio modem with a high power transmitter, a wide 70 MHz tuning range and selectable channel spacing. It is particularly well suited for outdoor use under varying weather conditions, e.g. land surveying. Due to the high transmitting power, connection distances of up to 80 kilometers can be covered.

Models
  • SATELLINE-EASy Pro (YM6803), by default with 35W output power

  • SATELLINE-EASy Pro with AES128 encryption support (YM6813)

  • 25W limited output power version as an order option

Prose

Heavy-duty tool for outdoor use

According to the IP67 standard, the casing and connectors of the SATELLINE-EASy Pro are waterproof and secured against dust. The radio modem is equipped with a Liquid Crystal Display (LCD), used to indicate the current operating status (frequency, channel number, power level, voltage level, field strength), as well as for changing the setups of the radio modem.

  • High 25 or 35W output power
  • Wide 70 MHz tuning range (403 … 473 MHz)
  • Selectable channel spacing 12.5 / 20 / 25 kHz
  • IP67 classified housing
  • Model with AES128 encryption support available

Reliable data transfer

In the SATELLINE-EASy Pro the error rate is minimized by means of advance checking and correction of the data packets. In Forward Error Correction (FEC), the data packets are split in several blocks. The radio modem adds correction information inside the blocks during transmission.

In this radio network any substation can function as a repeater. In this operating mode (store and forward), the radio modem receives a message, buffers the received data, and transmits it to another substation, using the same radio channel as in reception.

SATELLINE-EASy Pro features embedded Message Routing software, which takes care of routing messages across a radio modem network automatically after proper settings have been made. Communication is completely transparent, which makes Message Routing directly compatible with most user protocols.

Flexible and cost-efficient choice

SATELLINE radio modem networks are flexible, easy to expand and they can cover a wide variety of solutions from simple point-to-point connections to large networks consisting of hundreds of modems. Setting up a local data transfer network is quick and cost effective.

SATELLINE-EASy Pro is compatible with other SATELLINE-EASy modems and also modules.

Specifications

Frequency range

403 … 473 MHz

Tuning range

70 MHz

Channel spacing

12.5 / 20 / 25 kHz software selectable

Sensitivity / Carrier power

-114 dBm / 25 W or 35 W

Interface

RS-232

Data speed

Radio 19200 / RS 38400 bps

Operating voltage range

+9 … +16 VDC (≥ +12 VDC @ 35 W)

Power consumption

RX 1.8 W / TX 120W (with 35W output power)

Size

189 x 138 x 71mm with connectors

Weight

1420 g

Connectors

8-pin ODU / TNC f / 4-pin ODU
