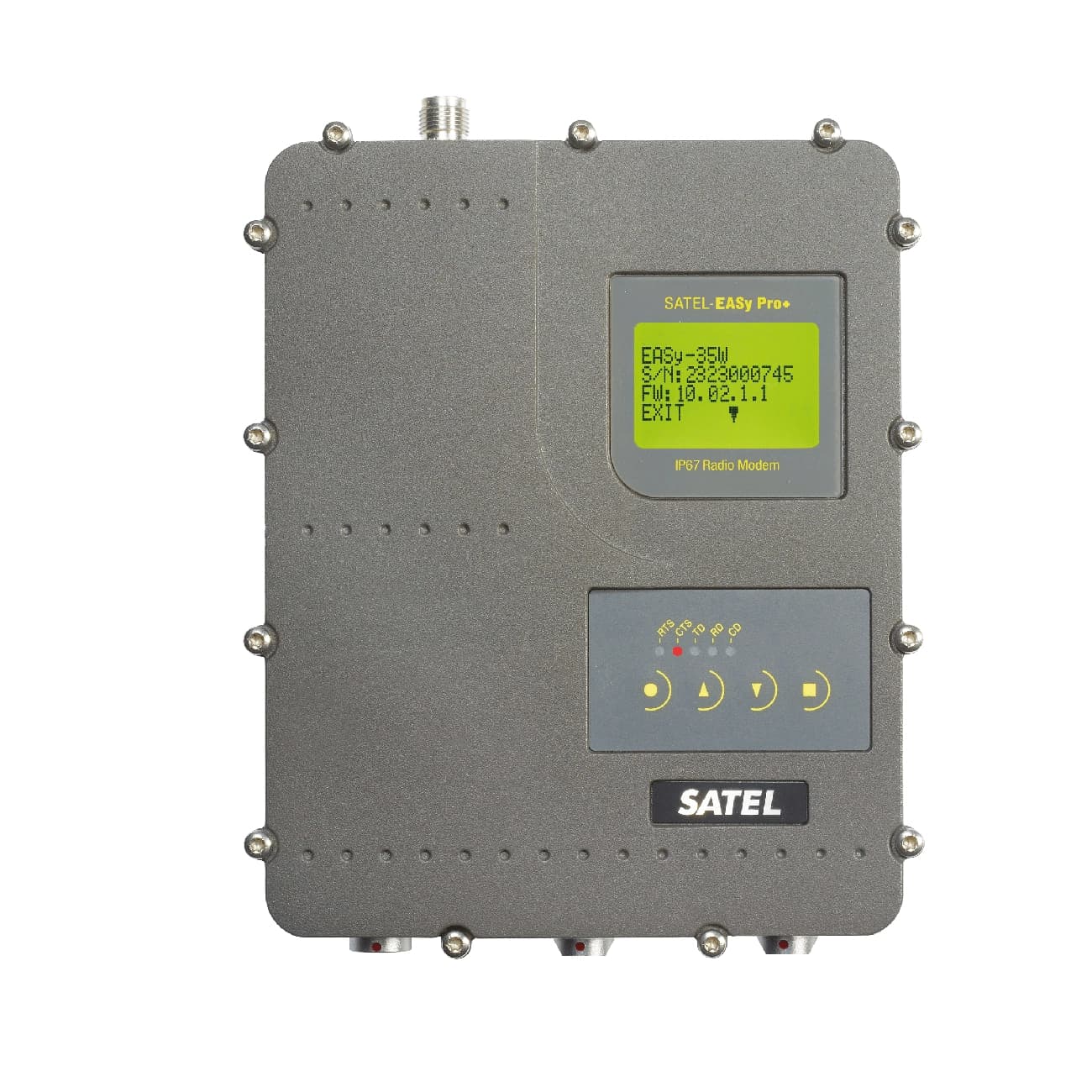

SATELLINE-EASy Pro+
Industrial UHF/VHF ModemIP67 classified UHF radio modem with a high power transmitter, wide tuning range (403…473 MHz).
SATELLINE-EASy Pro+
Industrial UHF/VHF ModemIP67 classified UHF radio modem with a high power transmitter, wide tuning range (403…473 MHz).
Description
SATEL-EASy Pro+ is an IP67 classified UHF radio modem with a high power transmitter, wide tuning range (403…473 MHz) in one hardware and selectable channel spacing.
Supported AES128 (by default) / AES256 (as an order option) encryption on radio channel increases the data security. Due to the high transmitting power, connection distances more than 80 kilometres can be covered in favourable conditions.
SATEL-EASy Pro+ is compatible with widely used SATELLINE-EASy and SATEL-EASy+ product families too as well as some obsolete radio modem models, such like SATELLINE-4Pro, SATELLINE-3AS NMS and SATELLINE-3AS Epic NMS.
Future options include for example lower frequency band 320…380 MHz.
Models with one serial port RS-232 for data (with NMS features, no diagnostic port). Note: Dual serial port model is needed for NMS master operation.
YM6820 is with AES128 encryption support, 25 W, for EU
YM6823 is with AES128 encryption support, 35 W
YM6825 is w/o encryption support, 25 W, for EU
YM6830 is with AES128 encryption support, 25 W, for AU
YM6833 is w/o encryption support, 35 W
YM6835 is w/o encryption support, 25 W, for AU
YM6840 is with AES128 encryption support, 35 W, for BR*
YM6845 is w/o encryption support, 35 W, for BR*
Models with dual serial port, RS-232 by default, RS-485/-422 data ports optional (with NMS features and diagnostic port) * Ask availability
YM6843 is with AES128 encryption support, 35 W*
YM6853 is w/o encryption support, 35 W*
YM6860 is with AES128 encryption support, 25 W, for EU*
YM6865 is w/o encryption support, 25 W, for EU*
YM6870 is with AES128 encryption support, 25 W, for AU*
YM6875 is w/o encryption support, 25 W, for AU*
Specifications
- Frequency range
403 … 473 MHz
- Tuning range
70 MHz
- Channel spacing
12.5 / 20 / 25 kHz software selectable
- Sensitivity max. / Carrier power
-114 dBm / 1 … 35 W (Limited 25 W output power is available as an order option)
- Interface
RS-232 / HW model with data port 2: RS-232/-485/-422 (data/NMS)
- Data speed max.
Radio 28800 / RS 115200 bps
- Modulation
4FSK, 8FSK, 16FSK
- Operating voltage
+9 … +30 Vdc (-15% / +20%)
- Power consumption
TX: 9 … 10 W @ 1W output power
TX: 60 … 72 W @ 25 W output power
TX: 84 … 97 W @ 35 W output power
RX: 1.8 … 2.3 W
Sleep mode: 0.9 … 1.4 W
- Size weight
180 x 138 x 71 mm with connectors / 1400 g
- Connectors
Data 8-pin ODU / Antenna TNC n / Power 2-pin ODU
Accessories
- CRF-1 (YC1101)
RG58, lenght 1 meter with TNC male / TNC female -connectors
- CRF-5F (YC1105) / CRF-5M (YC1106)
RG-58, lenght 5 meter with TNC male / TNC female -connectors OR CRF-5M TNC male / TNC male -connectors
- CRF-50 (YC1150)
Length 50 cm with TNC male / TNC male from band-pass filter to radio
- ECOFLEX10 (YC1004)
Low loss (0.9 dB / 10 m) cable for cable lengths upto 20 meter with N or TNC -connectors
- ECOFLEX15 (YC1005)
Low loss (0.6 dB / 10 m) cable for cable lengths over 20 meter with N -connectors
- CRS-35W 8-pin (YC0368)
2 m cable ODU 8-pin male / D9 female
- CRS-35W 8-/7-pin (YC0369)
2 m cable ODU 8-pin male / 7-pin male
- CRS-35W 8-/8-pin (YC0359)
2 m cable ODU 8-pin male / 8-pin male
- CRS-35W 8-/8-pin (0/30) (YC0374)
2 m cable 8-pin male (0 deg) / 8-pin male (30 deg)
- Antennas
Half Wave, Quarter Wave, Helix, Directional and Omnidirectional Antennas
- Power Adapter 150W (YP1150)
ODU 2-pin male, C14 male IEC power inlet. IN, 100-240 Vac, OUT 12 Vdc / 12.5 A
- Mains Cable C-M (YC0904)
With Europlug for YP1150
- C-P-Pro+ 2m (YC2957)
Power cable 2 m, ODU 2-pin male / 4 mm lab plugs
- C-P-Pro+ 3m (YC1353)
Power cable 3 m, ODU 2-pin male / Alligator clip
- PROG-35W 8-pin (YC0363
2 m cable ODU 8-pin male / D9 female, for programming
