SATELLINE-M3-TR1
Industrial UHF/VHF ModemData transceiver module with wide tuning range for long-range connections.
SATELLINE-M3-TR1
Industrial UHF/VHF ModemData transceiver module with wide tuning range for long-range connections.
Description
SATELLINE-M3-TR1 transceiver module is a compact, flexible and lightweight solution with low power consumption. The module is specifically designed for small mechanics.
It is an excellent choice for applications requiring long-range distances.
SATELLINE-M3-TR1 (YM6300 / YM6305)
SATELLINE-M3-TR1 with AES128 encryption support (YM6310 / YM6315)
Prose
Lightweight solution for long-range connections
The module has a wide (90 MHz / 70 MHz) tuning range and the operation frequency can be selected within the ranges 330…420 MHz and 403…473 MHz. The channel spacing 12.5, 20 and 25 kHz are software-selectable. The output power of 1W enables long connection distances.
SATELLINE-M3-TR1 has two operating voltage levels +3 … +9 VDC and +6 … +30 VDC. The level can be changed by replacing the PWR module.
Flexible and compatible module

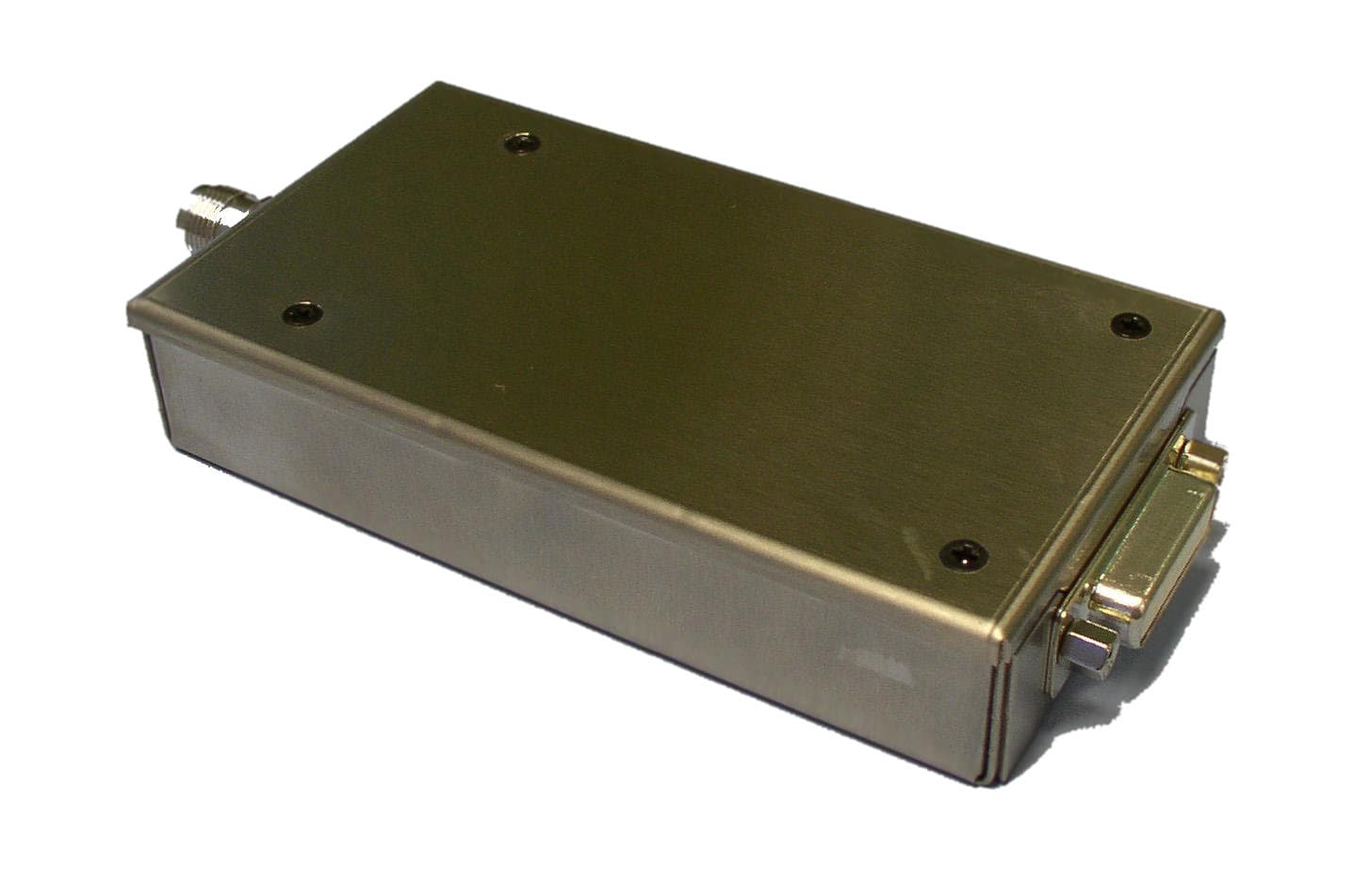

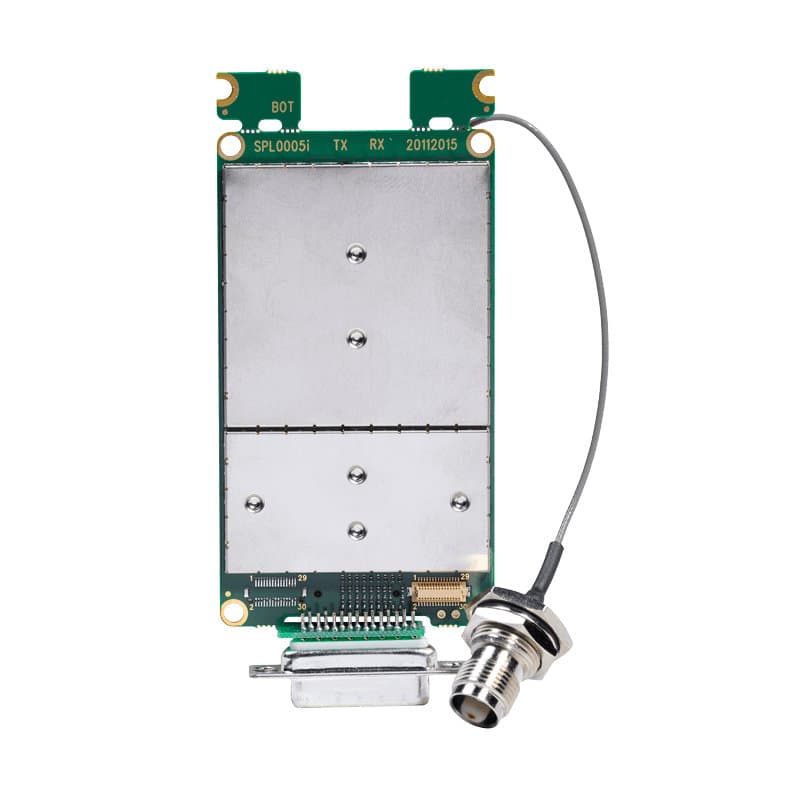

The module can be supplied without a housing as a small-size module or in an aluminum housing. Customers can also specify the interface connector to be D15 female, 26-pin male strip or 26-pin female socket. The antenna connector can be TNC, SMA, MCX or MMCX. The applicable serial interfaces for M3-TR1 are RS-232, RS-422, LVTTL or TTL.
SATELLINE-M3-TR1 is compatible with the widely used SATELLINE-EASy radio modem family and can also be included in systems based on other manufacturers' protocols.
Model with an AES128 bit encryption support is available too.
Specifications
- Frequency range
330 … 420 MHz / 403 … 473 MHz
- Tuning range
90 MHz / 70 MHz
- Channel spacing
12.5 / 20 / 25 kHz selectable
- Sensitivity / Carrier power
-114 dBm / 1 W
- Interface
RS-232, 422, LVTTL, TTL
- Data speed
19200 / 38400 bps
- Operating voltage
+3 … +9 /+6 … +30 VDC
- Power consumption
1.2 W / 3 W@0.5W, 7W@1W
- Size
89 x 49 x 10 mm
- Weight
50 g PCB format
