Product Description

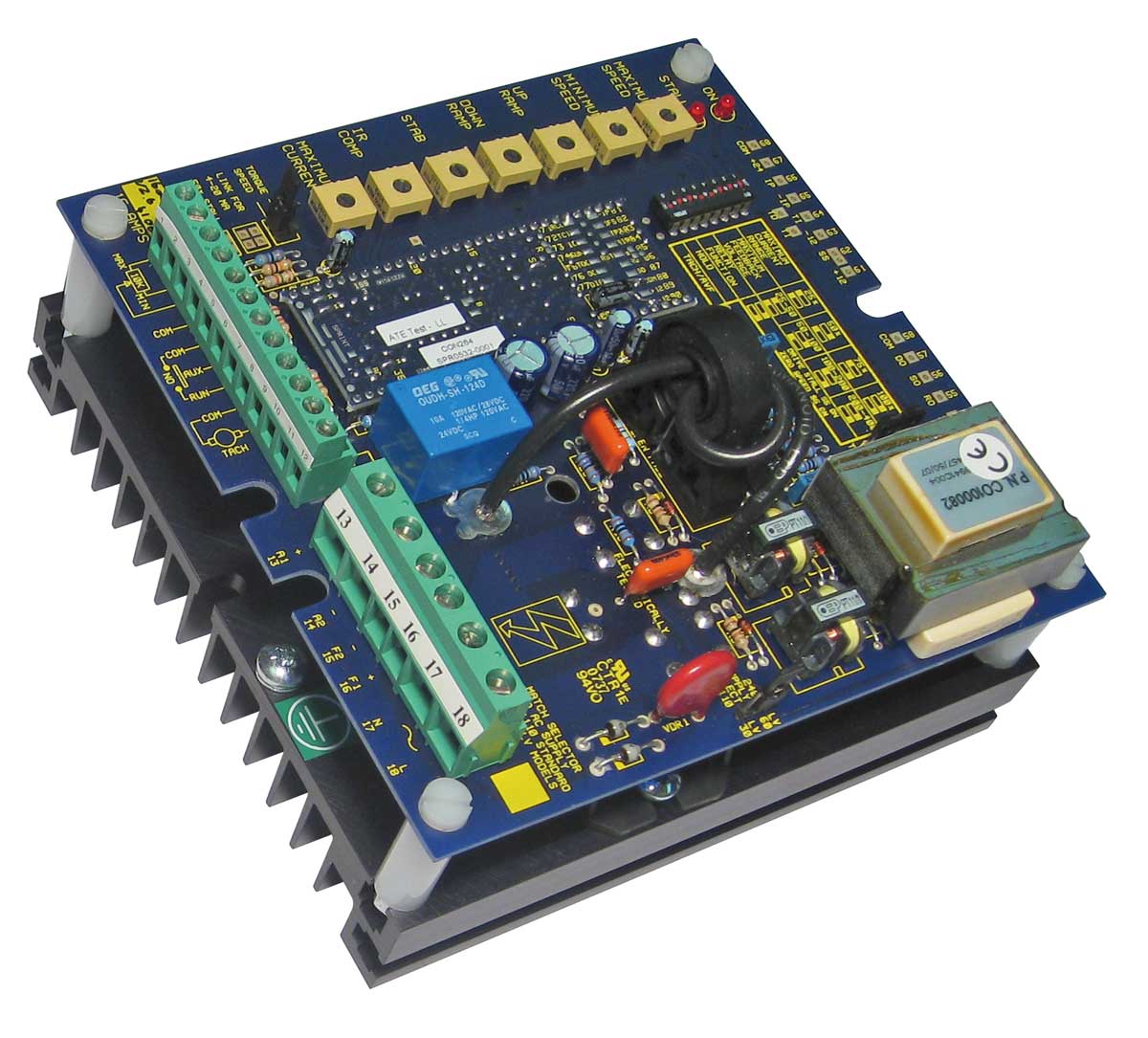

Sprint Electric


DC Drive



Key Features

1600i For DC motors up to 16 Amps

3200i for DC motors up to 48 Amps

Fully isolated control electronics

On-board relay indicates zero speed and/or motor overload

Features Sprint Electric micro analog processor

Numerous inputs and outputs for complex system applications

Extra 50% peak torque for rapid acceleration or shock loads

User adjustable:

  • Acceleration
  • Deceleration
  • Max motor speed
  • Min motor speed
  • IR comp
  • Stability
  • Max motor current

Switch selectable power up inhibit

Switch selectable feedback calibration - no component changes

Switched maximum current ranges for easy matching to motor current rating

Switch selectable drive relay functions

Ultra stable potentiometer reference for optimum long term speed and torque stability

Adjustable Stability control for optimum motor response

Switch selectable Tach or armature voltage feedback

Torque control input for basic winding or tension control, with overspeed limiting

International dual voltage supply compatibility (1600i 100-130VAC and 200-264VAC, 3200i (200-264VAC and 360-440VAC)

4-20mA and 0-20mA loop input option as standard

Output signals for easy display of motor speed and load

Compact size, saves panel space and makes for easy retrofitting

Zero reference interlock facility

Single Quadrant operation

Adjustable IR compensation for improved AVF speed regulation

Precision tach rectifier

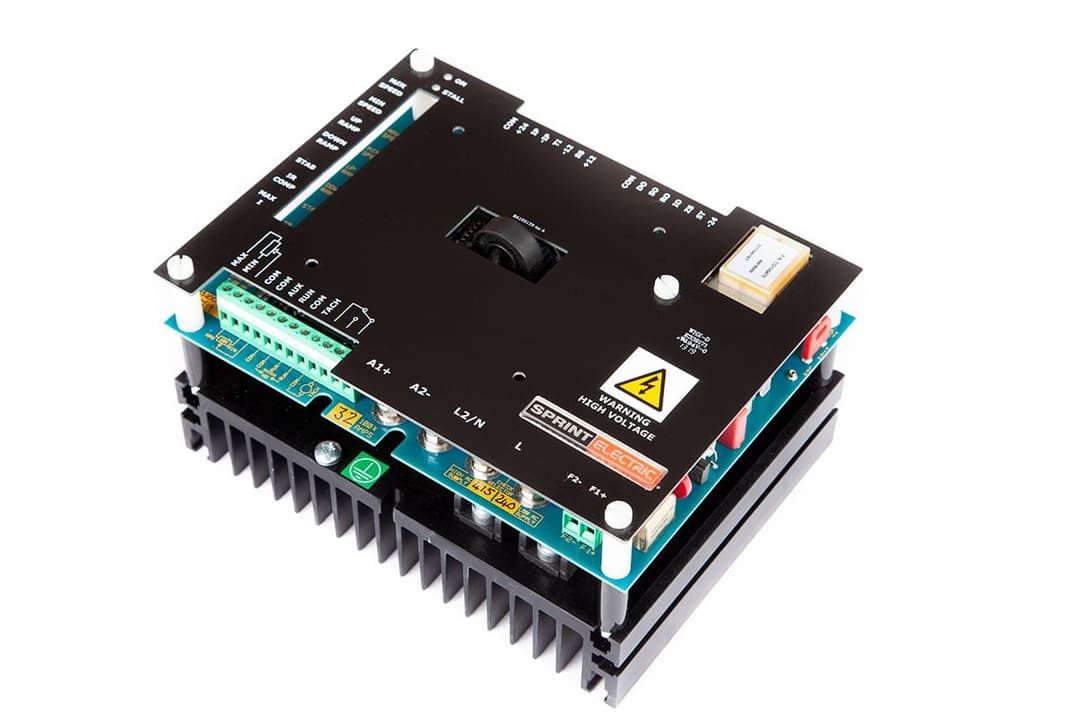

Now with cover and additional signal terminals to the top edge
