Product Description
340

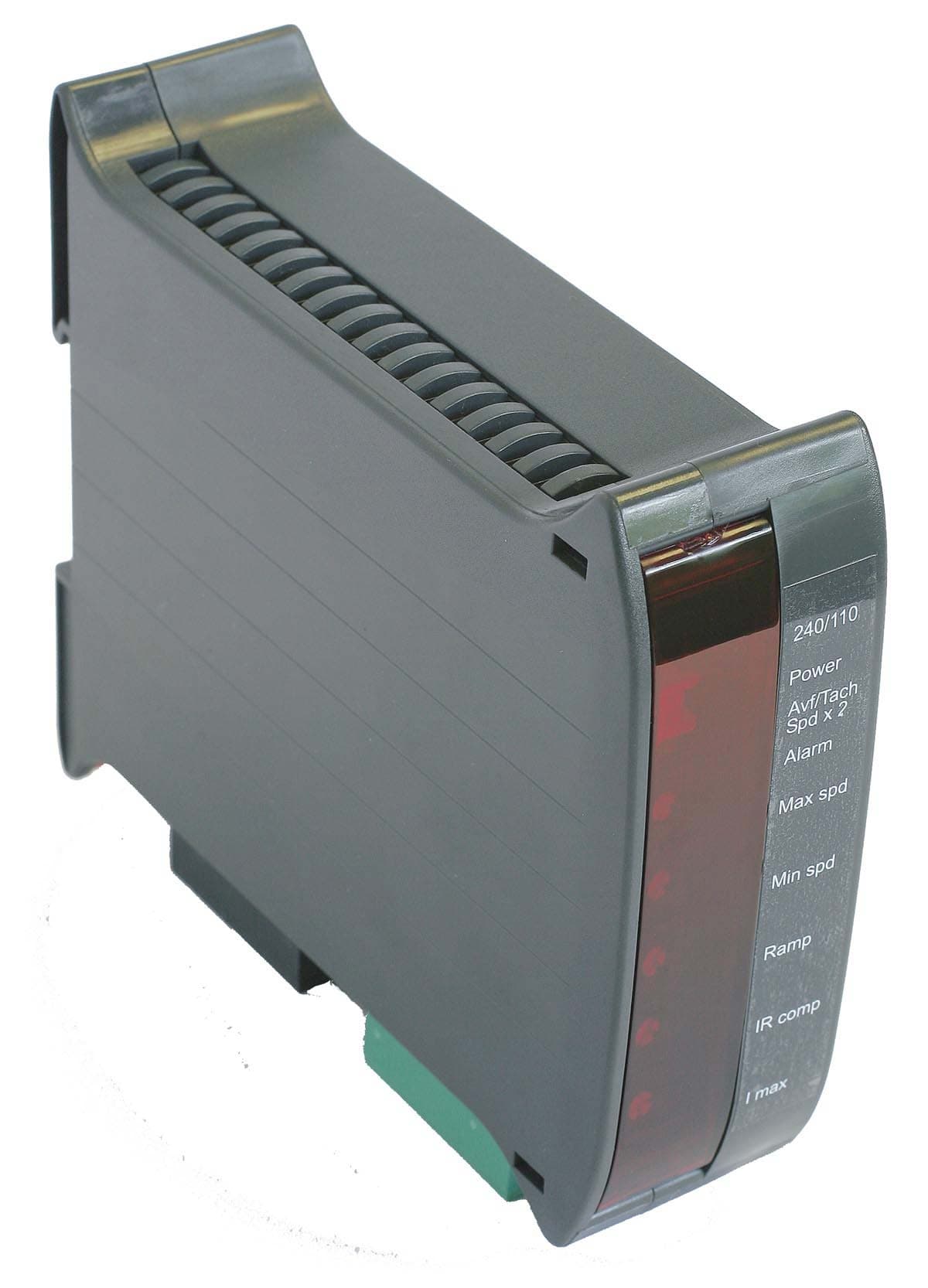

DC ControlUltra compact DIN rail mounted 1Q DC Drive. Non-isolated electronics providing up to 3.4A output current, suitable for DC motors up to 0.55kW output power.
340
DC ControlUltra compact DIN rail mounted 1Q DC Drive. Non-isolated electronics providing up to 3.4A output current, suitable for DC motors up to 0.55kW output power.
Description
Ultra compact DIN rail mounted 1Q DC Drive. Non-isolated electronics providing up to 3.4A output current, suitable for DC motors up to 0.55kW output power.
Specifications
- At a Glance
340 controller for DC motors rated up to 3.4 Amps (0.55KW/0.75HP)
DIN rail mounting
Easy to access drive adjustments
Plugon screw terminals
Small footprint
UL, CuL and CE approved
- Technical Highlights
Switch selectable Tach or Armature voltage feedback
Adjustable IR compensation for improved AVF speed regulation
Selectable dual voltage ac supply
Aux speed trim input available in AVF mode
Plug in terminals
Can also drive universal motors
- User Adjustable
Ramp
Max motor speed
Min motor speed
IR comp
Max motor current
- Ratings
100 to 130v AC Supply Range
90v Typical Max Armature Voltage
3.4A Max Continuous Armature Current
0.25KW / 0.35HP Nominal Power
200 to 264v AC Supply Range
180v Typical Max Armature Voltage
3.4A Max Continuous Armature Current
0.55KW / 0.75HP Nominal Power
- Dimensions
Width
507mm
Height
700mm
Depth
350mm
