Sprint Electric

340/680/1220 Series

DC Control

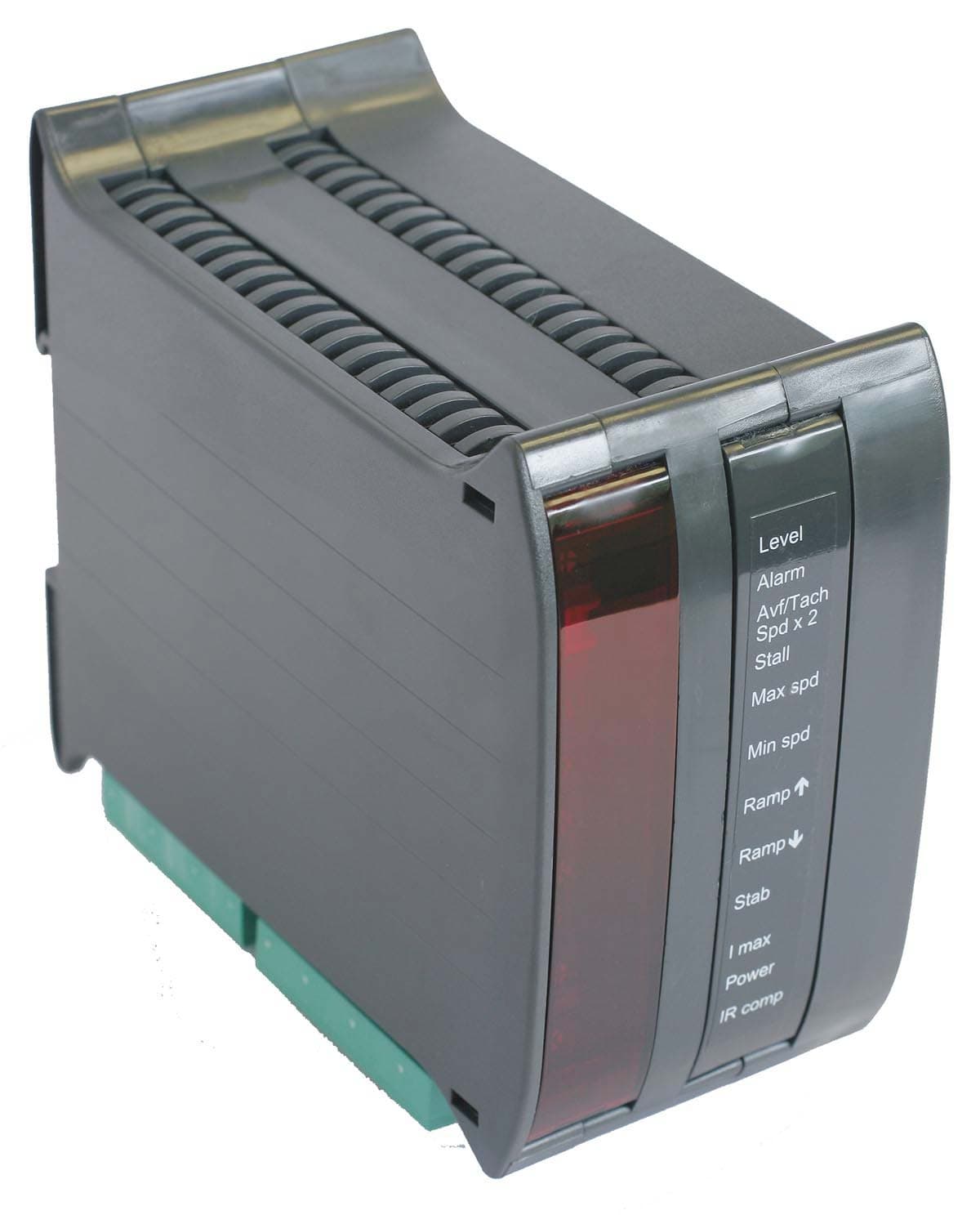

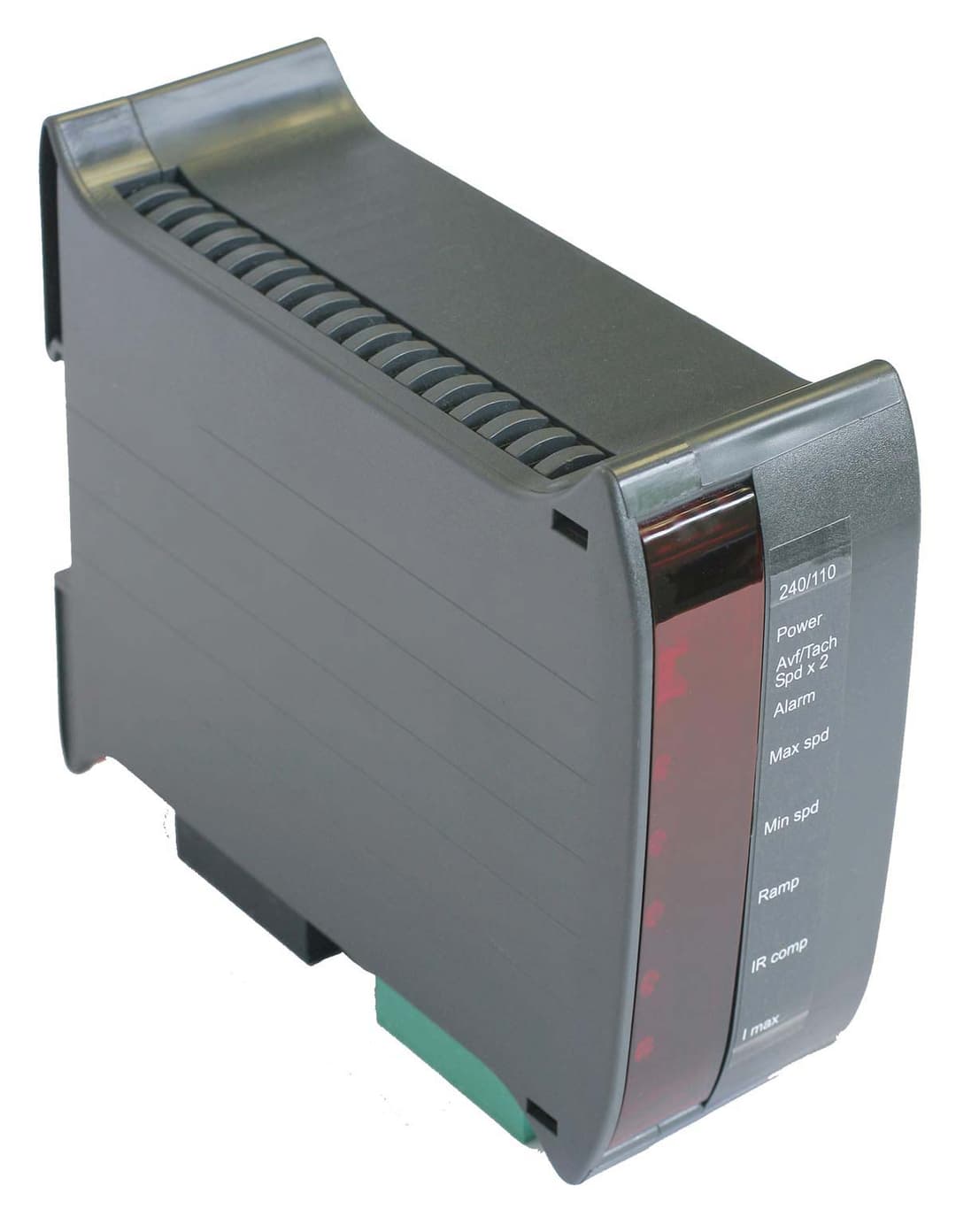

Ultra-compact 1Q/4Q DIN-rail mount DC drives.

Description

Low cost DC motor control for brushed permanent magnet or wound field DC motors. This comprehensive range of DC Drives offers both non-isolated and isolated drives up to 12.2A output current, suitable for DC motors up to 1.8kW (2.0Hp) output power. The product range is available with a wide range of input voltage options, from the standard 110 - 240VAC through to 30V - 60VAC options that can provide output voltage down to 24VDC. The 340/680/1220 Series is an ideal low-cost drive solution to control small brushed or permanent magnet DC motors.

Features

Features

Extremely Compact

The 340/680/1220 series DC Drive provides effortless control of motors up to 1.8kW in a footprint from just 35mm x 105mm. The compact DIN rail-mounting package uses less panel space than conventional chassis mount drives. Each drive comes with easy to access drive adjustments together with plug-on screw terminals for easy installation.

Low Voltage as Standard

The 340/680/1220 series DC Drive is available with a single phase 110V - 240VAC input voltage option (for output voltages 90V - 180VDC), or alternatively comes with a 30V - 60VAC input option (for up to 24V - 48VDC output. An ideal match for most common small DC motor windings.

Single (1Q) or 4 Quadrant Motor Control

Available in non-isolated 1Q, isolated 1Q and 4Q options, the 340/680/1220 series provides a wide range of options for any budget. The 4 Quadrant variant (XRi) regenerative DC motor controller gives a fast controlled response over the full forward/reverse speed range for motoring and braking. This improves energy efficiency by regenerating energy into the mains supply whilst under braking. The energy invested accelerating the load mass is recovered when braking. There is no dissipation of energy in wasteful braking resistors.

Specifications

All Models

Highlights

340 controller for DC motors rated up to 3.4 Amps (0.55KW/0.75HP)

680 controller for DC motors rated up to 6.8 Amp (0.75KW/1HP)

1220 controller for DC motors rated up to 12.2 Amps (1.8KW/2HP)

DIN rail mounting

Easy to access drive adjustments

Plug-on screw terminals

Small footprint - 105 x 35/45/60/70 x 120(mm) H x W x D

UL, CuL and CE approved

Switch selectable Tach or Armature voltage feedback

Adjustable IR compensation for improved AVF speed regulation

Selectable dual voltage ac supply

Aux speed trim input available in AVF mode

Plug in terminals

Can also drive universal motors

User Adjustable

Ramp

Max motor speed

Min motor speed

IR comp

Max motor current

340i, 680i, 1220i & 340XRi, 680XRi, 1220XRi Models

Highlights

150% overload with stall protection

Push-button reversing function

User Adjustable

Up ramp

Down ramp

Stability

Imax

AVF/Tach switch

Speed range switch

AC voltage selector

Signal level comparator

340XRi, 680XRi, 1220XRi Models

Built-in current limit protection

Can be used as a torque controller

Ramped input +/- Signal terminals

I & XRi Models Signal Terminals

+10V ref

Min speed

Ramped Input+

Output +/-

Common

Input +/-

Pushbutton +

Pushbutton -

Run input

Common

Tach input

Level output

Level input

Overload output

Trip output

Ramp output

Demand output

Speed output

Current output

+Speed input

Torque input
