Product Description

Sprint Electric


DC Drive

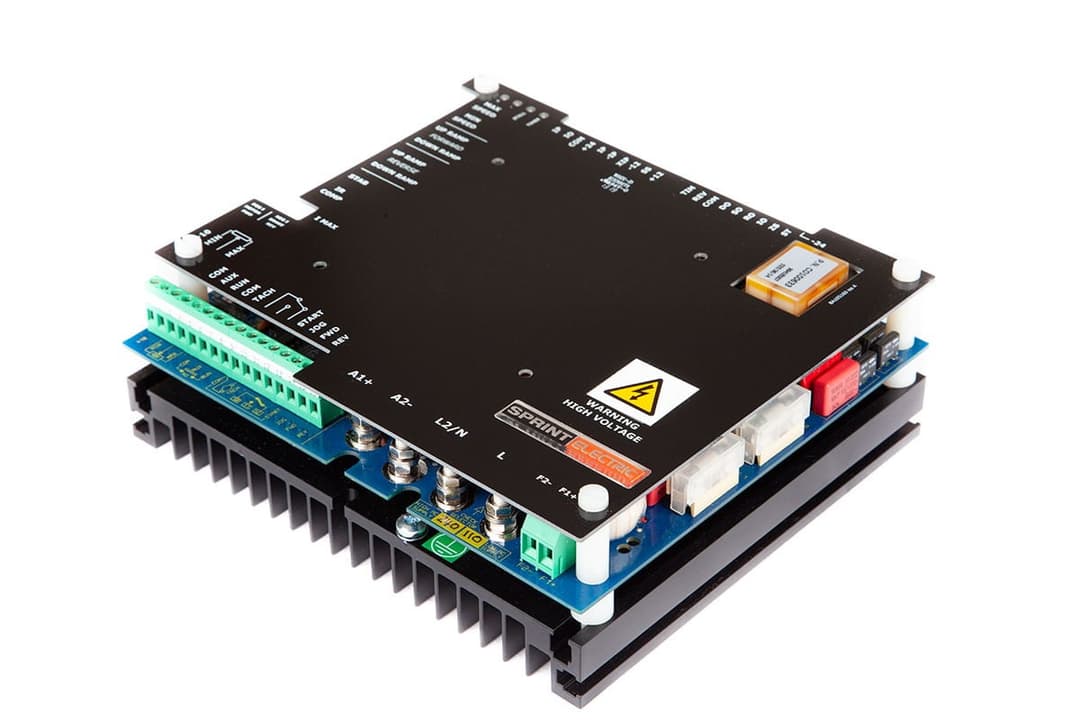

Key Features

Four Quadrant forward, reverse and braking operation

Five current outputs:

  • 4 Amp
  • 8 Amp
  • 16 Amp
  • 32 Amp
  • 36 Amp

Extra 50% peak torque for rapid acceleration or shock load

Fully regenerative - no braking energy dissipated as waste heat

Isolated control electronics for easy connection to other drives/equipment

Extremely compact size, saves panel space and makes for easy retrofitting

User adjustable presets for:

  • Forward acceleration - Reverse acceleration
  • Forward deceleration - Reverse deceleration
  • Max motor speed
  • Min motor speed
  • Motor current limit
  • Brake current limit
  • Forward current limit - Reverse current limit
  • Positive current limit- Negative current limit
  • IR comp
  • Stability

4Q torque input

2Q torque input Regen to zero input

Features Sprint Electric micro analog processor

Direct pushbutton inputs for control of stop/start, direction and jog functions

Includes all the features of 1600i and 3200i

Relay output indicates motor shaft reversal

Relay output indicates motor load > 105%

Dual setpoint facility for alternate speed e.g. run and crawl toggled speed reference ideal for easy end of travel reversal

Switch selectable Tach or Armature voltage feedback

Switched maximum current ranges for easy matching to motor current rating

Ultra stable potentiometer reference for optimum long term speed and torque stability

International dual voltage supply compatibility

On-board relay indicates zero speed and/or motor overload

Now with cover and additional signal terminals to the top edge
