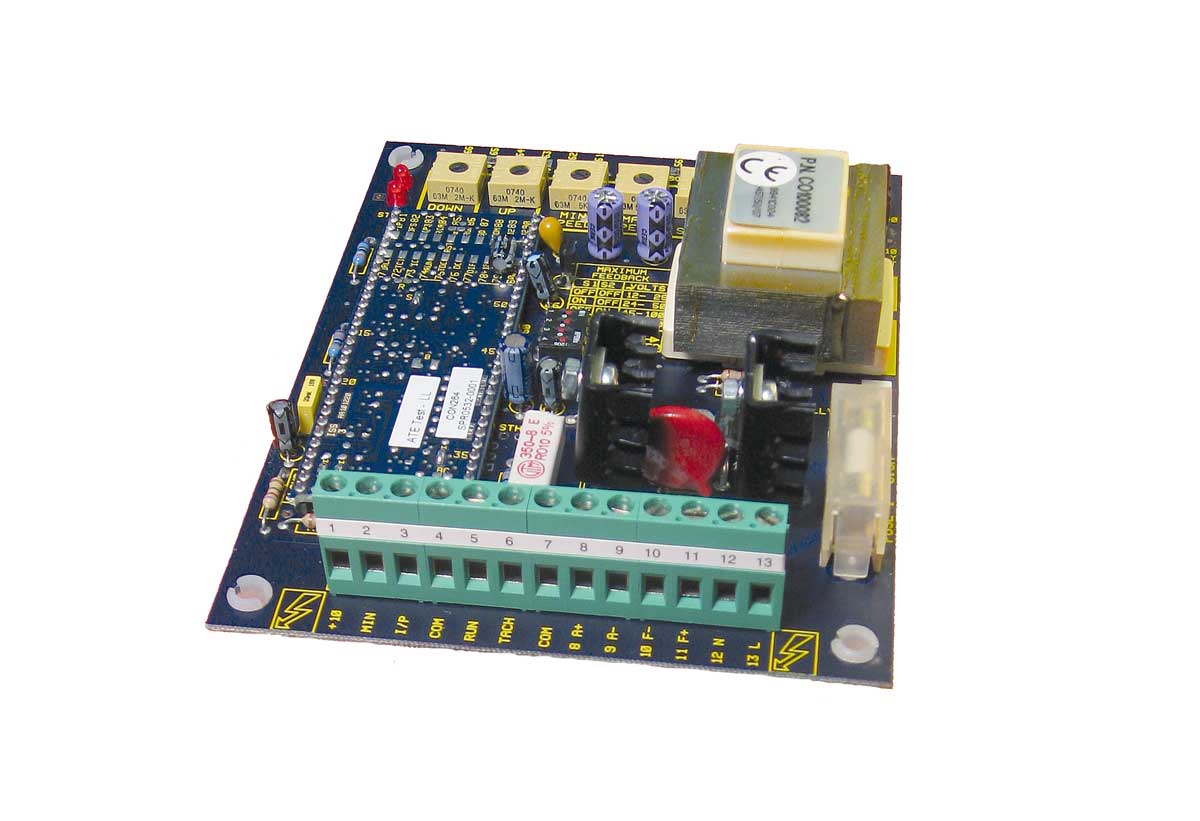

For DC motors rated up to 4 Amps

Single Quadrant operation

400 has Non Isolated control electronics for single shaft applications

400i has Fully Isolated control electronics for interfacing with other systems

Extra 50% peak torque for rapid acceleration or shock loads

Torque control input for basic winding or tension control, with overspeed limiting

Ultra stable potentiometer reference for optimum long term speed and torque stability

Compact size

International dual voltage supply compatability (100-130VAC and 200-264VAC)

Integral AC supply fuse

Output signals for easy display of motor speed and load

Switch selectable feedback calibration - no component changes

Precision tach rectifier

Zero speed signal output

Motor overload output

Remote stop/start input

User adjustable:

• Acceleration
• Deceleration
• Max motor speed
• Min motor speed
• Max motor current
• Stability
• IR comp

Motor overload output

Output signals for easy display of motor speed and load

Zero speed signal output

Switch selectable feedback calibration - no component changes

Adjustable IR compensation for improved AVF speed regulation

Adjustable stability control for optimum motor response

Easily interfaced with armature reversing module

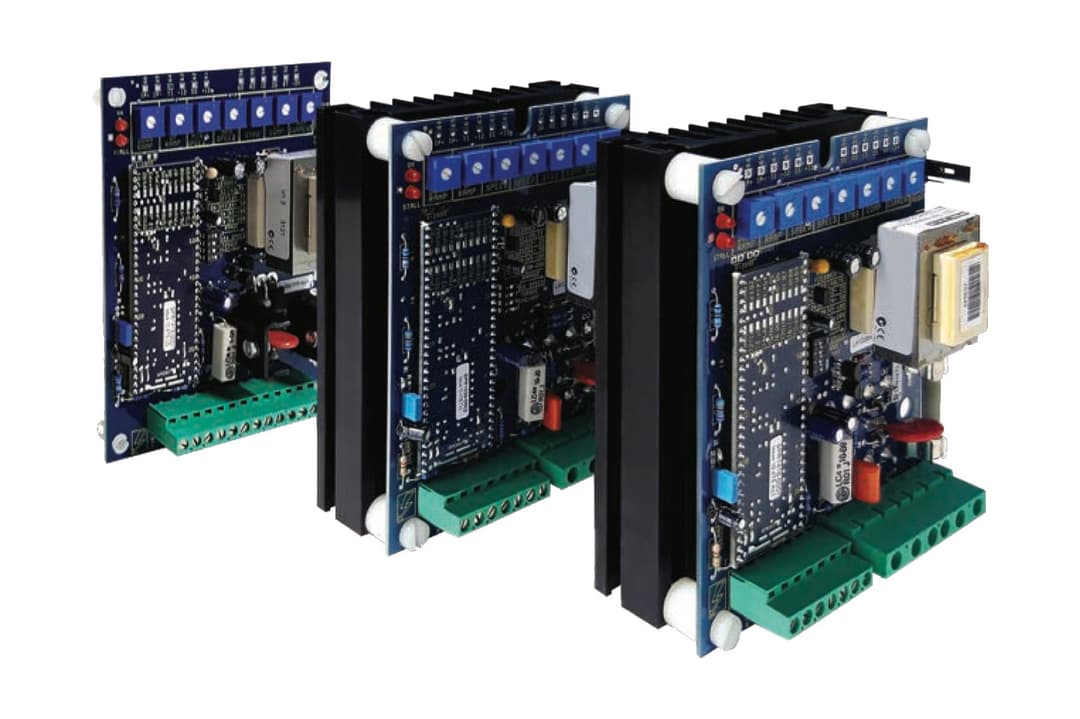

800 controller for DC motors rated up to 8 Amps

1200 controller for DC motors rated up to 12 Amps

International dual voltage supply compatibility (100-130VAC and 200-264VAC)

Single Quadrant operation

Extra 50% peak torque for rapid acceleration or shock loads

User adjustable:

• Acceleration
• Deceleration
• Max motor speed
• Min motor speed
• IR comp
• Stability
• Max motor current

Torque control input for basic winding or tension control, with overspeed limiting

Many additional input and output signals

Switch selectable Tach or armature voltage feedback

4-20mA and 0-20mA loop input option as standard

Easily interfaced with armature reversing module

Adjustable Stability control for optimum motor response

Integral AC supply fuse

Ultra stable potentiometer reference for optimum

long term speed and torque stability

Output signals for easy display of motor speed and load

Zero reference interlock facility

Adjustable IR compensation for improved AVF speed regulation

Switch selectable feedback calibration - no component changes

Precision tach rectifier

Zero speed signal output

Motor overload output

Identical footprint for 8 or 12 Amp output

Remote stop/start input

Features Sprint Electric micro analog processor

Pushbutton input for electronic control of motor stop/start

Compact size, saves panel space and makes for easy retrofitting
