PL/XD Series
DC ControlUsed for controlling external 3-phase thyristor stacks for DC motors and slip-ring motors.
PL/XD Series
DC ControlUsed for controlling external 3-phase thyristor stacks for DC motors and slip-ring motors.
Description

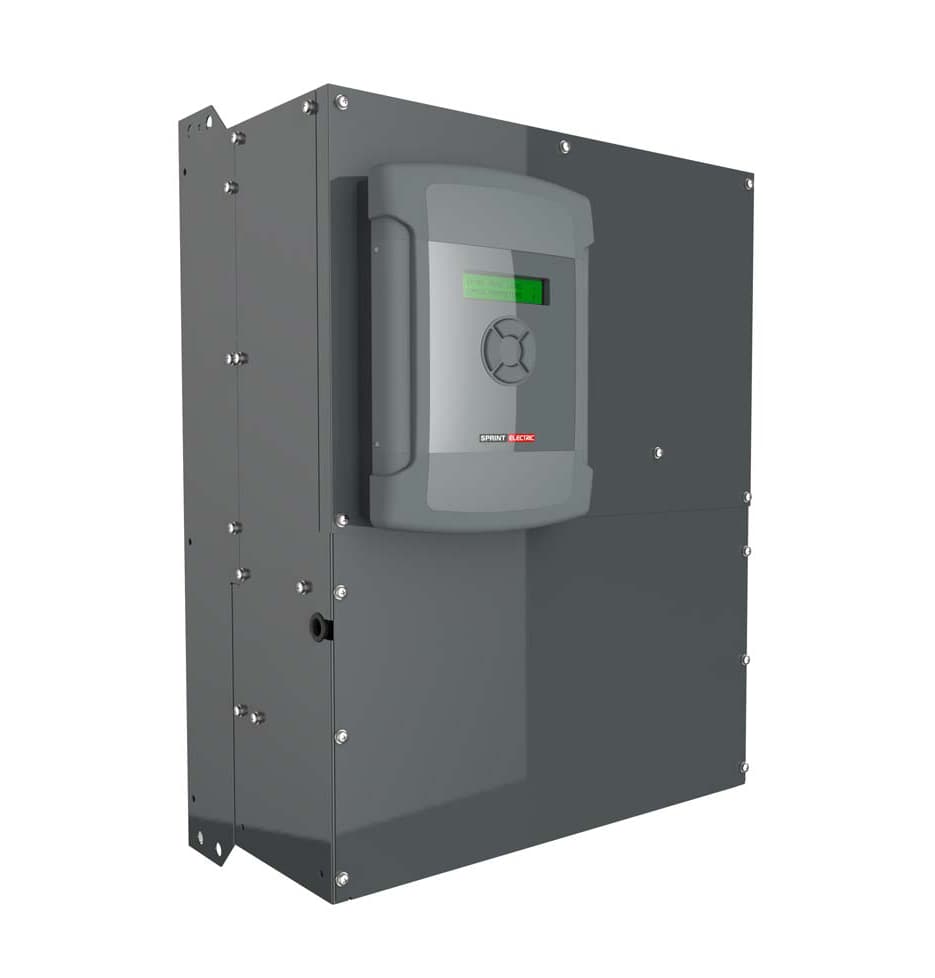

A digital stack controller built from the classic PL/X platform. The PL/XD is used for controlling external 3-phase thyristor stacks for DC motors and slip-ring motors. It possesses the same functionality as the PL/X range, except that the output power stage is not included. The PL/XD makes an extremely economical solution for users of very large power DC motors wishing to separate the control and power modules.
The PL/XD provides the same functionality as the integrated PL/X drive, except without the power stage. The PL/XD uses the same frame size as the PL/X 5 - 50 model and hence is extremely compact. The PL/XD provides all the world-class control features of the PL/X series. The PL/XD can control a 6 pulse 2Q bridge (6 thyristors), 2 bridges in parallel (12 thyristors) or a 6 pulse 4Q regenerative anti-parallel bridge (12 thyristors).
Features
Features
State-of-the-art Digital Control
The PL/XD provides gate drive pulse for driving user supplied pulse transformers with primary pulse current up to 1.5A. The PL/XD can be supplied with supply voltages up to 690VAC as standard. There is also an integral motor field bridge with independent single-phase AC supply inputs for controlling fields up to 32A or 50A. Internal field supply input voltage is set at 480VAC.
Powerful Ethernet
The PL/XD can be fully equipped with Drive.Web to enable the Industrial Internet Of Things (IIOT). Drive.Web distributed control technology uses Ethernet and powerful graphical tools to provide robust Programmable Peer Control (PPC) for drives and systems. Options for field bus systems include Ethernet, Profibus, CANbus, Modbus, DeviceNet and many more. The PL/XD is CE approved.
Specifications
- Ratings
Fully controlled variable field supply
- Armature Voltage
V armature = Vac x 1.2
- Field Voltage
V field = 0 to 0.9 x Auxiliary AC Supply
- AC Supply Voltage (VAC)
EL1 / EL2 / EL3 Synchronisation 3 phase 50-60Hz:
12 to 690Vac +/- 10%
EF2 / EF3 1 phase 50-60Hz:
100 to 500Vac +/- 10% for field power
Control 1 phase 50-60Hz:
110 to 240Vac +/- 10 for control power
- Protection
Instantaneous over-current
Field failure and over-current
Motor over-temperature over-temperature
Mains supply phase loss
Mains synchronisation loss - Armature over-volts
Speed feedback failure
Stall protection
Standstill logic
Thyristor 'trigger' failure
Digital output short circuit
- Analogue Inputs
8 total (resolution 2.5mV+sign)
All configurable
All have programmable thresholds and 4 voltage ranges
+/- 5/10/20/30V
All inputs are over voltage protected and can also be utilised as digital inputs
- Analogue Outputs
4 total (resolution 2.5mV+sign)
1 armature current output
3 configurable
All outputs are short circuit protected
- Digital Inputs
17 total
All configurable
- Digital Outputs
7 total (24V logic 350mA total)
Short circuit protected
Over temp and
over voltage protected
All configurable
- Standard Software Functions
Full suite of centre winding macros
Motorised pot simulator with memory
2x PIDs (undedicated)
2x Summers (undedicated) - 2x Filters (undedicated)
Delay timer
Current Profiling
Spindle Orientation
Jog/Crawl functions
Dual motor swap
Latch
Linear or S ramp
Slack take up
Batch counter
Draw control
Auto self-tune current loop - 3 user programmable drive configurations
- Alarm Status
First fault latched and automatically displayed.
Fault automatically saved at power off
- Monitoring
All analogue input voltages
All digital input states
All analogue output voltages
All digital output states
Tachogenerator voltage
Motor armature current (amps)
Motor field current (amps)
Motor armature volts
Output power
AC supply volts
- Field Configurations
Fixed current
Fixed voltage
Field weakening
Delayed quenching - Standby field value - Field economy
- Environment
Ambient operating temperature
0-40°C (2050A 2250A 35°C) - 25 to +55°C storage
- Steady State Accuracy
0.01% Encoder feedback with digital reference.
0.1% Analogue tachogenerator feedback
2% Armature voltage feedback
0.01% Encoder + tach, encoder + AVF or encoder only feedback
Maximum encoder frequency 100KHz
- Standards
CE marked to EN50178 (low voltage directive)
EN50082-2:1995
Immunity industrial environment
EN50082-1:1997 Immunity residential commercial and light industry
EN50081-2:1993 Emissions industrial environment (EN55011 Class A)
EN50081-1:1992 Emissions industrial environment (EN55022 Class B)
UL and cUL listed 12-630Amps
UL and cUL pending 650-2250Amps
- Speed Feedback
Analogue tach
Encoder
Armature voltage
Encoder + Armature volts
Encoder + Analogue
- Communication
Rs232 as standard
Profibus available
DeviceNet available
CC-link available
EtherNet/IP available
Modbus available
CANopen available
drive.web Ethernet available
