Product Description

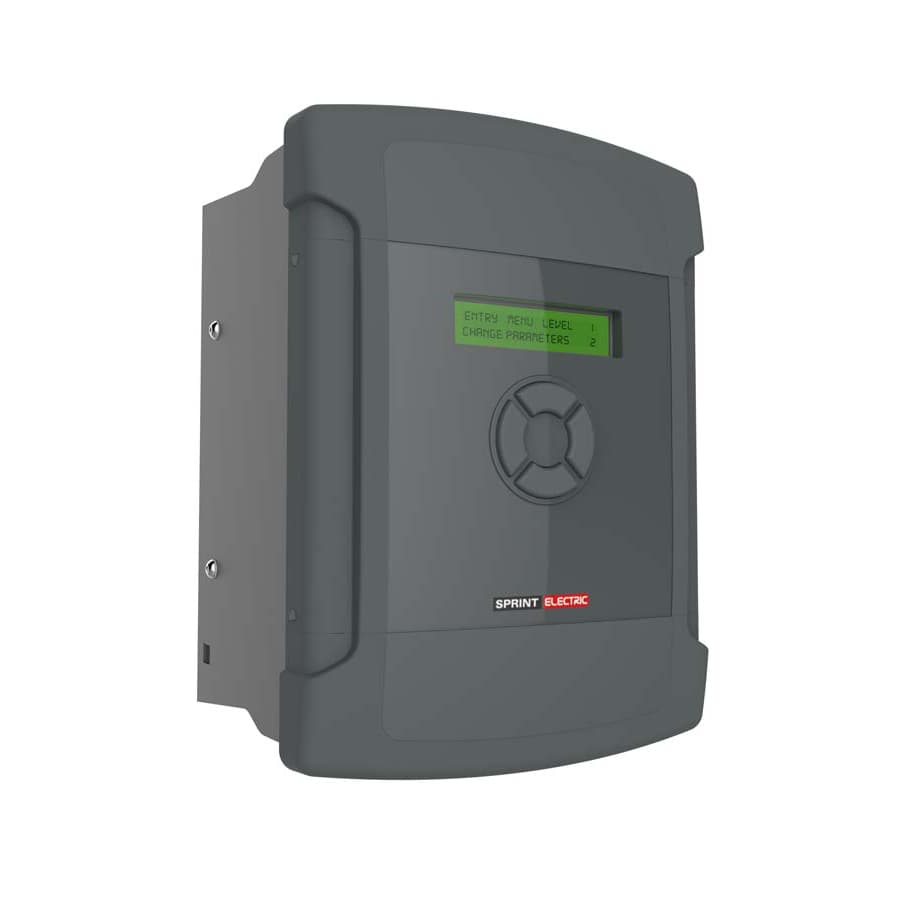

PL/X Series
DC ControlFully digital DC drive system providing 5kW - 980kW output power.
PL/X Series
DC ControlFully digital DC drive system providing 5kW - 980kW output power.
Description
With 2 Quadrant and 4 Quadrant models, you can use the PL/X to control DC motors up to 2250Amps, with all models available from stock.
The PL/X series DC Drive is a fully digital DC drive system providing 5kW - 980kW output power. Available in 2Q (single direction) and 4Q (fully regenerative) variants, the range comprises 5 compact chassis sizes with models rated from 12A to 2250A output current. The PL/X boasts an extremely versatile operating input voltage range of 12V - 500VAC as standard. Options are available for 600V and 690VAC input.
Features
Features
Compact & Versatile Design
The PL/X boasts the best power density from any comparable DC Drive on the market. Available in 2Q (single direction) and 4Q (fully regenerative) variants, the range comprises 5 compact chassis sizes with models rated from 12A to 2250A output current. The PL/X boasts an extremely versatile operating input voltage range of 12V - 500VAC as standard. Options are available for 600V and 690VAC input.
Fully Configurable & Easy to Control
All models include a 40-character alphanumeric backlit display that makes it easier to quickly navigate through an extensive range of software functions. The PL/X is fitted with 17 digital inputs and 8 analogue inputs as standard, with 7 digital outputs and 4 analogue outputs. The PL/X is fully configurable by the user and comes equipped, as standard, with a comprehensive suite of application blocks. Centre winding macros, spindle orientation and a fully controllable field allow you to control DC motors in a wide range of industrial applications. The PL/X also includes PL Pilot+ a windows based, configuration and monitoring software package.
Powerful Ethernet
The PL/X can be fully equipped for the Industrial Internet Of Things (IIOT). All PL/X models are available with integrated Drive.Web. The Drive.Web distributed control technology uses Ethernet and powerful graphical tools to provide robust Programmable Peer Control (PPC) for drives and systems. Options for field bus systems include Ethernet, Profibus, CANbus, Modbus, DeviceNet and many more. All frame sizes are CE approved with UL & CuL listings available on frame sizes 12 - 630A output power.
Specifications
- Power Configuration
PLX Four Quadrant Regenerative
PL Two Quadrant Non- Regenerative
Fully controlled variable field supply
- Armature Voltage
V armature = Vac x 1.2
- Armature Current Ratings (ADC)
12, 24, 36, 51, 72, 99, 123, 155, 205, 270, 330, 430, 530, 630, 650, 750, 850, 950, 1050*, 1250, 1450, 1650, 1850, 2050, 2250* *No overload
Overload 150% for 25 seconds
- Field Current
8A (12-123A ratings)
16A (155-330A ratings)
32A (430-630A ratings)
64A (1250-2250A ratings)
- Field Voltage
V field = 0 to 0.9 x Auxiliary AC Supply
- AC Supply Voltage (VAC)
Main 3 phase 50-60Hz:
12 to 500Vac +/- 10% for armature power
600/690Vac options for 650A -2250A
Auxiliary 3 phase 50-60Hz:
100 to 500Vac +/- 10% for field power
600/690Vac options for 650A -2250A
Control 1 phase 50-60Hz:
110 to 240Vac +/- 10% for control power
- Protection
Interline device networks
High energy MOV's
Instantaneous over-current
Field failure and over-current
Motor over-temperature
Thyristor stack
over-temperature
Mains supply phase loss
Mains synchronisation loss
Armature over-volts
Speed feedback failure
Stall protection
Standstill logic
Thyristor 'trigger' failure
Digital output short circuit
- Analogue Inputs
8 total (resolution 2.5mV+sign)
All configurable
All have programmable thresholds and 4 voltage ranges
+/- 5/10/20/30V
All inputs are over voltage protected and can also be utilised as digital inputs
- Analogue Outputs
4 total (resolution 2.5mV+sign)
1 armature current output
3 configurable
All outputs are short circuit protected
- Digital Inputs
17 total
All configurable
- Digital Outputs
7 total (24V logic 350mA total)
Short circuit protected
Over temp and - over voltage protected
All configurable
- Standard Software Functions
Full suite of centre winding macros
Motorised pot simulator with memory
2x PIDs (undedicated)
2x Summers (undedicated)
2x Filters (undedicated)
Delay timer
Current Profiling
Spindle Orientation
Jog/Crawl functions
Dual motor swap
Latch
Linear or S ramp
Slack take up
Batch counter
Draw control
Auto self-tune current loop - 3 user programmable drive configurations
- Alarm Status
First fault latched and automatically displayed.
Fault automatically saved at power off
- Monitoring
All analogue input voltages
All digital input states
All analogue output voltages
All digital output states
Tachogenerator voltage
Motor armature current (amps)
Motor field current (amps)
Motor armature volts
Output power
AC supply volts
- Field Configurations
Fixed current
Fixed voltage
Field weakening
Delayed quenching - Standby field value - Field economy
- Environment
Fixed current
Fixed voltage
Field weakening
Delayed quenching - Standby field value - Field economy
- Steady State Accuracy
0.01% Encoder feedback with digital reference.
0.1% Analogue tachogenerator feedback
2% Armature voltage feedback
0.01% Encoder + tach, encoder + AVF or encoder only feedback
Maximum encoder frequency 100KHz
- Standards
CE marked to EN50178 (low voltage directive)
EN50082-2:1995 Immunity industrial environment
EN50082-1:1997 Immunity residential commercial and light industry
EN50081-2:1993 Emissions industrial environment (EN55011 Class A)
EN50081-1:1992 Emissions industrial environment (EN55022 Class B)
UL and cUL listed 12-630Amps
UL and cUL pending 650-2250Amps
- Speed Feedback
Analogue tach
Encoder
Armature voltage
Encoder + Armature volts
Encoder + Analogue
- Communication
Rs232 as standard
Profibus available
DeviceNet available
CC-link available
EtherNet/IP available
Modbus available
CANopen available
drive.web Ethernet available
