XLV Series
DC ControlFast response, linear DC motor speed controller for driving small low voltage brushed DC motors from 2A - 12A output power.

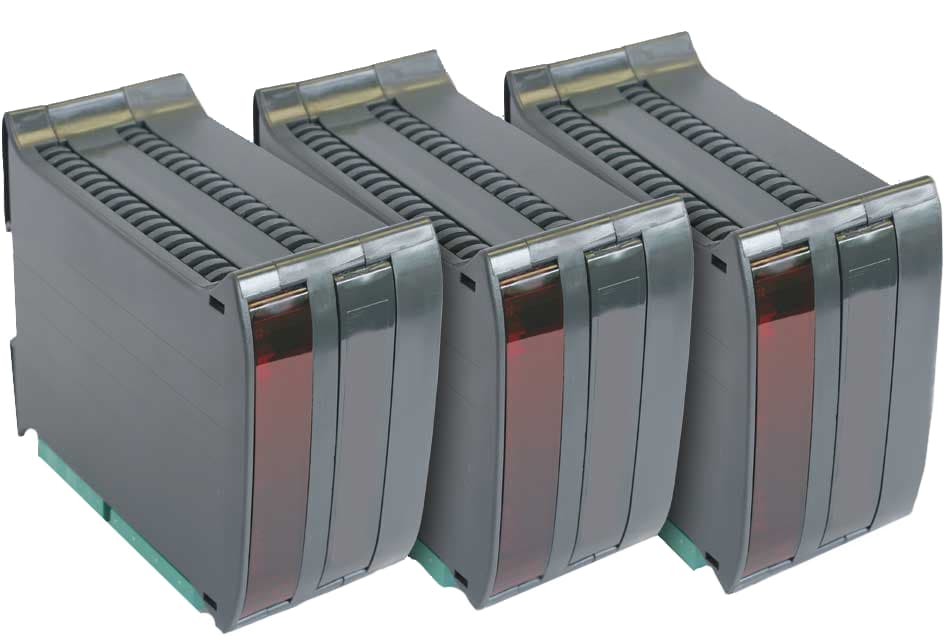

XLV Series
DC ControlFast response, linear DC motor speed controller for driving small low voltage brushed DC motors from 2A - 12A output power.
Description
The XLV Series provides 4Q motor control for low voltage DC motor applications. With 12V - 48VDC input, the XLV series provides 2Amps - 12Amps output. Designed for servo-type applications requiring excellent speed control, the XLV series can be controlled in speed or torque (current) control modes.
Features
Features
Fast-acting Current Control Loop
The XLV series is designed for precise speed control of small permanent magnet DC motors. Designed in a DIN-rail style package, the Drive allows for bi - or unipolar 0 - 10V speed / current reference. For highly dynamic applications, a shaft- mounted DC tacho-generator is recommended for speed feedback but in less demanding applications, armature voltage feedback (Avf) can be used.
Low Voltage Input
The XLV Series is a fast response, linear DC motor speed controller for driving small low voltage brushed DC motors from 2A - 12A output power. The XLV will motor and brake in both directions of rotation and operates from a single polarity supply, either battery or unregulated DC Source from 12 - 48VDC. Excellent performance allows the XLV series to meet the most demanding of applications. The extensive specification includes many standard features not normally associated with a drive the size and cost of the XLV.

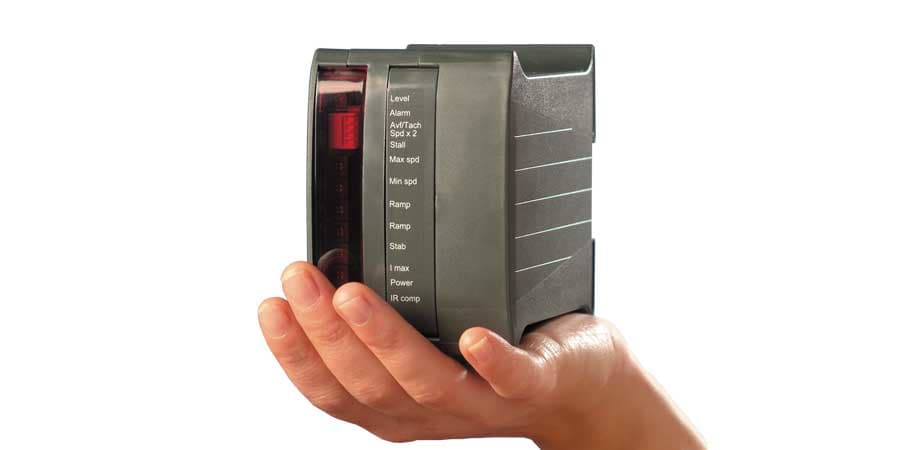

Compact & Easy to Install

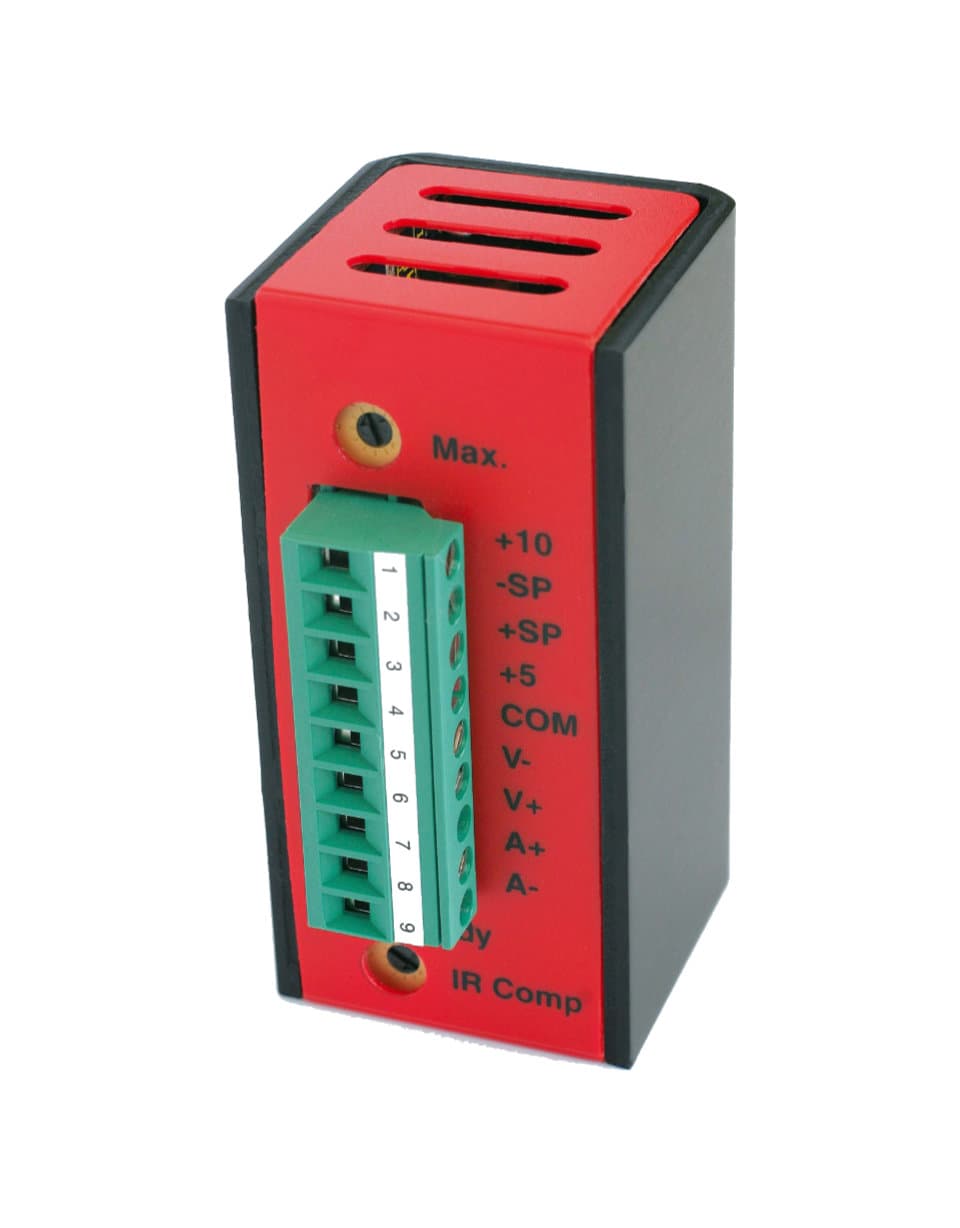

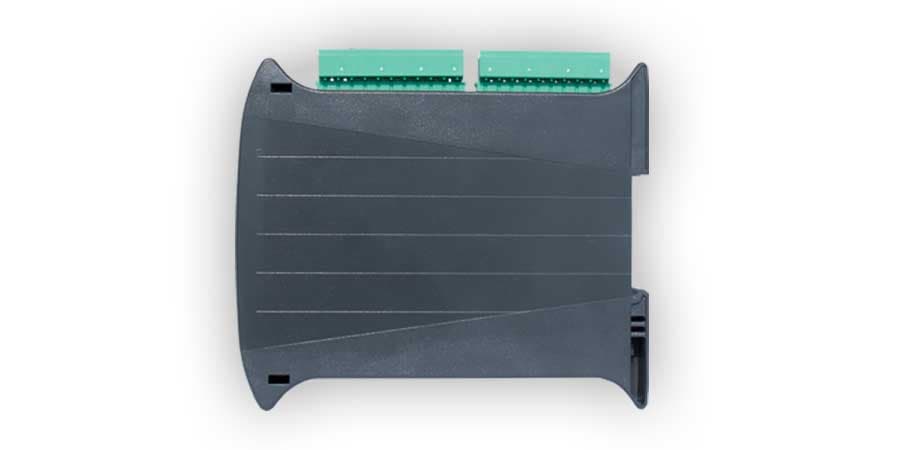

The compact design has plug in screw terminals and provision for back panel (200XLV) or DIN rail mounting. The XLV series is fully EMC compliant and CE marked.
Specifications
- Key Features
Motors and brakes in both directions
Ideal for small DC motors and linear actuators up to 48v
Fast response
DIN rail mounting (Panel/DIN rail mounting options for XLV)
200XLV has +/- 2A output, with 150% overload capability
4/8/1200XLV has 4/8/12A output, with 200% overload for one second with inverse time reduction to 100% in 5 seconds
Single polarity supply with wide supply voltage range up to 48v
Suitable for battery or standard unregulated DC supply
Precision references for ultra stable operation
+ve and -ve differential speed inputs
Built in thermal protection with resettable trip
Current limit protection 3 term PID control action
Armature or tach feedback operation
Position control facility Setpoint ramp facility
Plug on screw terminals for easy wiring
Adjustable IR compensation for improved AVF speed regulation
CE marked with excellent EMC compliance
Comprehensive manual with multi-applications data
High bandwidth with superbly linear output
Accepts bipolar or unipolar command inputs
Direction control by switch or centre zero pot
Easily interfaced for limit switch operation
Ideal for low inductance, printed motors
