Product Description
Description
The B-Series compact foot switches offer a small footprint in a long-lasting switch that's perfect for any application requiring a smaller size. The unit features a compact steel housing designed to minimize the footprint, yet still withstand the ruggedness of tough applications. Ideal for home or shop, tighter locations, pushbutton pedal, emergency vehicle foot switches (fire truck sirens and air horns, etc.), tattoo equipment, office environments, medical, dental, and more.
The B-Series is available in single and dual versions, as well as with an optional guard.
Compact size and weight allows use in the tightest of spots.
Has momentary action: press and hold to turn on, release to turn off.

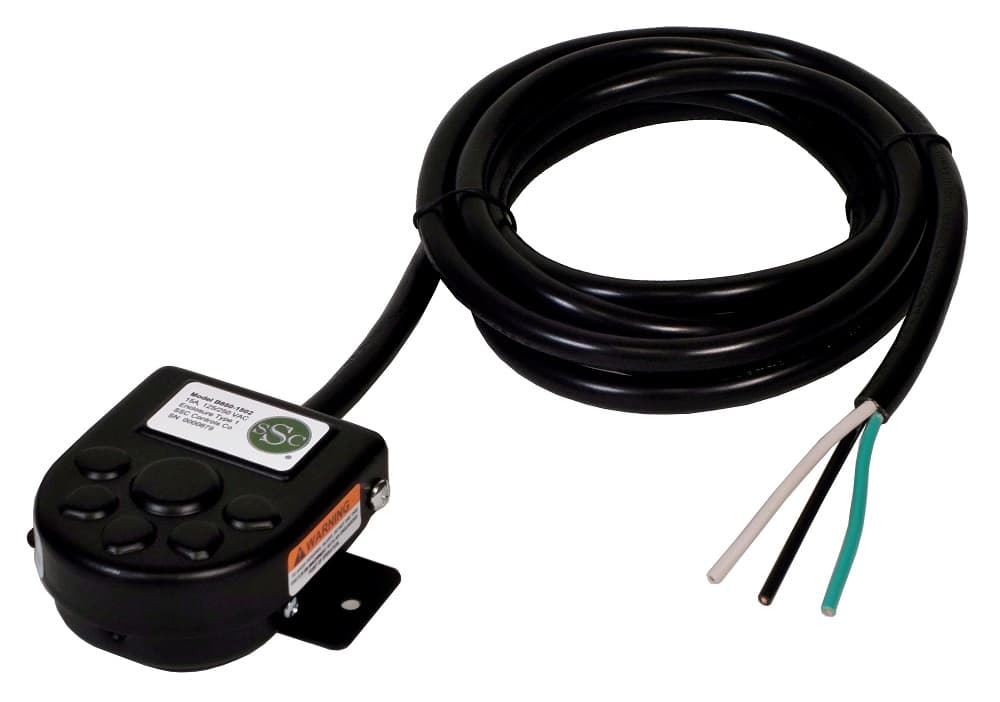

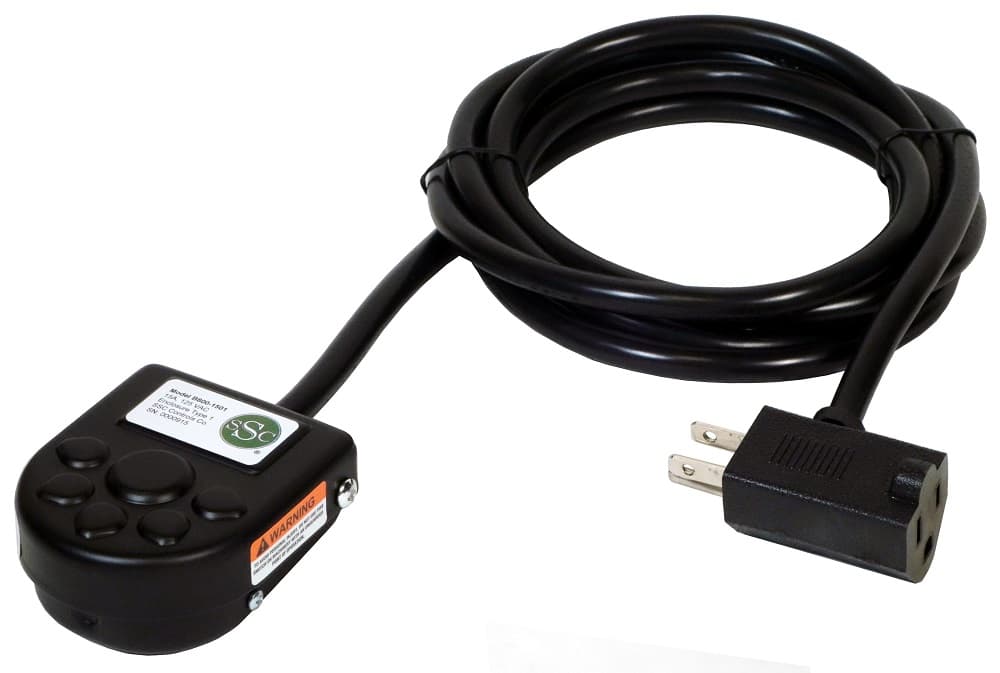

Available either pre-wired or user-installed wiring.
Durable steel housing with powder-paint finish for long-lasting performance.
B800 and B900 models have traction pads.
B850 and B950 models have a bracket with two mounting holes to secure to floor or equipment.
Enclosure rating: CSA/NEMA Type 1; IEC 60529 IP20.
CSA Certified and UL Listed.
Designed and manufactured under an ISO 9001 certified quality system.
Made in USA of US and imported components.
Highlights

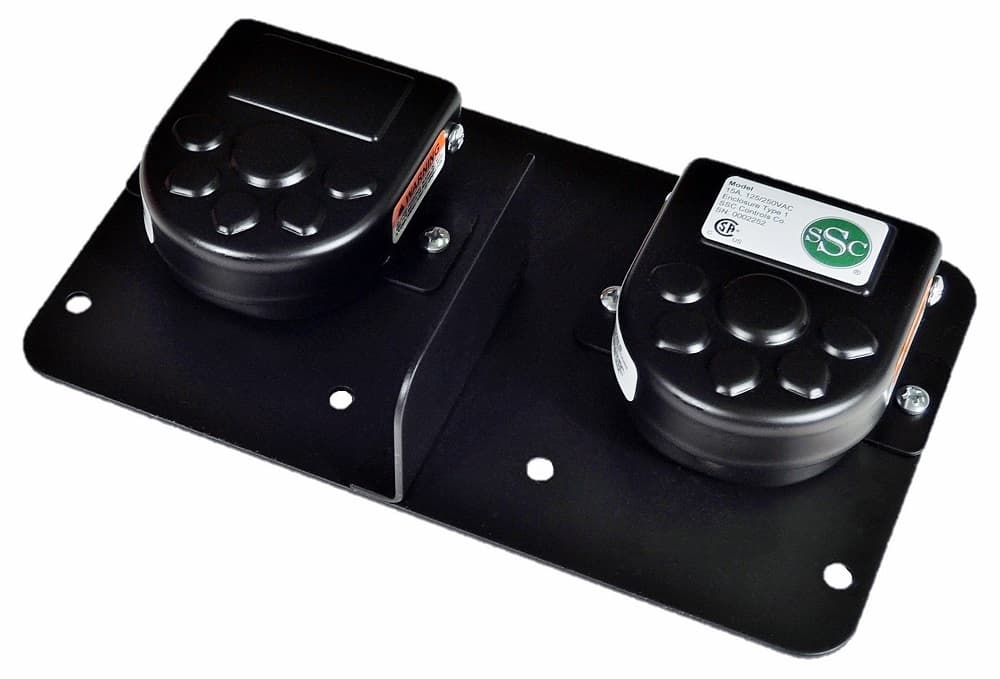

Dual-Pedal Models (DB Series)
The DB Series allows the combination of any two B-Series foot switches on a dual base, and comes with bumper feet as well as mounting holes to secure to the floor or equipment. Can be equipped with any combination of B850 and B950 foot switches with or without a guard.

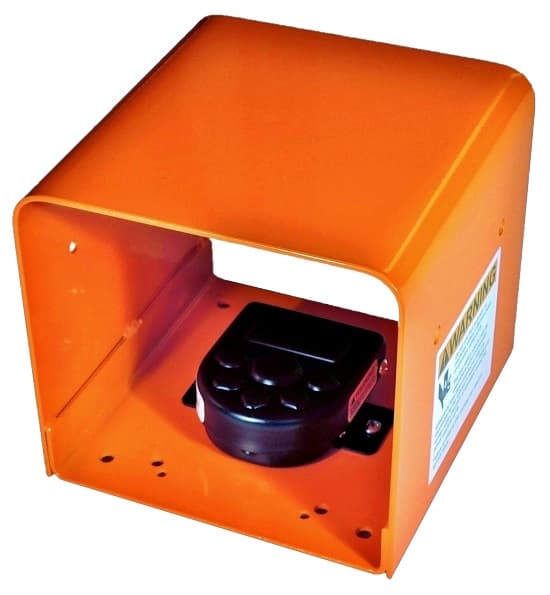

Single Guard Option
Single guard adds a durable 12-gauge steel housing. The guards provide a comfortable housing in which to locate the foot, as well as protect the switch from debris. Fits any B850 or B950 model (versions with the bracket).

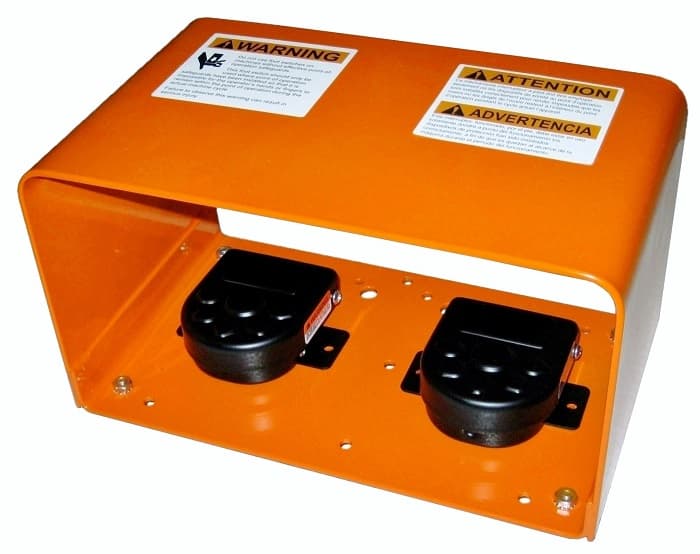

Dual Guard Option
Dual guard adds a durable 12-gauge steel housing. The guards provide a comfortable housing in which to locate the foot, as well as protect the switch from debris. Fits any B850 or B950 model (versions with the bracket).
