Product Description
Description

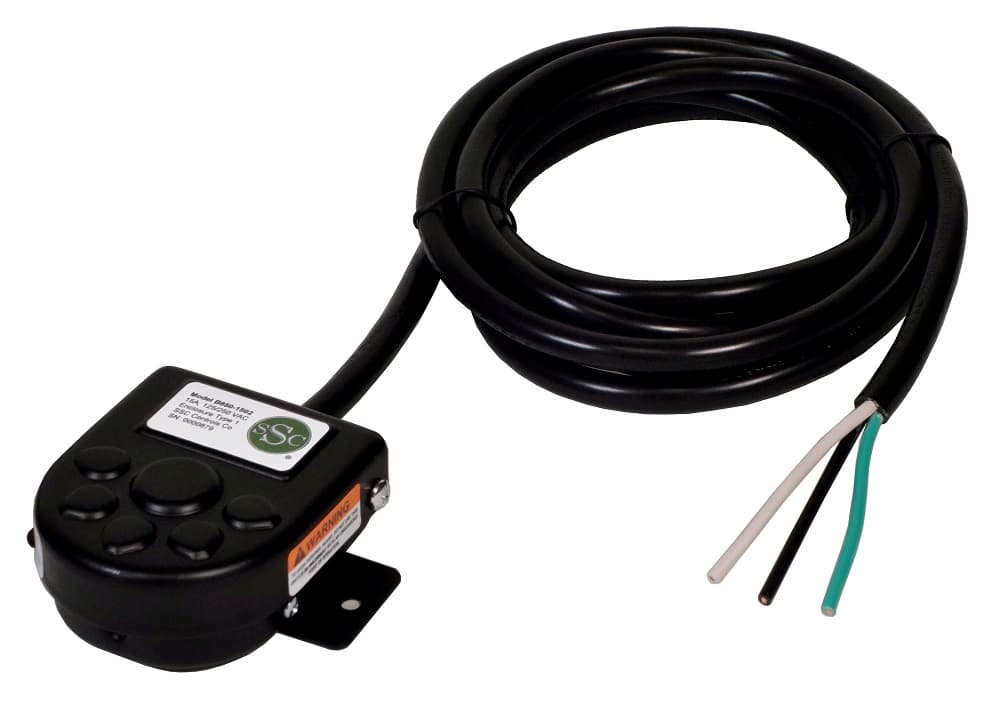

The B850-1502 is a compact foot switch for tight locations or pushbutton-style pedal action. Has simple “momentary” action: press and hold to turn on, release your foot to turn off. Features a mounting bracket to attach the unit firmly to the floor or equipment if needed. Consists of a 15-amp, 125/250 VAC-rated switch with an 8-foot cable and 3 leads to connect to your device: one ground, one common, and one wired normally open. Ideal for power tools, emergency vehicles (fire truck siren or air horn), office and communication equipment, and more.
Compact size and weight allows use in the tightest of spots.
Durable steel housing provides toughness and long life.
Mounting plate
Ideal for industrial, home, shop, office, or medical environments.
Quality system certified to ISO 9001 requirements.
CSA Certified and UL Listed to US and Canadian standards
Made in USA of imported and domestic components.
Highlights

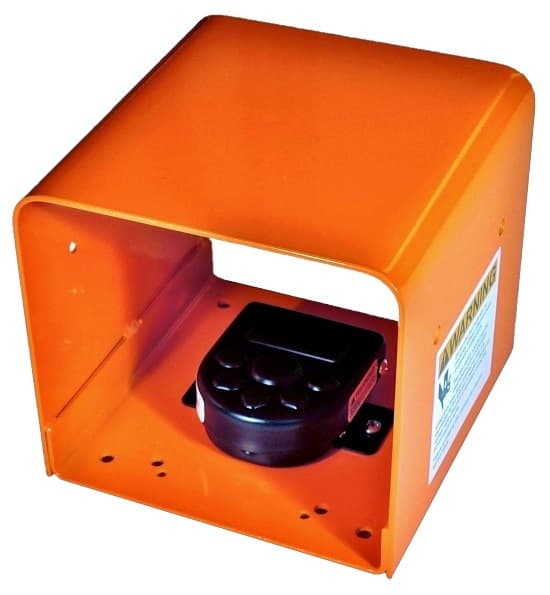

Single Guard Option
Single guard adds a durable 12-gauge steel housing. The guards provide a comfortable housing in which to locate the foot, as well as protect the switch from debris.

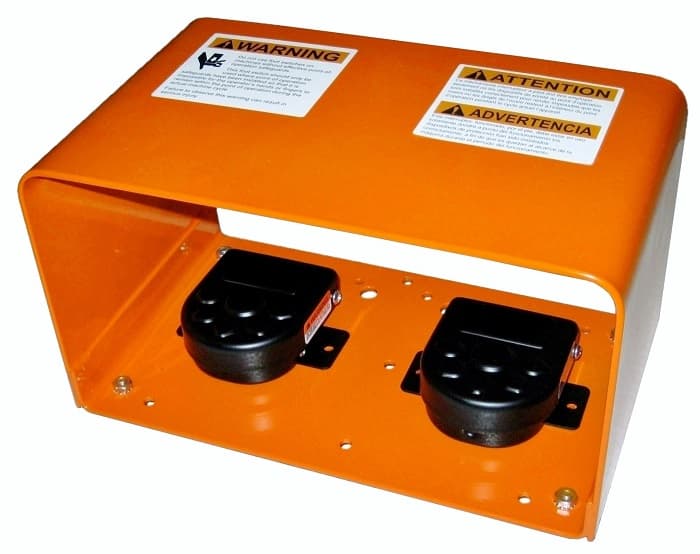

Dual Guard Option
Dual guard adds a durable 12-gauge steel housing. The guards provide a comfortable housing in which to locate the foot, as well as protect the switch from debris.
Specifications
- Action
Momentary
- Rating
15 A, ½ HP, 125/250 VAC; 0.1 A, 125 VDC
- Mounting
2-hole mounting plate
- Contacts
SPDT wired NO
- Cord
8 ft cable with leads
- Weight
0.5 lbs (0.2 kg) (without cable)
- Dimensions
3.0 x 2.6 x 1.2 in (7.62 x 6.6 x 3.0 cm)
- Enclosure Rating
UL/CSA/NEMA Type 1 and IEC 60529 IP20
For indoor use in dry environments.
- Certification
CSA Certified to US and Canadian standard
- Replaces
491-SC36MP
- Finish
Powder paint, black
