Product Description
Description

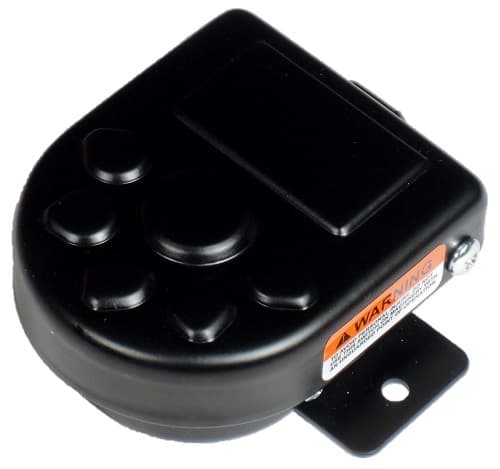

Compact foot switch for tight locations or pushbutton-style pedal action. Has simple “momentary” action: press and hold to turn on, release to turn off. Features a mounting bracket to attach the unit firmly to the floor or equipment if needed. This unit does not come with a cable. You will have to attach your own cable to this foot switch.
Compact size and weight allows use in the tightest of spots.
Durable steel housing provides toughness and long life.
Mounting plate
Ideal for industrial, home, shop, office, or medical environments.
Quality system certified to ISO 9001 requirements.
CSA Certified and UL Listed to US and Canadian standards
Made in USA of imported and domestic components.
Highlights
Single Guard Option
Single guard adds a durable 12-gauge steel housing. The guards provide a comfortable housing in which to locate the foot, as well as protect the switch from debris.
Dual Guard Option
Dual guard adds a durable 12-gauge steel housing. The guards provide a comfortable housing in which to locate the foot, as well as protect the switch from debris.
Specifications
- Action
Momentary
- Rating
20 A, 125/250 VAC; 1 HP, 125 VAC; 2 HP, 250 VAC; 10 A, 125 VAC “L”; .5 A, 125 VDC, .25 A, 250 VDC
- Mounting
2-hole mounting plate
- Contacts
SPDT wired NO
- Cord
Screw terminals
- Weight
0.5 lbs (0.2 kg)
- Dimensions
3.0 x 2.6 x 1.2 in (7.62 x 6.6 x 3.0 cm)
- Enclosure Rating
UL/CSA/NEMA Type 1 and IEC 60529 IP20
For indoor use in dry environments.
- Certification
CSA Certified to US and Canadian standard
- Finish
Powder paint, black
