Product Description

SSC Controls


Foot Switch

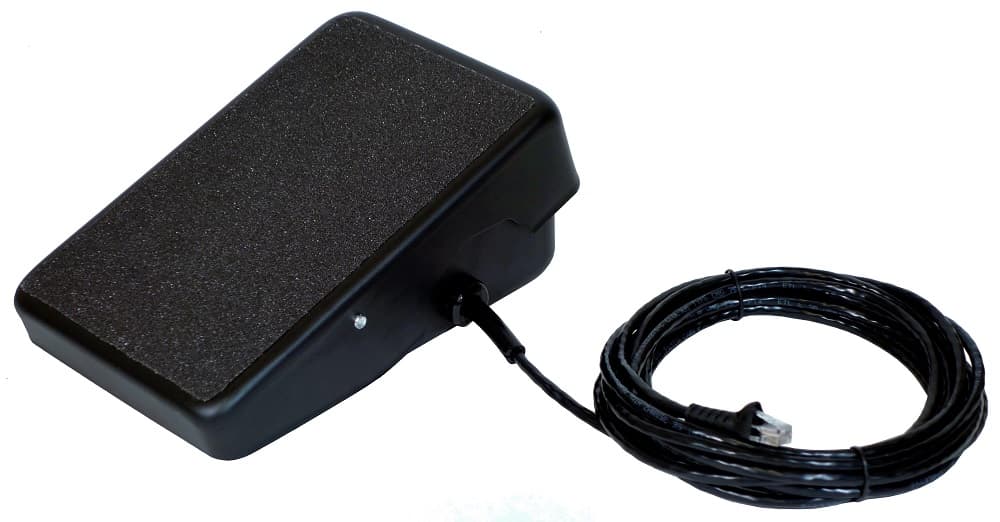

TIG foot control pedal for Miller (8 Pin)


The C810-0814 is designed for the Miller® Diversion 165, Diversion 180, and Hobart® EZ-TIG165i TIG welding machines. These rugged and dependable controls provide a tremendous value, and they feature our standard high-quality steel enclosure and precision components, as compared to the light-duty plastic foot control sold by Miller for these welders.

The design features a durable 16-gauge steel case, an oversized top traction area, non-slip traction pads, comfortable at-rest and operating positions, and precision components. Simply press the pedal to activate the gas contactor and increase current; release the pedal to turn off the weld output and activate the afterflow cycle. Includes a 14 ft. cable and 8-pin RJ-45 plug.

  • Patented design is tested to one million lifecycles.

  • Designed and manufactured under a quality system certified to ISO 9001 requirements.

  • Replaces Miller® RFCS-RJ45 (part number 300432) and Hobart p/n 245589.

  • Made in USA.



4.8 lbs (2.1 kg)


8.8 x 5.5 x 4.1 in (22.4 x 14.0 x 10.2 cm)


Powder paint, black
