Product Description

SSC Controls


Foot Switch

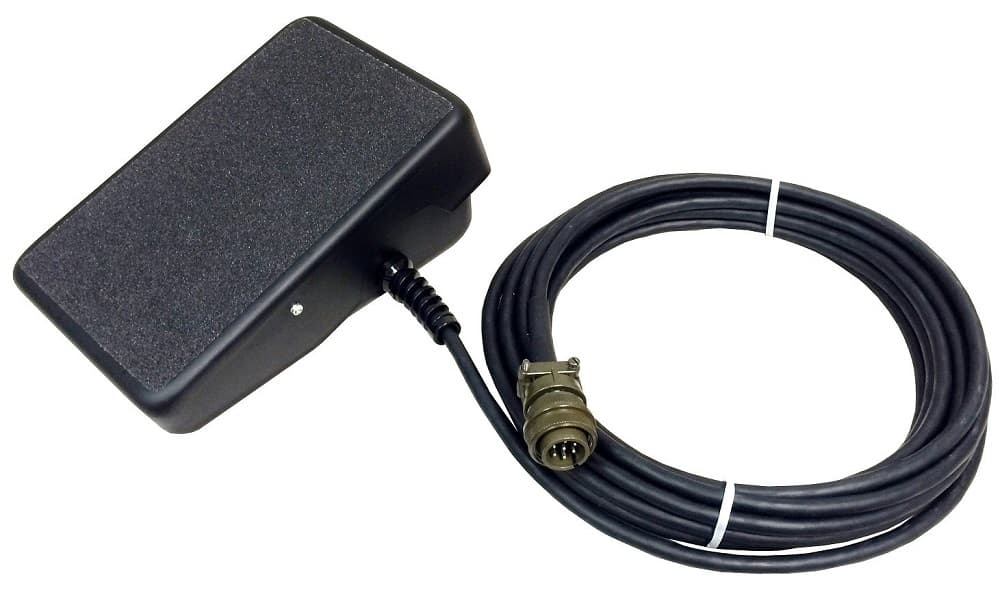

TIG welding foot control pedal for Forney


The C-Series TIG foot controls are dependable workhorses with high-performance characteristics. The C830-0725 is designed for use with Forney welders using the seven-pin plug on the foot pedal. Designed for the pro, these rugged and dependable controls provide a tremendous value.

The design features a durable 16-gauge steel case, an oversized top traction area, non-slip 3M® traction pads, comfortable at-rest and operating foot positions, heavy-duty cable, and high-precision components. Simply press the pedal to activate the gas contactor and increase current; release the pedal to turn off the weld output and activate the afterflow cycle. Includes a 25 ft. cable and 5-pin plug.

  • Patented design is tested to one million lifecycles.

  • Designed and manufactured under a quality system certified to ISO 9001 requirements.

  • For Forney welders with 7-pin plug and receptacle.

  • Made in USA.



6.1 lbs (2.8 kg)


8.8 x 5.5 x 4 in (22.4 x 14.0 x 10.2 cm)


Powder paint, black
