Product Description

SSC Controls


Foot Switch

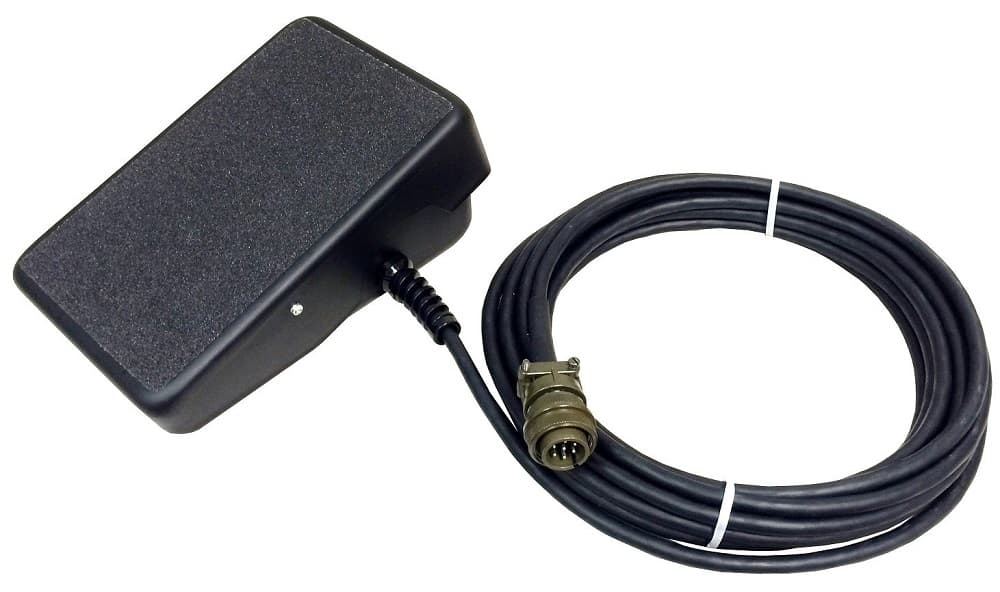

TIG welding foot control pedal for Cigweld (7 pin)


The C800 foot controls are dependable workhorses with high-performance characteristics. The C840-0725 is designed for Cigweld TIG welders with a 7-pin connector (like the Transarc 275). Replaces Cigweld p/n 646321.

The design features a durable 16-gauge steel case, an oversized top traction area, non-slip 3M® traction pads, comfortable at-rest and operating foot positions, heavy-duty cable, and high-precision components. Simply press the pedal to activate the gas contactor and increase current; release the pedal to turn off the weld output and activate the afterflow cycle. Includes a 25 ft. cable and 7-pin plug.

  • Patented design is tested to one million lifecycles.

  • Designed and manufactured under a quality system certified to ISO 9001 requirements.

  • For Cigweld 7-pin foot controls (p/n 646321).

  • Made in USA.



6.1 lbs (2.8 kg)


8.8 x 5.5 x 4 in (22.4 x 14.0 x 10.2 cm)


Powder paint, matte black
