SSC Controls


Foot Switch

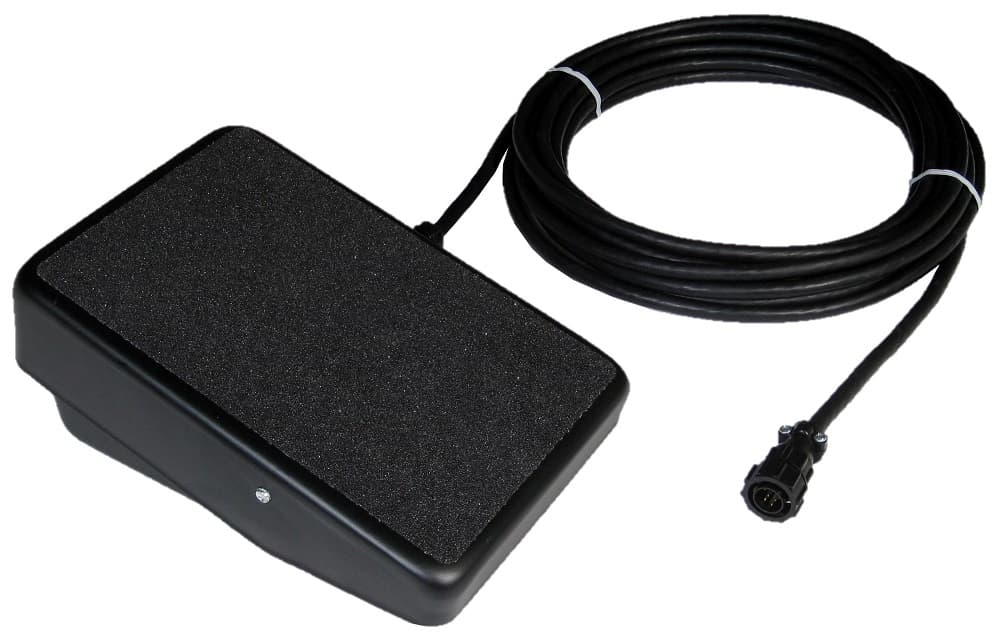

TIG welding foot control pedal for ESAB Rebel Series


The C800 foot controls are dependable workhorses with high-performance characteristics. The C850-0815X is designed for ESAB® Rebel multi-process machines (ESAB Rebel EMP 205ic AC/DC, EMP 215ic, EMP 235ic, and EMP 285ic TIG welders). Replaces ESAB® foot pedal part number W4014450.

The design features a tough 16-gauge steel case, oversized top traction area, non-slip 3M® traction pads, comfortable at-rest and operating foot positions, heavy-duty cable, and precision components. Simply press the pedal to activate the gas contactor and increase current; release the pedal to turn off the weld output and activate the afterflow cycle. Includes a 15 ft. cable and 8-pin plug, which mate to the power source.

  • Patented design is tested to one million lifecycles.

  • Designed and manufactured under a quality system certified to ISO 9001 requirements.

  • Replaces ESAB® part number W4014450 (for Rebel EMP welders).

  • Made in USA.



6.1 lbs (2.8 kg)


8.8 x 5.5 x 4 in (22.4 x 14.0 x 10.2 cm)


Powder paint, black
