Product Description

SSC Controls


Foot Switch

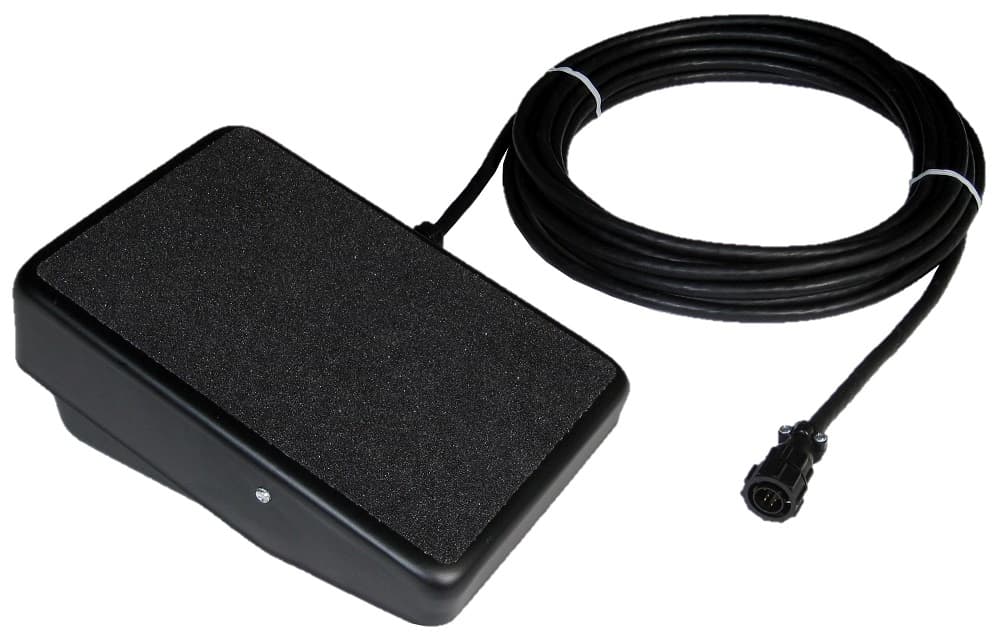

TIG welding foot control pedal for ESAB, Thermal Arc, Victor, Tweco, or Cigweld (8 pin)


The C800 foot controls are dependable workhorses with high-performance characteristics. The C850-0825 is designed for use with Thermal Arc® TIG welding machines which use the Thermal Arc® 10-4015 and 10-4016 foot controls. Designed for the pro, these rugged and dependable controls provide a tremendous value. They contain a patented design that improves low-current welding while providing classic arc control.

The design features a durable 16-gauge steel case, oversized top traction area, non-slip 3M® traction pads, comfortable at-rest and operating foot positions, heavy-duty cable, and precision components. Simply press the pedal to activate the gas contactor and increase current; release the pedal to turn off the weld output and activate the afterflow cycle. Includes a 25 ft. cable and 8-pin plug, which mate to the power source.

  • Patented design is tested to one million lifecycles.

  • Designed and manufactured under a quality system certified to ISO 9001 requirements.

  • Replaces Thermal Arc® part numbers 10-4015, 10-4016, and 600285.

  • Made in USA.



6.1 lbs (2.8 kg)


8.8 x 5.5 x 4 in (22.4 x 14.0 x 10.2 cm)


Powder paint, black
