Product Description

SSC Controls

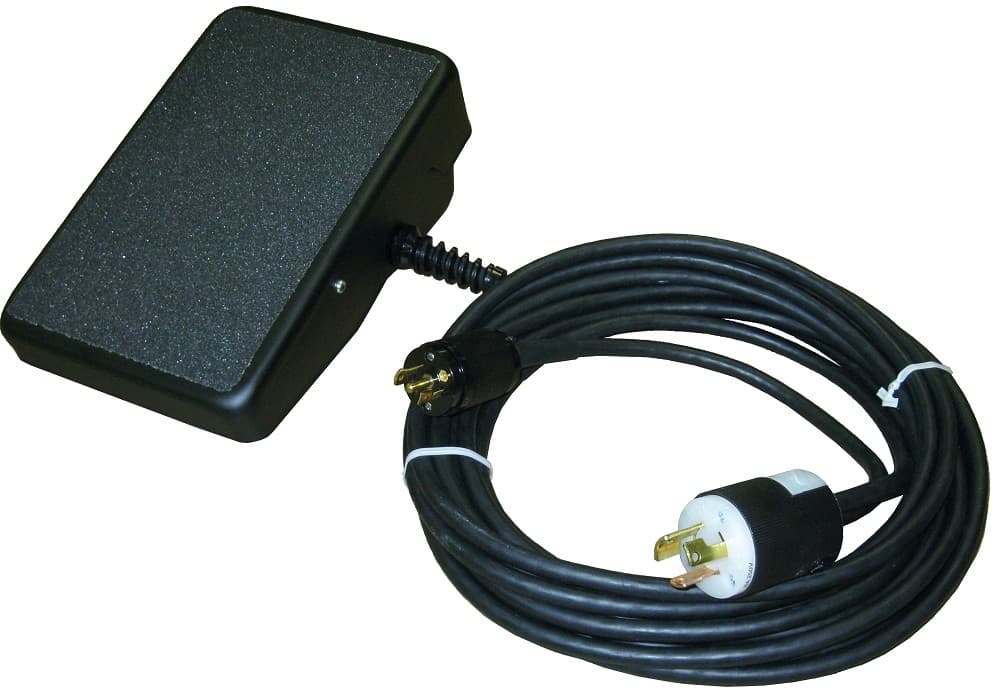

C890-0625

Foot Switch

TIG welding foot control pedal for Linde UCC-305

Description

The C890-0625 is designed for use with Linde® TIG welding machines which use dual plugs (replacing the Linde FC-4). The C890s are dependable workhorses with high-performance characteristics. Designed for the pro, these rugged and dependable controls provide a tremendous value.

The design features a tough 16-gauge steel case, oversized top traction area, non-slip traction pads, 25 ft. cable, and high-precision components which provide classic arc control. Simply press the pedal to activate the gas contactor and increase current; release the pedal to turn off the weld output and activate the afterflow cycle.

Features
  • Patented design is tested to one million lifecycles.

  • Designed and manufactured under a quality system certified to ISO 9001 requirements.

  • Replaces Linde® FC-4 remote controls which use dual plugs.

  • Made in USA

Specifications

Weight

6.1 lbs (2.8 kg)

Dimensions

8.8 x 5.5 x 4 in (22.4 x 14.0 x 10.2 cm)

Certification

CSA NRTL/C

Finish

Powder paint, black
