Product Description

SSC Controls

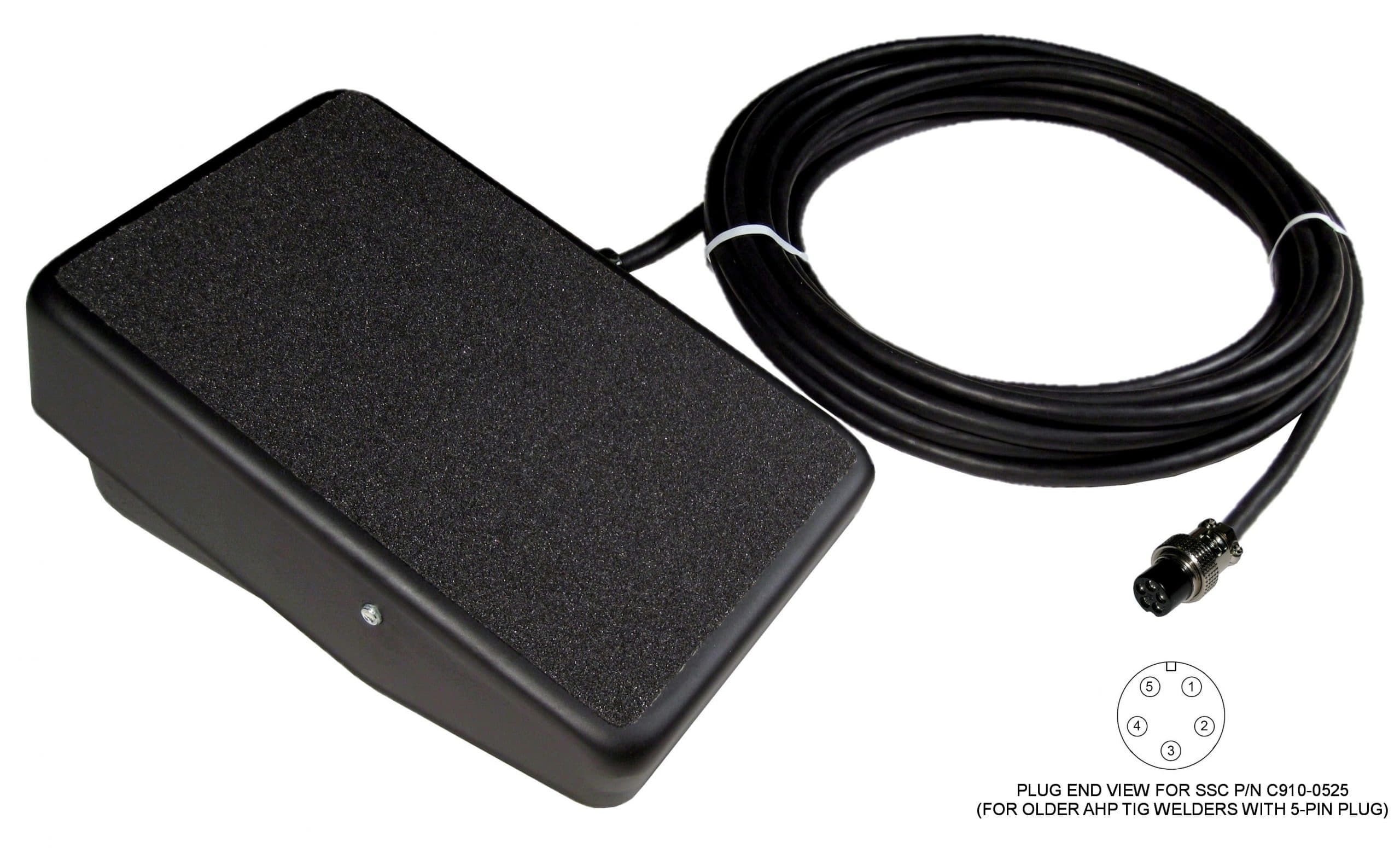

C910-0525

Foot Switch

TIG welding foot control pedal for older AHP TIG (5 pin)

Description

The C-Series TIG foot controls are dependable workhorses with high-performance characteristics. The C910-0525 is designed for use with AHP TIG welding machines with the 5-pin plug and 10,000 ohm potentiometer. Designed for the pro, these rugged and dependable controls provide a tremendous value.

The design features a durable 16-gauge steel case, an oversized top traction area, non-slip 3M® traction pads, comfortable at-rest and operating foot positions, heavy-duty cable, and high-precision components. Simply press the pedal to activate the gas contactor and increase current; release the pedal to turn off the weld output and activate the afterflow cycle. Includes a 25 ft. cable and 5-pin plug.

Features
  • Patented design is tested to one million lifecycles.

  • Designed and manufactured under a quality system certified to ISO 9001 requirements.

  • For AHP TIG welders with a 5-pin plug and 10,000-ohm potentiometer (usually older units).

  • Made in USA

Specifications

Weight

6.1 lbs (2.8 kg)

Dimensions

8.8 x 5.5 x 4 in (22.4 x 14.0 x 10.2 cm)

Certification

CSA NRTL/C

Finish

Powder paint, black
