Description

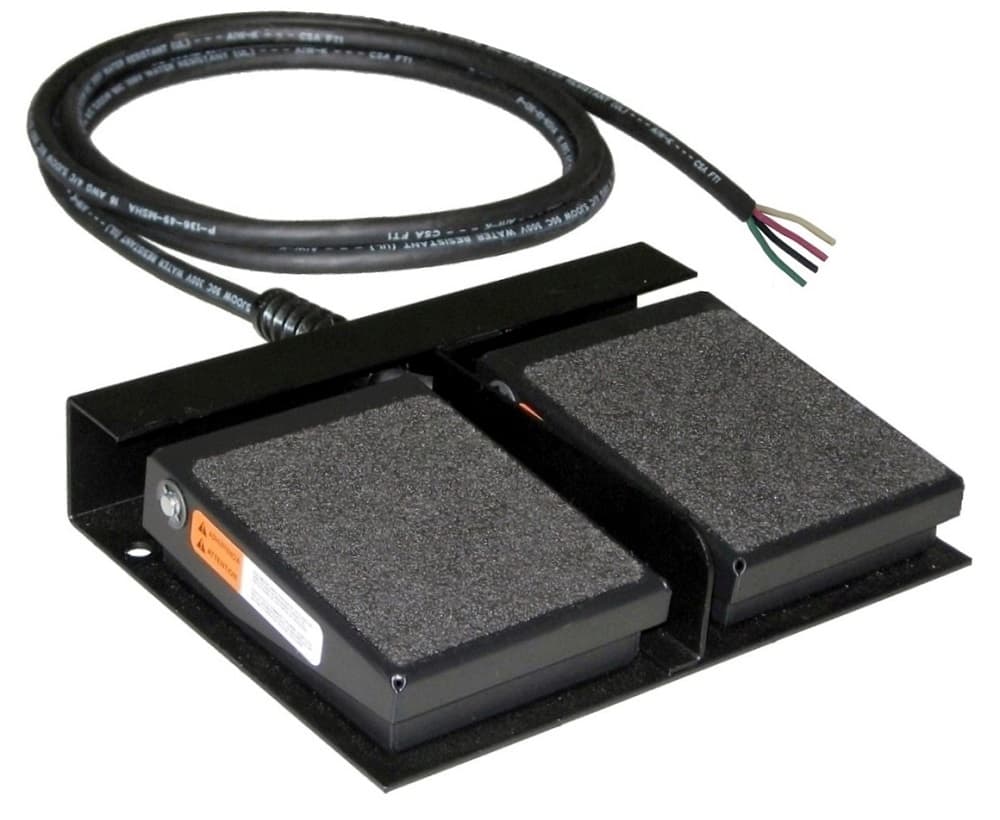

The DS100 is a dual foot switch with one pedal on each side that is attached to a metal base plate with rubber bumper feet. It comes pre-wired with both pedals wired together with a single cable exiting the unit. Each pedal has momentary action and is wired normally open (NO), which means that it actuates when your foot is on the pedal, and de-actuates when you release your foot from the pedal.
Electrically, the switch on each side is rated 13 amps @ 125/250 VAC. The cable is 8 feet long and is 16 gauge / 4 conductor (16/4) cord, with one wire common to both switches, one wire for the left side, one wire for the right side, and one ground wire (consult an electrician if you are unsure how to connect the wiring).
The foot switches are wired so both switches cannot be operated at the same time (neither will work if both are pressed). Also includes a pigtail strain relief to reduce cable fatigue at the entry port, a powder-painted finish, and a low profile to reduce operator fatigue. Ideal for applications involving forward/reverse, up/down, twin pedal, and many more.
This model does not have a guard (see DS100-DG if you need the guarded version).
Equipped with two S100 foot switches wired together with a single cable.
Unit is wired so both switches cannot be operated at the same time (neither will work if both are pressed).
Ideal for applications involving forward/reverse or up/down, such as lift tables and pipe rollers.
Durable steel base with powder-painted finish.
Heavy-duty cable with flexible strain relief.
Non-slip traction pads and bumper feet.
ISO 9001 quality system certified.
CSA Certified and UL Listed to US and Canadian standards
Made in USA of foreign and domestic content.
Highlights
Optional Guard (DS100-DG)

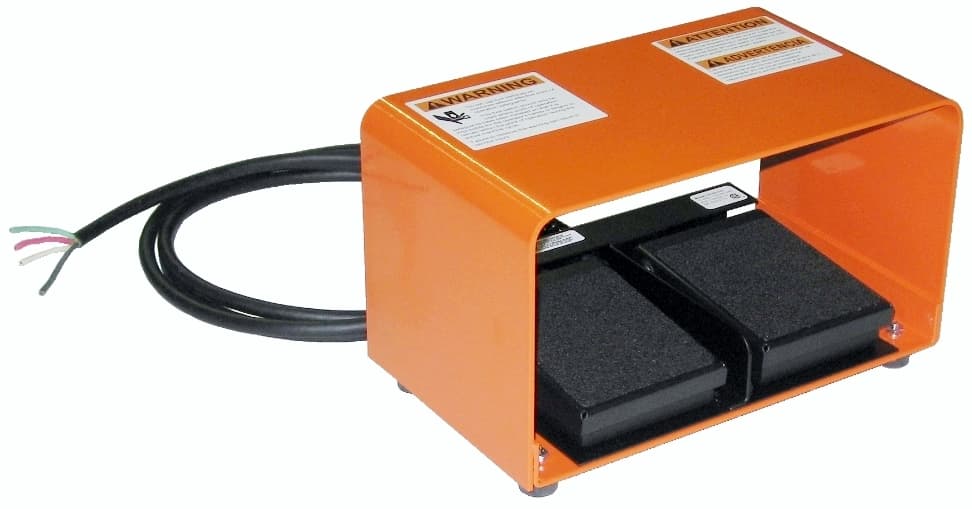

The guard provides a tough powder-painted steel cover for the DS100 foot switch. The unit includes the foot switch enclosed in a tough 12-gauge steel guard. The guard provides a comfortable housing in which to locate the foot, as well as to protect the switch from debris.
Specifications
- Action
Momentary
- Rating
13 A, 125/250 VAC
- Cord
8 ft cable with leads
- Weight
5.1 lbs (2.3 kg)
- Dimensions
8.0 x 5.9 x 1.7 in (20.3 x 15.0 x 4.3 cm)
- Certification
CSA Certified and UL Listed to US and Canadian standards
- Enclosure Rating
CSA/NEMA Type 1 and IEC 60529 IP20
- Finish
Powder paint, black
