Product Description

SSC Controls


Foot Switch

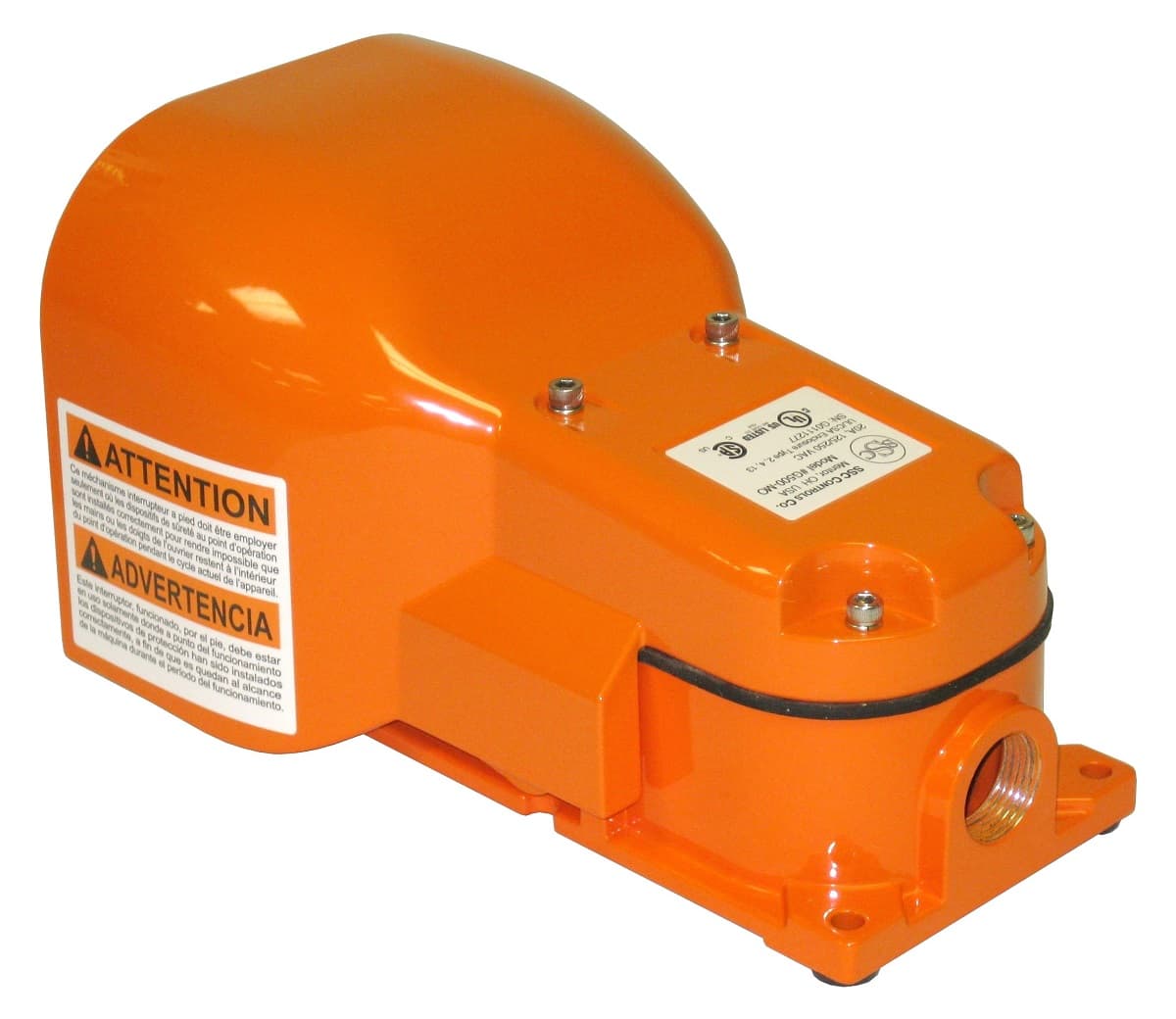

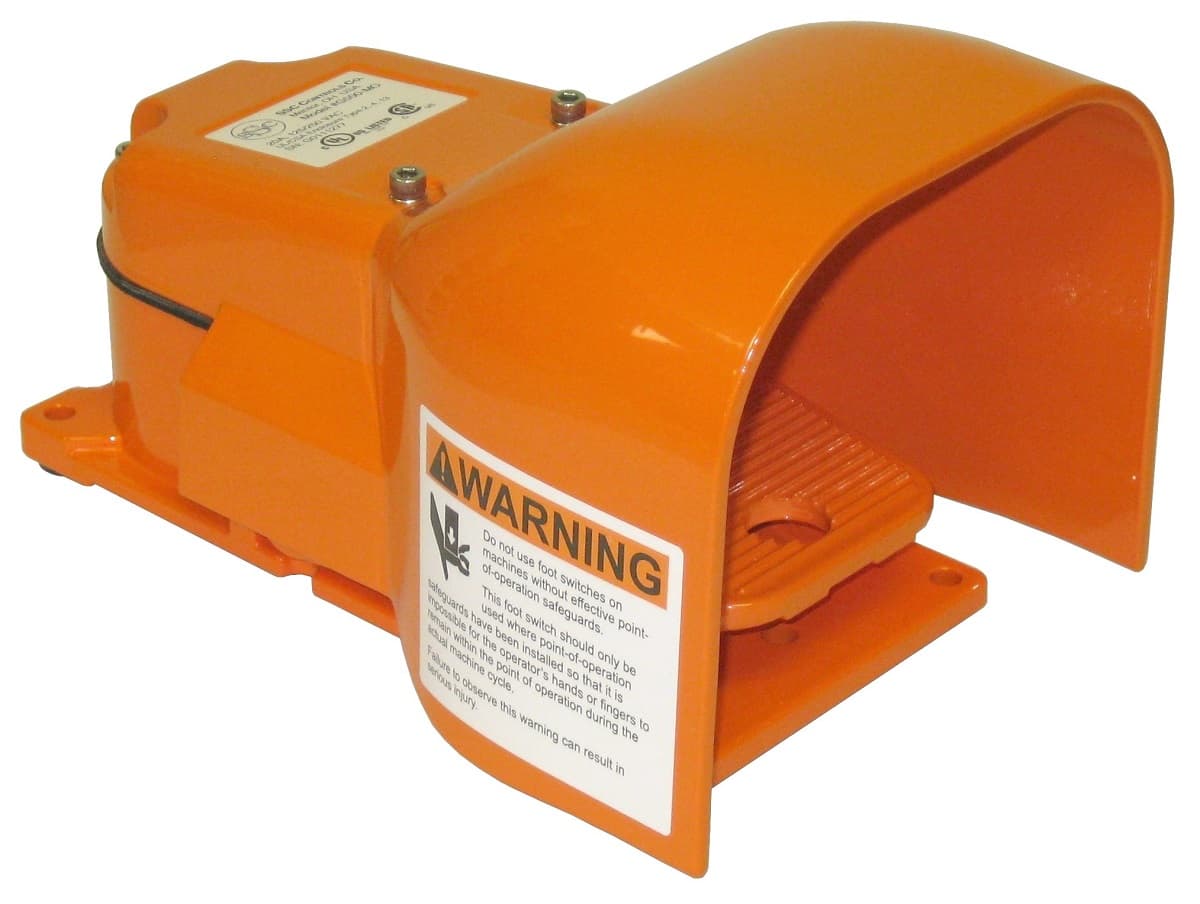

Heavy-duty foot switch


The G500-MO is a heavy-duty foot switch that makes it easy to turn electrical equipment on and off with the foot, freeing the hands to perform other operations or providing ergonomic improvement to a workstation.

Features all aluminum construction, an oversized guard (5.5” high, 6.2″ wide) with enough room to fit large boots, and an oil/water/splash/dust-resistant enclosure (when used with the proper cable clamp). This is a momentary foot switch, which means that it actuates when your foot is on the pedal, and de-actuates when you release your foot from the pedal. Includes a single Honeywell 20-amp 125/250VAC-rated switch with one common, one normally open, and one normally closed contact (SPDT, Form C). Side cover flaps help protect pedal lever and shaft from oil, solvents, and water. 3/4″-14 N.P.T. threaded conduit entry in back.

Ideal for factory, shop, metalworking, iron workers, boom lifts, food processing, riveting, bending, and many more applications. Directly replaces Hercules 531-SWH and SWHOX models.

  • Heavy-duty all-aluminum construction for industrial environments.

  • 20 amp @ 125/250 VAC Honeywell® switches.

  • Guard opening sized to fit even large boot sizes.

  • Powder-painted Safety Orange finish.

  • 3/4"-14 N.P.T. threaded conduit entry.

  • 3 or 4-point mounting with optional 3M® bumper feet.

  • Suitable for indoor or outdoor use when properly connected.

  • Form C circuitry (SPDT) is standard.

  • Designed and manufactured under a quality system certified to ISO 9001 requirements.

  • Made in USA of imported and domestic components.





No. Switches


No. Stages



20A, 1HP, 125/250 VAC; .5A, 125VDC; .25A, 250VDC


SPDT w/ screw terminals


5 lbs (2.3 kg)


9.2 x 6.2 x 5.5 in (23.4 x 15.7 x 14 cm)

Enclosure Rating

IP-56; UL/CSA/NEMA Type 2, 4, 13


CSA Certified to US and Canadian standard


Powder paint, safety orange

Cross Reference

531-SWH Hercules; 9002AW2 (add double break switch); Grainger® 6GPC1; Allied 70184026; McMaster-Carr® 7372K11 or 7372K31
