Product Description
Description

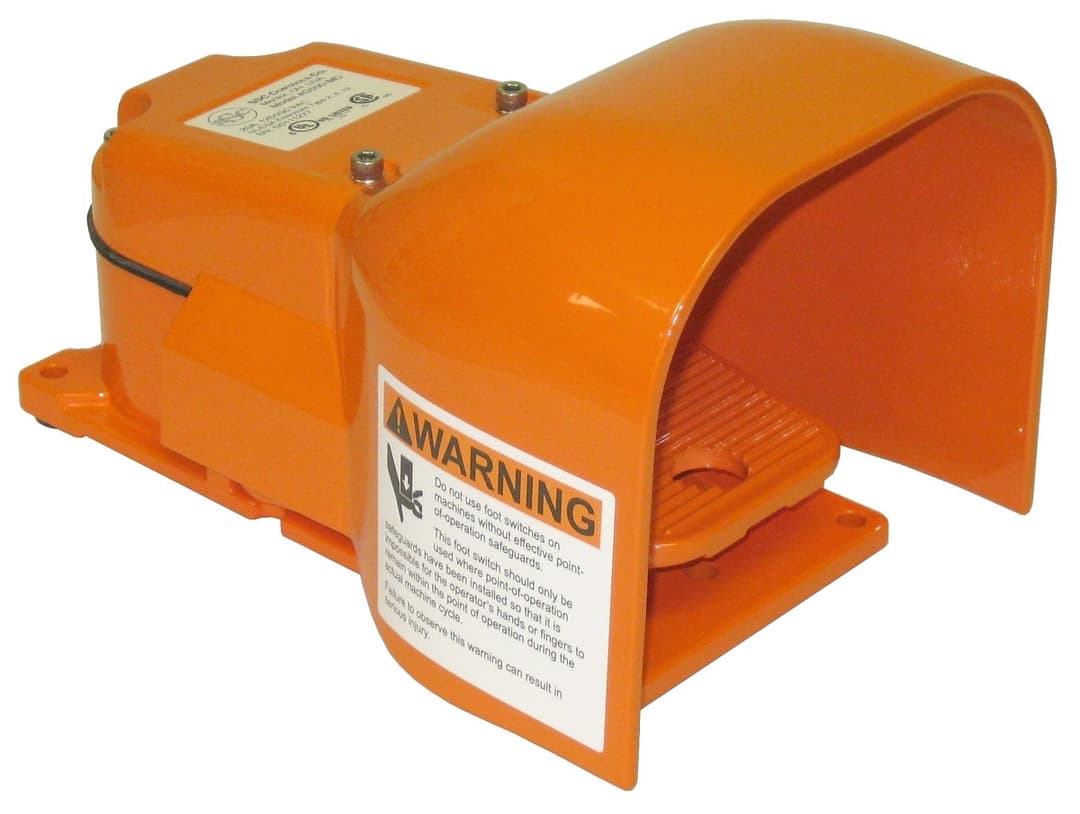

The G502-AT is a heavy-duty foot switch for tough industrial, factory, and shop applications. Includes oversized guard, rugged housing, and precision Honeywell switches. This foot switch has an anti-trip pedal action, meaning the user must press forward a latch inside the hood before pressing down on the pedal to turn it on, which provides an additional measure of safety by reducing accidental activation. These units then have a momentary action; the user must keep the pedal pressed down in order to keep it on.
Heavy-duty all-aluminum construction for industrial environments.
20 amp @ 125/250 VAC Honeywell® switches.
Switches may be adjusted as DPDT or as two SPDT switches activating separately.
Guard opening sized to fit even large boot sizes.
Powder-painted Safety Orange finish.
3/4"-14 N.P.T. threaded conduit entry.
3 or 4-point mounting with optional 3M® bumper feet.
Suitable for indoor or outdoor use when properly connected.
Designed and manufactured under a quality system certified to ISO 9001 requirements.
Made in USA of imported and domestic components.
Options
Specifications
- Action
Anti-trip
- No. Switches
2
- No. Stages
1
- Rating
20A, 1HP, 125/250 VAC; .5A, 125VDC; .25A, 250VDC
- Contacts
DPDT
- Weight
5 lbs (2.3 kg)
- Dimensions
9.2 x 6.2 x 5.5 in (23.4 x 15.7 x 14 cm)
- Enclosure Rating
IP-56; UL/CSA/NEMA Type 2, 4, 13
- Certification
CSA Certified to US and Canadian standard
- Finish
Powder paint, safety orange
- Cross Reference
511-B2, 511-B2O, 511-B2OX; 511-B2G, 511-B2OXG, 6GPE7 (if ordered with Front Gate option)
