Product Description
Description

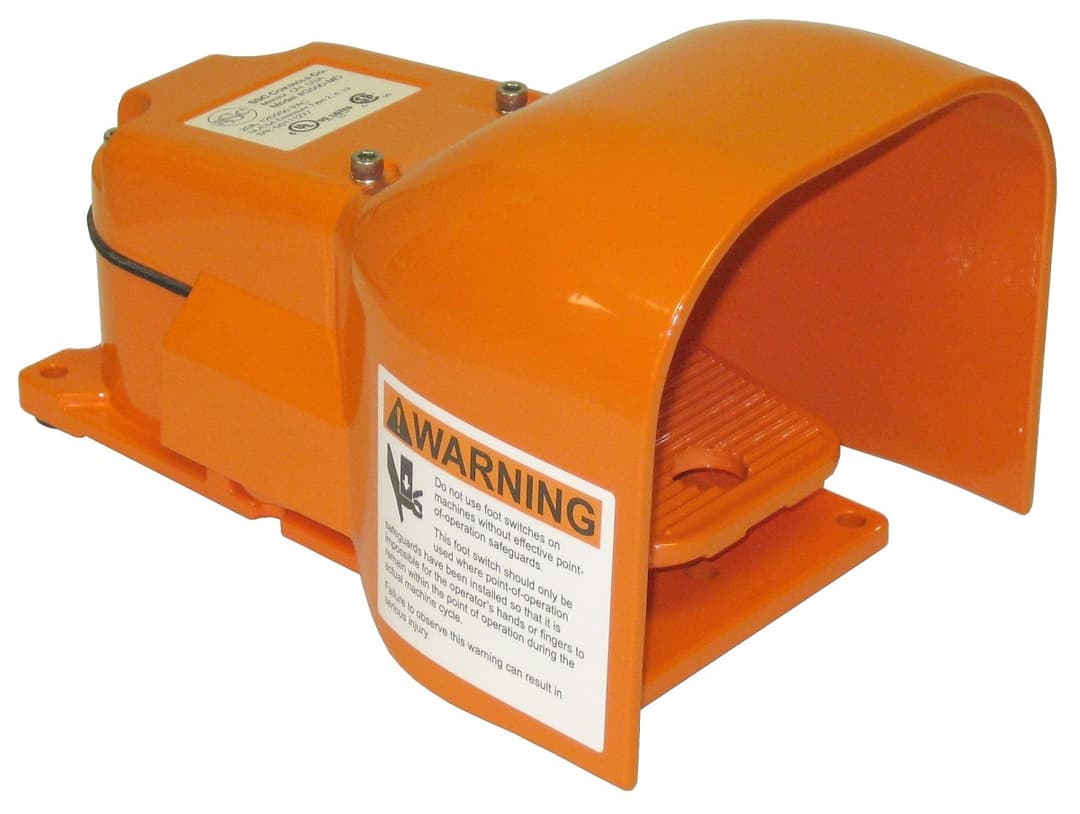

The G504-AT is a heavy-duty foot switch for tough industrial, factory, and shop applications. Includes oversized guard, rugged housing, and precision Honeywell switches. This foot switch has an anti-trip pedal action, meaning the user must press forward a latch inside the hood before pressing down on the pedal to turn it on, which provides an additional measure of safety by reducing accidental activation. These units then have a momentary action; the user must keep the pedal pressed down in order to keep it on.
Ideal for controlling up to four independent circuits.
Consists of two switches, each with DPDT circuitry.
Each circuit is rated 10 amps @ 125/250 VAC.
Can be set so both switches go off at the same time, or so the
first two activate before the second two.
3/4"-14 N.P.T. threaded conduit entry.
Standard G-Series features including oversized guard and
rugged construction that will not break when dropped.
Quality system certified to ISO 9001.
Made in USA of imported and domestic components.
Options
Specifications
- Action
Anti-trip
- No. Switches
2
- No. Stages
1
- Rating
125/250 VAC; 1/8 HP, 125 VAC; 1/4 HP, 250 VAC; 0.5A, 125 VDC; 0.25A, 250 VDC
- Contacts
DPDT each switch
- Weight
5 lbs (2.3 kg)
- Dimensions
9.2 x 6.2 x 5.5 in (23.4 x 15.7 x 14 cm)
- Enclosure Rating
IP-56; UL/CSA/NEMA Type 2, 4, 13
- Certification
CSA Certified to US and Canadian standard
- Finish
Powder paint, safety orange
